FTTH Fiber Optic Distribution IP65 Box With Wall/Pole Method
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution... etc all in one.
Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

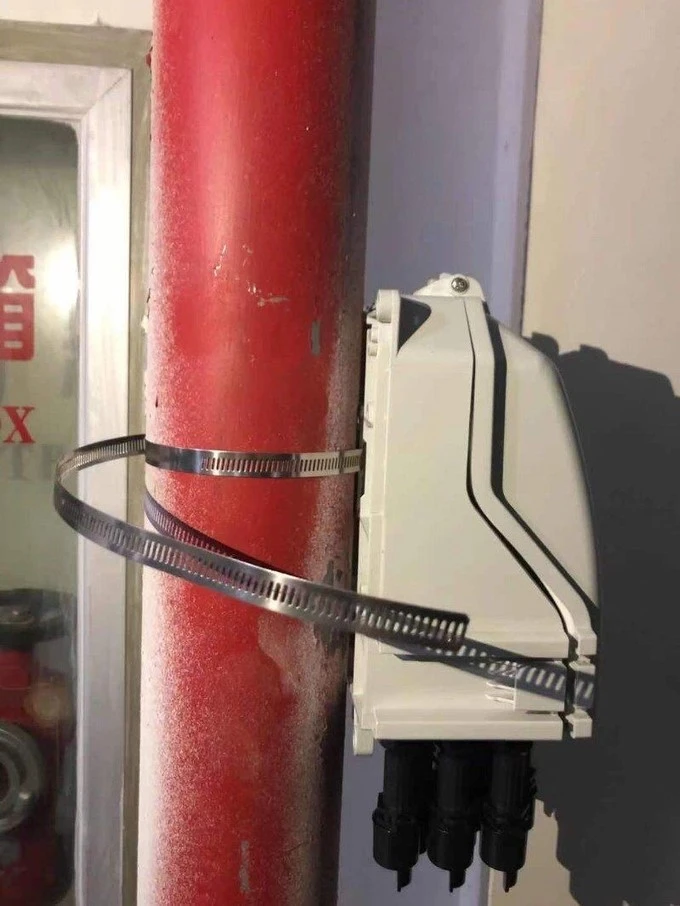

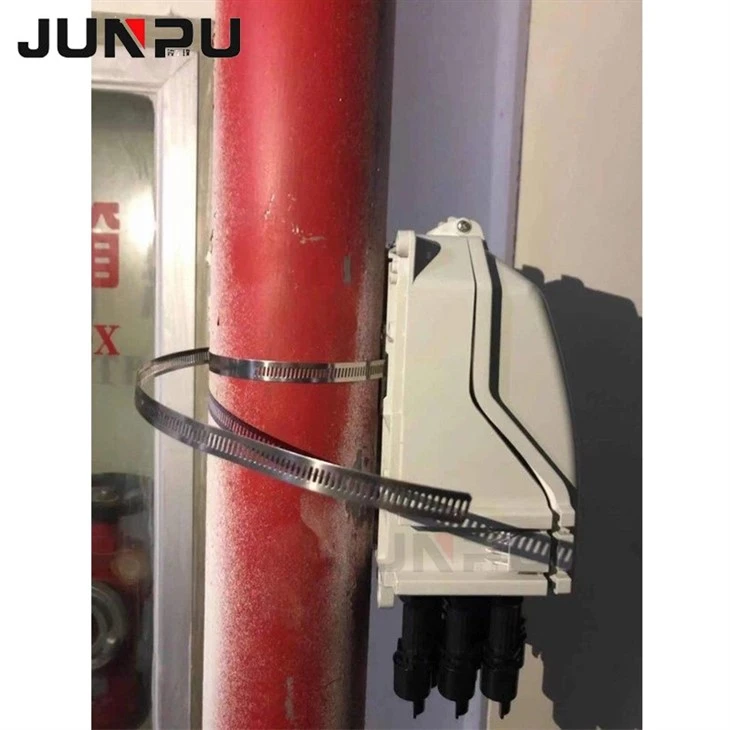

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

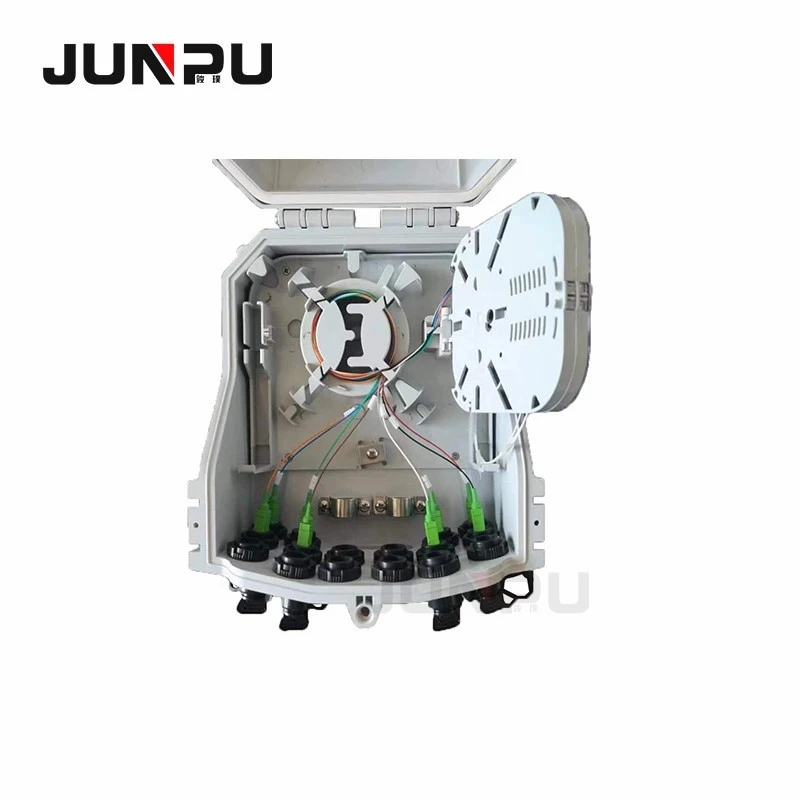

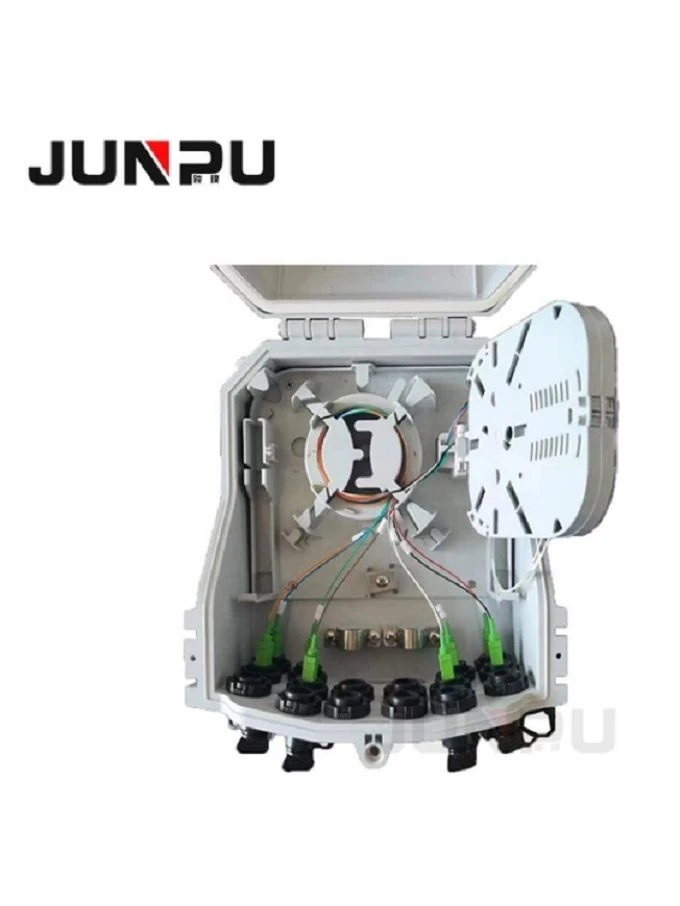

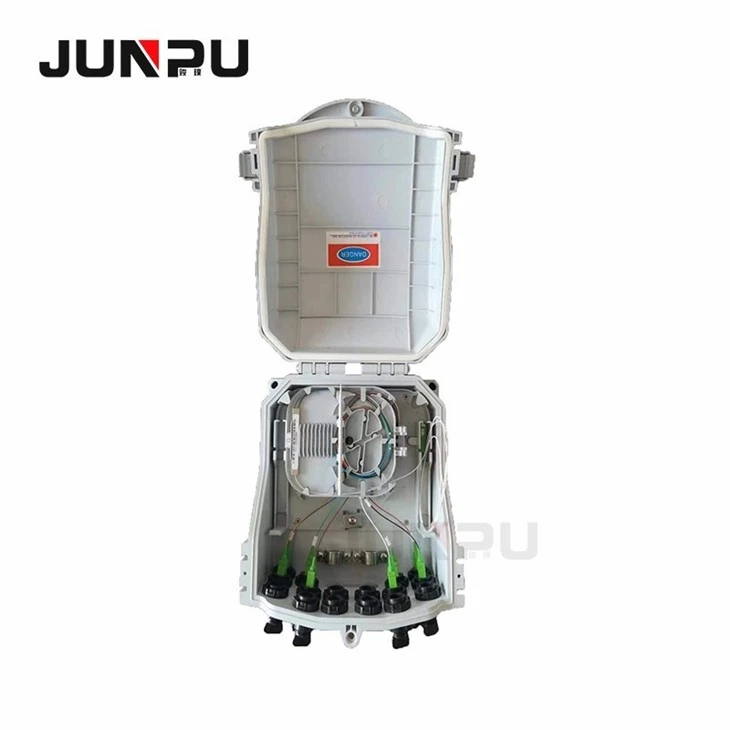

Wall Method Optic Distribution Box acts as a centralized solution for incoming fiber optic cables, allowing for the splicing, winding, storage, and distribution of optical fibers.
Independent Fiber Wiring: The fiber optic terminal box ensures separate wiring of cables, pigtails, and patch cords, minimizing interference between them.
IP65: This fiber optic distribution box has an IP65 rating, which is waterproof and dustproof to provide optimal performance.
Sturdy Construction: The fiber optic connector tray is made of ABS material, which can age and ensure long-lasting durability.
Wall Mount: This fiber optic distribution box is designed for wall mounting and is suitable for indoor and outdoor use. Its user-friendly design ensures easy installation and maintenance.
Specification
1.Environmental requirement
Working temperature:-40℃~+85℃
2.Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
Main technical datasheet
Insertion loss:≤0.15dB
UPC return loss:≥50dB
APC return loss:≥60dB
3.Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2*104MΩ/500V(DC);IR≥2*104MΩ/500V
The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
Detailed Images
