Optic Distribution Frame
What Is Optic Distribution Frame
Optic Distribution Frame (ODF) is a device that provides a centralized distribution point for optical fibers in a communication network. It typically comprises of a metal or plastic enclosure that houses fiber optic cables and adapter panels to facilitate the interconnection of fiber optic cables. ODF allows for easy management of fiber optic cables, terminations, splices, and connections in a single location. It is commonly used in telecommunications and data center environments to provide easy access to fiber optic cabling infrastructure.
Advantages of Optic Distribution Frame
Improved Organization: An Optic Distribution Frame (ODF) enables better organization of the optic fibers and connections. This can make it easier for technicians to manage, maintain and troubleshoot fiber optic networks.
Enhanced Flexibility: ODFs come in different sizes and configurations, with different types of connectors, making them highly flexible. Installing a universal ODF with a wide range of connectors makes it easier to swap out or add new devices without downtime.
Improved Accessibility: With devices like splice trays, patch panels, connector panels, and cassettes, an ODF can make it easier to access the fiber optic cable connections for inspection, maintenance, and testing.
Increased Security: An ODF can make it easier to manage the security of sensitive data by providing physical access controls, such as locks, and traceability of connections, patches, and splices.
Facilitates Troubleshooting: The ODF provides documentation for connections and fiber paths in the network, helping to isolate and locate faults that may occur in the network.
Increases Reliability: By using the ODF, one can increase the reliability of fiber optics networks by reducing the risks of damage or contamination to fibers during handling, connections, and splicing.
Why Choose Us
Professional team
Professional sales team and engineer team provide professional technical Support,Test video and Sample support
Advanced Equipment
Equipment based on the latest technological developments has higher efficiency, better performance and stronger reliability.
One-stop Solution
With rich experience and one-to-one service,we can help you choose products and answer technical questions.
Innovation
We are dedicated to improving our systems continually, ensuring that the technology we offer is always cutting edge.
High Quality
Our products are manufactured or executed to very high standards, using the finest materials and manufacturing processes.
Competitive Price
We have professional sourcing team and cost accounting team, stive to reduce cost and profit and provide you a good price.
Different Types of Optical Distribution Frames (ODFs)
Based on their structure, ODFs are classified into three main categories: Wall mount ODF, Floor mount ODF, and Rack mount ODF.
Typically designed like a small box, a wall mount ODF is mounted onto a wall. This type of ODF is ideal for managing small counts of fiber distribution. Despite its compact size, a wall mount ODF offers an excellent blend of utility and space conservation.Floor Mount ODF
Floor mount ODF features a closed structure design, making it an aesthetically pleasing option for managing fiber optics. While its fiber capacity is relatively fixed, it can effectively handle a more significant number of fiber connections compared to the wall mount ODF.

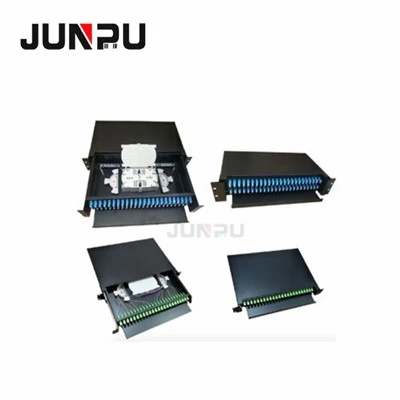

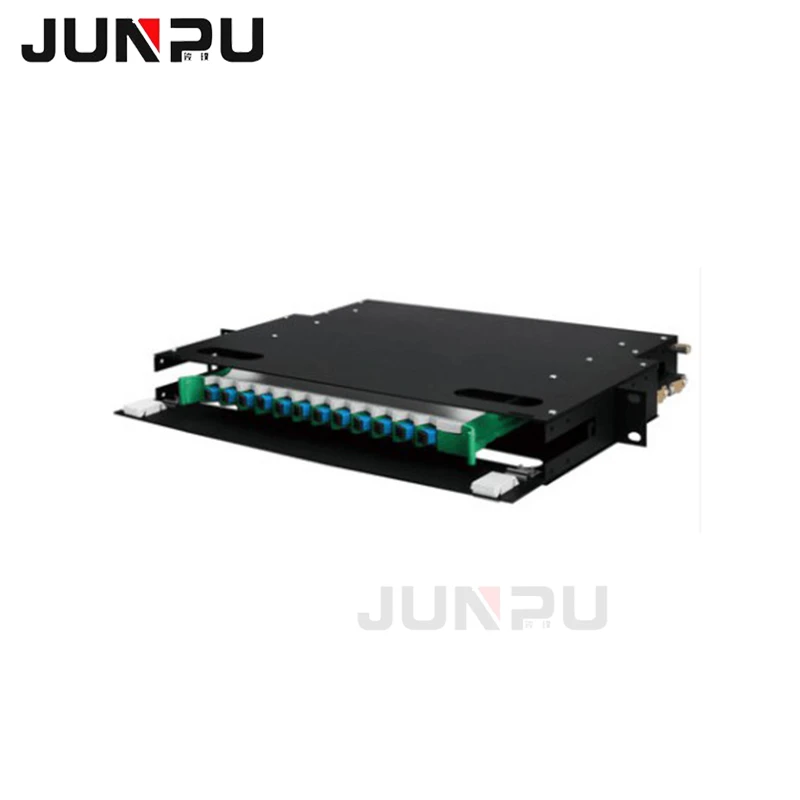

Rack mount ODFs are renowned for their modularity and sturdy structure. These ODFs can be flexibly installed on a rack based on the quantity and specifications of the fiber optic cables. The system provides convenience and accommodates future adjustments. Most rack mount ODFs are 19'', perfectly fitting onto standard transmission racks.
Key Features of an Optical Distribution Frame (ODF)
Integration
ODFs combine multiple functionalities such as fiber splicing, termination, and cable connections into a single unit, promoting efficiency and ease of management.
Protection
ODFs safeguard the delicate fiber optic connections against damage, contributing to the stability and reliability of the entire network.
Variety
Available in different shapes, sizes, and specifications, ODFs cater to diverse:requirements and infrastructural setups.
Cost-effective
By serving multiple purposes within a single unit, ODFs eliminate the need for individual components, making it a cost-effective solution.
Guidelines for Selecting an Optical Distribution Frame (ODF)
The choice of an ODF is not limited to its structure. Several key considerations come into play when deciding on the most suitable ODF.
Fiber Counts
With data centers and other facilities experiencing an increase in the number of fiber connections, the demand for high-density ODFs is becoming prevalent. It’s not uncommon to find ODFs with 24 ports, 48 ports, or even 144 ports in the current market. Furthermore, many vendors offer customized ODFs to meet specific customer requirements.
Manageability
High-density ODFs, while beneficial, can present management challenges. Therefore, your chosen ODF should simplify management for technicians. It should provide easy access to the connectors at the front and rear of the ports for easy insertion and removal, implying that the ODF should reserve enough space. Additionally, the color of the adapters installed on the ODF should match the color code of the fiber optic connectors to avoid incorrect connections.
Flexibility
Rack mount ODFs, as previously mentioned, are relatively flexible with their modular design. Another aspect enhancing an ODF’s flexibility is the port size for adapters on the ODF. For instance, an ODF with ports of duplex LC adapter size can accommodate duplex LC, SC, or MRTJ adapters. Similarly, an ODF with ports of ST adapter size can accommodate both ST adapters and FC adapters.
Protection
Optical distribution frames are tasked with integrating delicate fiber connections. Connections such as splicing joints and fiber optic connectors are incredibly sensitive, playing a crucial role in the overall stability and reliability of the network. Therefore, a reliable ODF should possess a protective mechanism to shield fiber optic connections from potential damages caused by dust or physical stress.
How Does An Optical Distribution Frame Work
An optical distribution frame (ODF) is a crucial component in the telecommunication industry, specifically in the area of fiber optic networks. It serves as a central point for managing and distributing optical fibers, enabling efficient connectivity and easy access for maintenance and troubleshooting. In this article, we will explore the inner workings of an ODF, explaining its key features and functionality.
At its core, an ODF is a station that organises incoming and outgoing fiber optic cables. It simplifies the process of connecting and disconnecting cables by providing termination points. In other words, an ODF makes it easy to manage fiber optic connections, ensuring that signals are transmitted smoothly and minimizing any network downtime.
One important feature of an ODF is its modular design. It consists of racks or cabinets with multiple slots called patch panels(or sub-ODF unit). Each patch panel can hold a certain number of fiber optic connectors, such as adapter plates or splice trays or splicing&termination tray. These connectors are securely mounted onto the panel and are used to terminate incoming and outgoing fibers. The modular design allows for scalability, as more patch panels can be added as the network expands, accommodating additional fiber connections.
Within the ODF, each incoming fiber optic cable is connected or spliced to a connector in the patch panel. This connection ensures a secure and reliable link between the fiber optic cable and the network. The same process applies to outgoing fibers, which are connected to the appropriate destination or equipment, such as switches, routers, or transmission devices. The connectors typically used in an ODF are SC (Subscriber Connector) or LC (Lucent Connector), known for their easy of use and low insertion loss.
Proper cable management is essential in an ODF to prevent signal loss and maintain the network's integrity. By organizing the cables neatly and ensuring they are secured properly, the ODF minimizes the chances of any interference or damage to the fiber optic connections.
An optical distribution frame plays a vital role in managing and distributing fiber optic connections in telecommunication networks. With its modular design and termination points, an ODF simplifies the process of connecting and disconnecting cables. By ensuring proper cable management, ODF help to maintain optimal signal transmission and minimize any network downtime.
An Optical Distribution Frame (ODF) is a crucial component in telecommunications networks. The ODF plays a close role in managing and organizing fiber optic cables. With its quick view capabilities, the ODF allows for easy access and maintenance of the network infrastructure. That the main distribution frame serves as a central point for organizing and managing fiber optic cables. Let’s take a quick view of the basic components and structure of an ODF. It’s important to understand these elements.
Components of an ODF
1. Racks
The ODF consists of close quick view racks that provide support and housing for the various components.
2. Panels
These close quick view panels are installed within the racks and hold the adapters, splice trays, and other accessories.
3. Adapters
Adapters provide a close quick view, connecting patch cords or pigtails to ODF panels for easy fiber connection.
4. Splice Trays
Splice trays are designed to securely hold fiber splices, protecting them from damage or environmental factors. With the close quick view feature, you can easily inspect the splices without any hassle.
5. Cable Management Accessories
These accessories, including cable managers, organizers, and routing devices, help maintain proper cable organization. With these close quick view accessories, you can easily manage and organize your cables for a clutter-free workspace.
Structure Of An ODF
ODF can have different structural designs based on their application requirements. Here are two common options
Front-Access Fiber Entrance Cabinet Structure
In this design, all components such as fiber entrance cabinet panels, adapters, and splice trays are accessed from the front side of the frame for easy installation and maintenance.
Rear-Access Structure
In this design, all components are accessed from the rear side of the frame.
Patch Cords In An ODF
Patch cords play a vital role in connecting fibers from equipment to the ODF panels or adapters. They enable quick and convenient connections without disturbing existing fiber links.
Splice Trays In An ODF
Splice trays provide a secure environment for splicing fibers together within the frame. They ensure proper protection and organization of spliced fibers while allowing easy access when needed.
Here are some ways in which an ODF can be integrated with other network equipment:
Direct Connection
The ODF can be directly connected to switches or routers via optical fiber cables. The fiber cables carry signals between the ODF and the network equipment, enabling data communication.
Network Interface Device
A network interface device (NID) can be used to connect the ODF to the network equipment. The NID translates optical signals from the ODF to electrical signals that can be understood by the network equipment.
Optical Add/Drop Multiplexers (OADM)
OADMs can be used to integrate the ODF with WDM (Wavelength Division Multiplexing) networks. OADMs allow specific wavelengths to be added or dropped from the optical signal as it passes through the ODF, allowing for efficient signal management within the network.
Network Management Systems
Integration with network management systems allows for centralized control and monitoring of the ODF along with other network equipment. This integration enables real-time status updates, fault detection, and performance monitoring of the entire network.
Physical Location and Layout
The physical location and layout of the ODF within the network facility are crucial for proper integration. The ODF should be located in close proximity to other network equipment to minimize cable lengths and potential network bottlenecks.
Redundancy Planning
Redundancy planning, such as having redundant fibers and connections, ensures that the network remains operational even if a component fails. This is achieved through proper design and integration of the ODF with other network elements.
Can an ODF Be Used For Copper Cabling As Well
Yes, Open Diversity Format (ODF) is a data format that can be used for specifying and recording data related to copper and fiber cabling infrastructure. It provides a might infrastructure and telecommunications industry standardized format for describing the attributes of cable connections and related parameters.
ODF capabilities extend beyond copper and fiber cables to support a comprehensive set of media characteristics and link parameters. The format can define the infrastructure, along with a full set of attributes and relationships of cable-related items, such as cables, connectors, cabinets, racks, and switches. In addition, OFDF supports standardized data types for many aspects of copper-based and fiber-based installations, including:
Cable type (twisted pair copper, coaxial cable, etc.). use cases for copper and fiber cable characteristics and installation.
What Is The Difference Between An Odf And a Patch Panel
An ODF (Optical Distribution Frame) and a patch panel are both used in telecommunications and networking to manage and organize cables, but they serve different purposes:
ODF (Optical Distribution Frame)
‣ODF is primarily used for fiber optic cables.
‣It acts as a central point for terminating and connecting fiber optic cables.
‣It provides a structured interface for splicing, patching, and managing fiber optic connections.
‣ODF are typically found in data centers, telecommunication rooms, or central offices.
‣It helps in easy maintenance, troubleshooting, and scalability of fiber optic networks.
Patch Panel
‣A patch panel can be used for both fiber optic and copper cables.
‣It is used to terminate and connect various communication cables, including Ethernet, telephone, coaxial, etc.
‣It provides a centralized location for cable termination and connection points.
‣Patch panels are commonly used in local area networks (LAN), data centers, and telecommunications infrastructure.
‣It allows for easy organization, management, and quick changes or updates to the cabling infrastructure.
The main difference between an ODF and a patch panel lies in the type of cables they are primarily used for and their specific functionalities. ODF is specific to fiber optic cables and focuses on fiber optic connections, while a patch panel can handle various types of cables and provides a more versatile solution for cable management and termination.

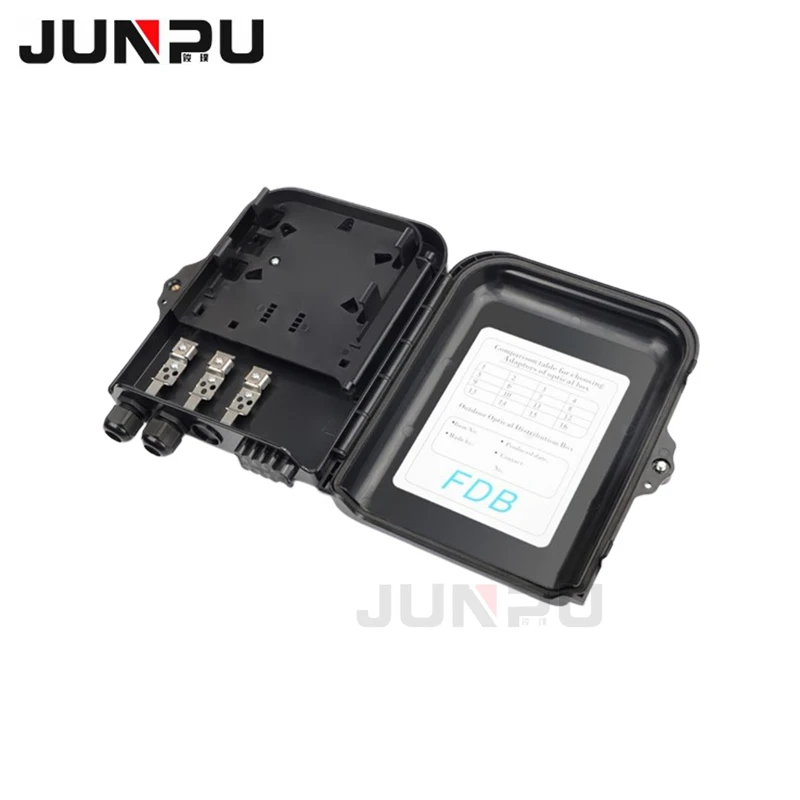

Fiber optic distribution boxes play an integral role in improving network performance by facilitating efficient management and distribution of fiber optic cables. Here are several ways in which they contribute to enhanced network performance:
An Open Data Format (ODF) can greatly contribute to improving network performance and reliability by providing a standardized and interoperable way of exchanging data. ODFs are file formats that are openly available and can be used by any software application, making it easier for different systems to communicate with each other. This interoperability helps in several ways
ODF enable seamless data exchange between different software applications and platforms. This means that data can be easily shared between systems without requiring complex data conversion processes that can often introduce errors or delays. By using a common data format, network performance is improved as data can flow freely between different systems, reducing bottlenecks and enabling faster and more efficient communication.
ODF allow for more efficient data storage and retrieval. With a standardized format, data can be stored in a consistent manner, making it easier to organize and index. This improves the speed and reliability of data retrieval, as systems can quickly locate and access the required information. Additionally, ODFs often support compression and optimization techniques, reducing the size of the data files. This leads to faster data transmission over the network, enhancing overall performance.
ODF facilitate data analysis and processing. By using a common format, data can be easily imported into analysis tools and processed in a consistent manner. This enables network administrators and analysts to extract useful insights and identify patterns or anomalies more efficiently. The ability to analyze data in a standardized format improves decision-making and troubleshooting, leading to better network reliability.
ODF can support real-time data streaming and communication protocols. Real-time data is crucial for monitoring network performance and detecting issues as they arise. By using ODFs, real-time data can be easily exchanged between different monitoring systems, allowing for immediate analysis and response. This helps identify and resolve network issues faster, minimizing downtime and improving overall reliability.
Maintenance Tips for Optic Distribution Frame
Regular Cleaning
Clean the optic distribution frame (ODF) regularly to remove dust, dirt, and other debris that may accumulate on the connectors and ports. Use a lint-free cloth or compressed air to clean the frame gently.
Inspection
Regularly inspect the connectors and ports for any damage, loose connections, or signs of wear. Ensure that the connectors are properly aligned and seated in the ports. If any damage or loose connections are found, they should be repaired or replaced immediately.
Cable Management
Proper cable management is crucial for maintaining an organized and functional ODF. Ensure that all cables are properly labeled and neatly arranged to minimize clutter and prevent accidental damage.
Environmental Considerations
Keep the ODF in a clean and dry environment, away from excessive heat, moisture, and dust. Extreme temperatures and humidity can damage the connectors and cables, leading to signal loss or failure.
Proper Handling
When connecting or disconnecting cables or modules, handle them with care to avoid bending or breaking the fibers. Avoid pulling or tugging on the cables excessively, as this can damage the connectors and strain the fibers.
Regular Testing
Periodically test the connections and performance of the ODF using appropriate testing equipment. This helps detect any issues or degradation in signal quality, allowing for timely troubleshooting and maintenance.
Spare Components
Keep spare connectors, adapters, and other components in stock to quickly replace any faulty or damaged parts. This minimizes downtime and ensures the smooth operation of the ODF.
Regular Upgrades
Stay updated with the latest technology and standards in optic distribution frames. Regularly upgrade the ODF to ensure compatibility with new equipment and to take advantage of improved performance and features.
Our Factory
Hangzhou Junpu Optoelectronic Equipment Co.,Ltd . Which specializes in fiber to the home (FTTH) and HFC network for many years. Fiber optic communication equipment includes fiber optic terminal boxes, fiber optic splice boxes, FTTH optical drop-in lines, fiber optic patch cords, fiber optic splitters and EDFA wavelength division multiplexers. Junpu provides complete solutions of standard products or customized in FTTH field.
FAQ
Q: What are the advantages of using an ODF?
Q: How does an ODF work?
Q: What are the main components of an ODF?
Q: How is an ODF different from a Patch Panel?
Q: What is an Optical Distribution Frame?
Q: How is an ODF maintained?
Q: What are the different types of ODF?
Q: Where is an ODF used?
Q: What is the advantage of using an ODF over traditional fiber termination methods?
Q: How does an ODF support scalability in an optical network?
Q: How can an ODF contribute to better network efficiency?
Q: How does using an ODF impact fiber optic network security?
Q: What are the common uses of an optic distribution frame?
Q: What is the difference between a simplex and duplex optic distribution frame?
Q: What are the safety considerations when working with optic distribution frames?
Q: How can you troubleshoot connectivity issues with an optic distribution frame?
Q: How do you maintain cable organization within an optic distribution frame?
Q: What are the scalability considerations when choosing an optic distribution frame?
Q: What is the function of cable management systems in an ODF?
Q: What are the key performance metrics for optic distribution frames?
As one of the most professional optic distribution frame manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to wholesale cheap optic distribution frame for sale here from our factory. Contact us for OEM service.
12 Core ODF Optical Distribution Frame, 24 Core ODF, 96 Core ODF
