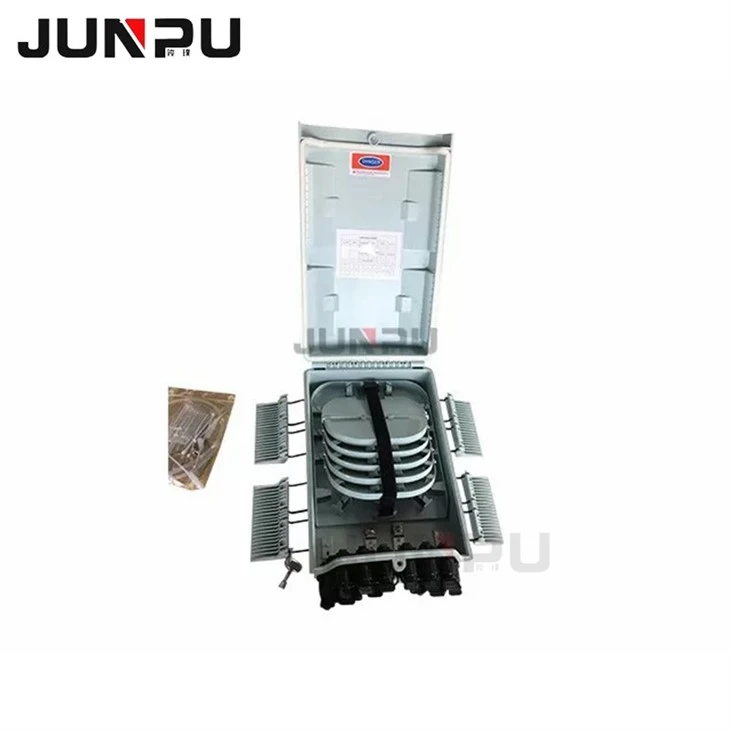

8 Core FTTH Fiber Optic Terminal Box NAP BOX
General Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The 8 Port Fiber Termination Box features 8 10/100/1000MBASE-T ports and 2 1Gb SFP uplinks. These SFP ports meet network expansion needs, providing improved sustainability and borderless network experience. Its fanless design ensures silent operation, lower costs and reduced power consumption. The user-friendly web interface simplifies operations and improves efficiency, while strong security protects critical transactions.
With a switching capacity of 20 Gbps and a forwarding rate of 14.88 Mpps, this switch provides enhanced L2 features such as VLAN, QoS, LACP and IGMP to improve network performance. This high-performance L2 smart managed switch is ideal for retail, small business and campus networks.
Features
1. Industry Standard User Interface, be made of high impact plastic.
2. Can accommodate 1x4 & 1X8 PLC splitter.
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Up to 8 FTTH drops.

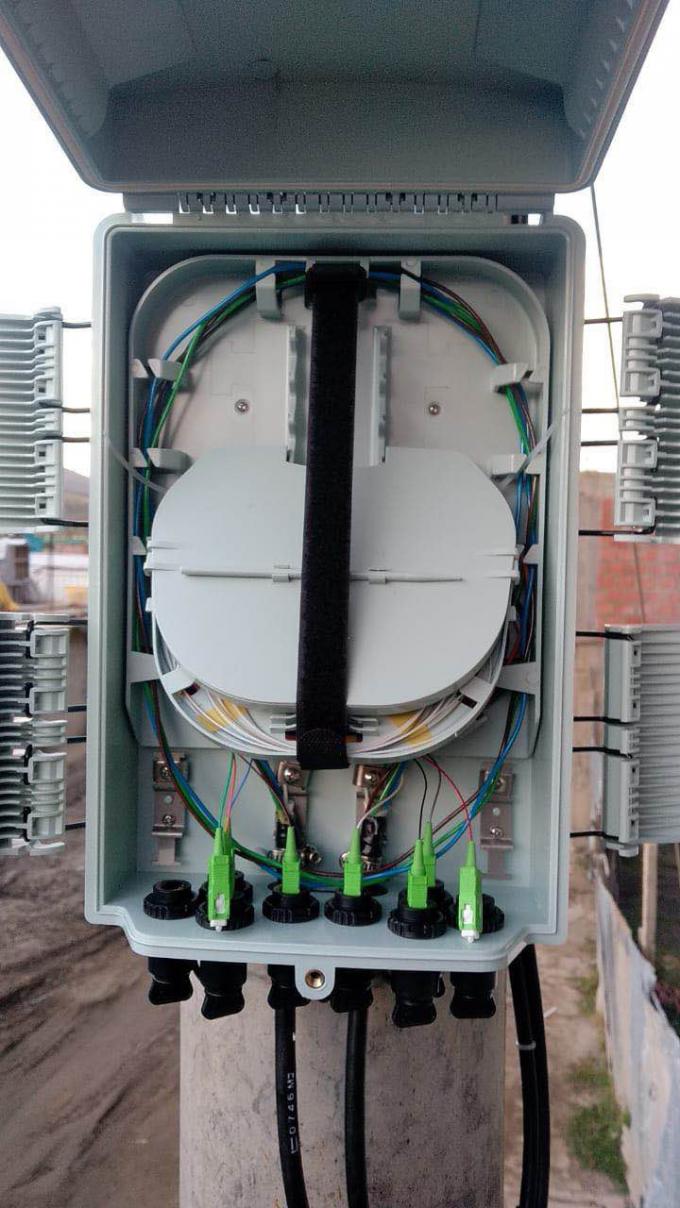

5. Wall and pole mountable.
6. 2 inlet ports, 8 outlet ports.
7. Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.
8. Job stress: 70 kpa to 108 kpa;
9. Using the temperature:- 40 ~ + 60 ℃
10. Relative humidity: ≤95% (+ 40 ℃).
11. Protection grade: IP65.
Application
1.Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broad band High-bit rate data transmission
4. Active device terminations
5. Testing instruments
6. Optical fiber communication networks
7. PON Networks
8. Optical Signal Distribution
