Outdoor 2 In 16 Out 16 Core Fiber Optic Distribution Box NAP Fiber Box
|
Product Name: |
Fiber Optic Termination Box |
Mode: |
Wall Mounted Or Pole-Mounting |
|
Free Sample: |
Support |
Size: |
295*220*85mm |
|
Connector: |
SC, LC Optical Adapter |
Material: |
PC, ABS |
|
Port: |
2 In, 16 Out |
Application: |
Indoor Or Outdoor |
|
Color: |
Black, White |
PLC Splitter: |
Mini Steel Tube |
|
Colorful Logo: |
Support |
OEM: |
YES |
Outdoor 2 In 16 Out 16 Core Fiber Optic Distribution Box NAP Extend Capacity
Application
●FTTH access network
●Telecommunication Networks
●CATV Networks
●ata communications Networks
Details
|
Product Name |
16 Ports Fiber Optic Termination Box 1X16 Plc Splitter |
|
Parameters |
Specification |
|
Material |
PC+ABS |
|
Size |
295*220*85mm |
|
Capacity |
SC 16 ports |
|
Color |
White, black |
|
Assemble |
Support |
Description

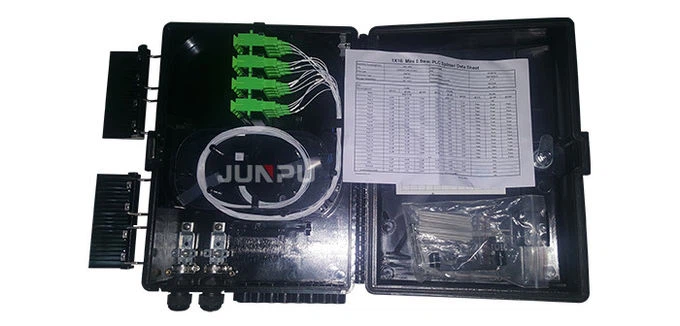

JP-I2-16OA fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.
Installation
1.Wall-mounted
According to the size of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw.
2.Pole-mounted
Fix 1 set of the easy pole ring to the telecom pole.
3.Aerial-mounted
One is fixed on the pole, the cable connector box parallel to the pole.
The other is fixed on the cable, the cable connector box parallel to the cable.
