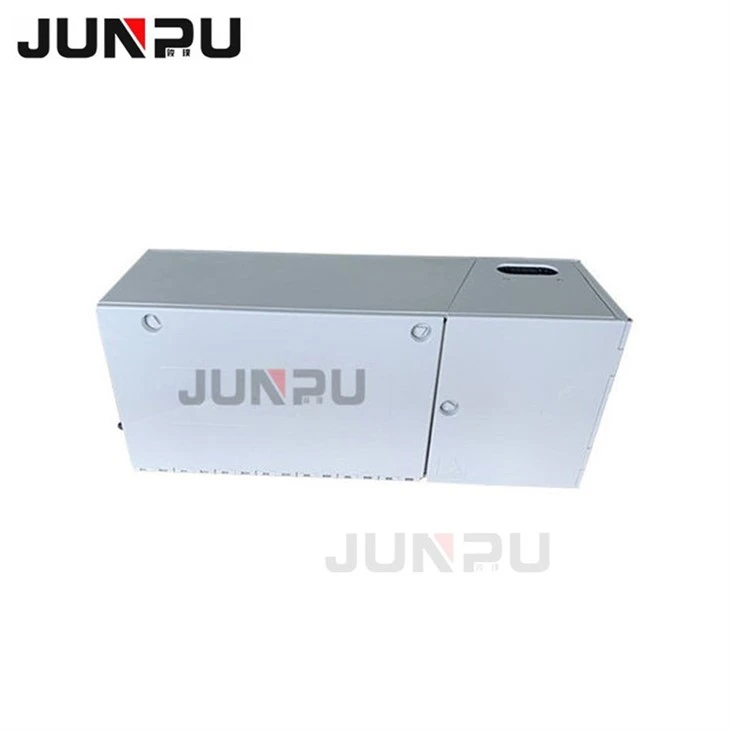

Fiber Optic Distribution Box Cabinet 48 Core Ftth Termination Box ISP
Application
1. Telecommunication area.
2. Internet service.
3. Data center, CATV
4. FTTH
Accessories
1. 1x Installation Manuel
2. 3x300mm cable tie
3. 24x100mm plastic cable tie
4. 1x wall fixing kit
5. 48x fiber splice protector
6. 1mx fiber protect tube.
7. 1x Triangular Key
Specification
|
Dimension |
450x180x150mm |
|
Net Weight |
3.2kg |
|
Splice tray |
6pcs |
|
Max Capacity |
48core |
|
Adapter Plate Capacity |
48 SC Simplex |
|
Dividers |
Max 4pcs 1:16 Splitter |
|
Color |
Grey RAL 7035 |
|
Working Temperature |
-25°C - 60°C (5 to 95% relative humidity) |
This FTTH Termination Box is meticulously crafted to ensure flawlessness with no burrs, bubbles, cracks or voids. You can rest assured that you will be able to trust the quality of your fiber optic connection
Tool-free access: Say goodbye to bulky screws! The digital conversion box features a convenient design that allows for easy opening without any tools. Enjoy fast, hassle-free use anytime, anywhere

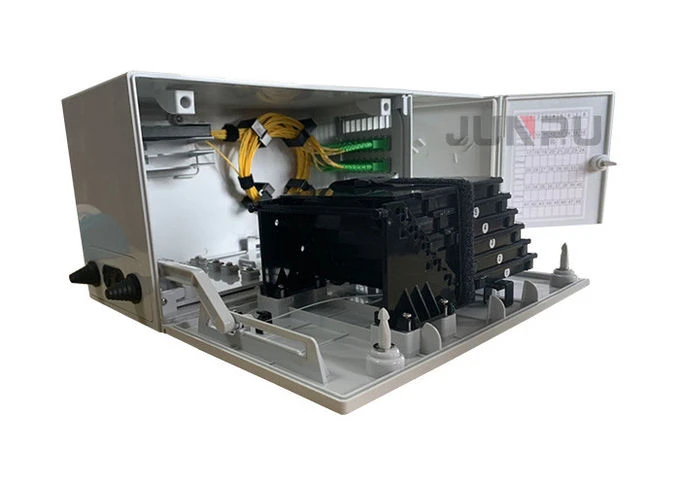

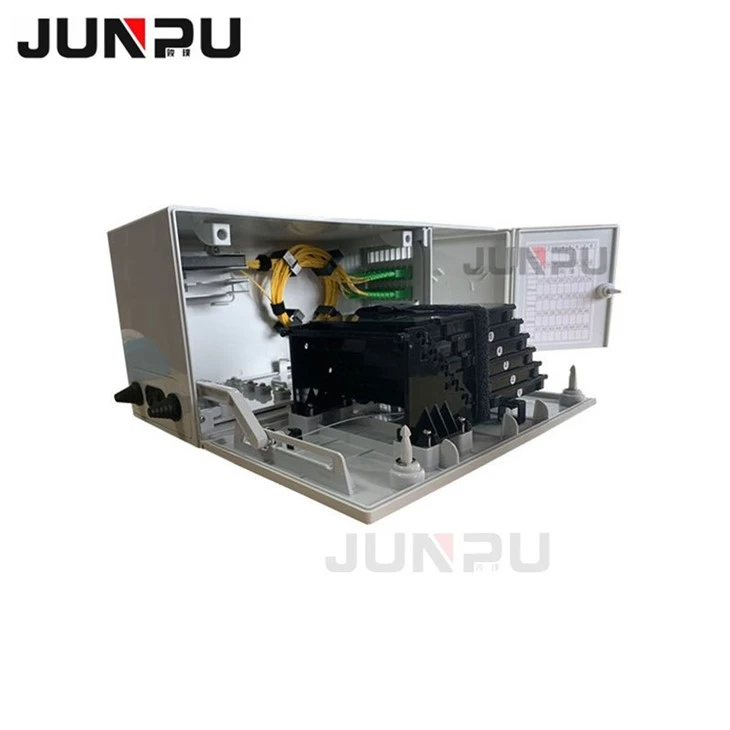

Flexible fiber management: Capable of retaining at least 1 meter of fiber length and maintaining a bend radius of at least 20 mm, this fiber extension box gives you the flexibility you need for efficient fiber cabling installations
Versatile mounting options: Whether you prefer to place it on a table or hang it on a wall, this junction box offers a variety of mounting options to suit your space and needs. Enjoy the flexibility of a custom installation
Space-saving solution: With its compact size and minimal design, this junction box is the perfect solution for environments with limited space. Keep your fiber connections organized without sacrificing valuable space
