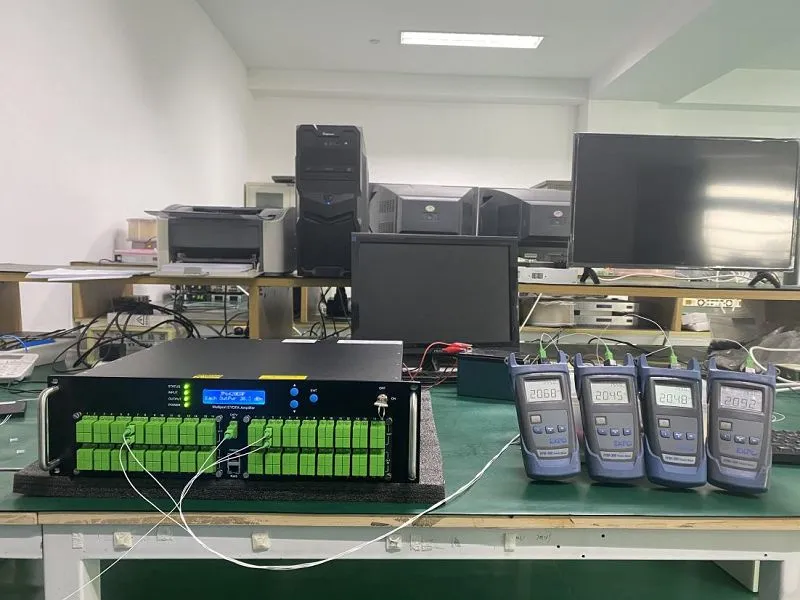

1550nm EDFA WDM XGS PON Combiner

1550nm EDFA WDM XGS PON Combiner

JUNPU 1550nm EDFA WDM XGS PON Combiner is a high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. It is mainly designed for the application of CATV. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.

•AM CATV

•Digital CATV

•DBS & MMDS

•FTTx PON

* 1U/2U/3U 19"standard rack, Max output port can reach 256 outputs.
* Advanced LG switch low-power circuit design, greatly reducing the overall power consumption and heat.
* Perfect APC, ACC, ATC control, ensure the long life and high reliability of PUMP laser.
* Using digital control chip, remote or local output power adjustable.
* Built-in low-noise preamplifier eliminates the need for cascaded EDFA, allowing input light to be as low as -5dBm, greatly reducing CNR and MER degradation.
* Demultiplexer for 1310/1490/1550nm EPON and GPON. It greatly facilitates network applications with PON. Low noise figure (type ≤ 4.5dB, Max ≤ 5.0dB).
* The front panel can be removed and replaced flexibly according to the number of output ports.
* Can add a built-in optical switch module to facilitate the expansion of the device function.
* Cooling fan supports online replacement.
* RJ45 provides serial communication and SNMP network management interface; Carrier-grade dual power hot backup, CPU assignable power.
