Guy Grip Dead End
Your Professional Guy Grip Dead End Supplier！
Junpu Fiber Optic communication company is a fiber optical products factory and facilitator specialized in fiber optic communication products, providing the best fiber optic internet service solutions.The mainly advantaged fiber optic communication equipment are fiber optical terminal box, fiber optical splice closure, FTTH optical drop cable, Fiber Optic Patch Cord, Fiber Optical Splitter and EDFA WDM.
Why Choose Us
Advanced Equipment
We have 100 workers and 10-25 production lines, equipped with advanced testing instruments and independently developed molds. We provide high-quality products with reasonable cost to all over the world.
TQC
We have a quality management department responsible for supervising the product process, and a supply and marketing department responsible for providing raw materials and items required for the production process as required.Each production workshop shall control the control of the production process in accordance with the process technology documents.
Our Certificate
We have comprehensive ISO9001、ROHS、CE、CPR to ensure product quality and smooth foreign trade transaction process.We provide high-quality products with reasonable cost to all over the world.
Online Service
Junpu provides 12-hour quick pre-sales response and free consultation. Our customers can get any kind of technical support.
A Guy Grip Dead End is a type of hardware used to terminate guy wires, typically on single wood poles, in utility pole construction. It's a preformed grip made of galvanized steel that wraps around the guy strand and secures it to the pole. These grips are designed for one-time, permanent or semi-permanent use, although they can be reinstalled twice within 90 days for retensioning.
Product Specification
We provide the following product specifications:
|
Specification |
Value |
|
Guy Size |
7/16 in. |
|
Strand Type |
7-wire |
|
Application |
Guy strand to single wood pole |
|
Mean Diameter |
0.435 in. |
|
Material |
Galvanized Steel, B-Coat |
|
Length |
38 in. |
|
Color Code |
Green |
|
Reusability |
Up to 2 reuses within 90 days |
|
Unit Weight |
1.60 lbs |
|
Quantity per Pack |
25 |
Guy wire dead: They are common for guying poles which are used in the construction, power, and telecommunication industries.They work with strands that have a 1-inch diameter or lesser than this value.The presence of off-set tips on this guy grips enhances its ease of installation. This is an addition to the color codes that are attached to their ends.
Preformed grips: You can also choose to buy preformed grips in China.This one has similar material to one of the conductors.It is characterized by high tensile strength and resistance to corrosion.
Product advantages
Secure and Reliable Connection:
GUY-GRIP Dead Ends, when installed correctly, provide a strong and reliable connection, rated at 100% of the strand's breaking strength.
Bolt-Free Design:
The one-piece design eliminates the need for bolts or high-stress holding devices, simplifying installation and reducing potential points of failure.
Enhanced Durability and Tensioning:
The cabled loop design, a feature of the GUY-GRIP, improves durability, simplifies the tensioning process, and allows for adaptability in various guying situations.
Designed for Specific Applications:
These dead ends are designed for use with specific types of strands and hardware, ensuring optimal performance and longevity.
Single-Use, Permanent Termination:
They are intended for single-use, meaning they are designed to be installed once and remain in place permanently, providing a lasting solution.
Ease of Installation:
While requiring trained personnel for proper installation, the preformed design and color-coded identification make installation relatively straightforward.

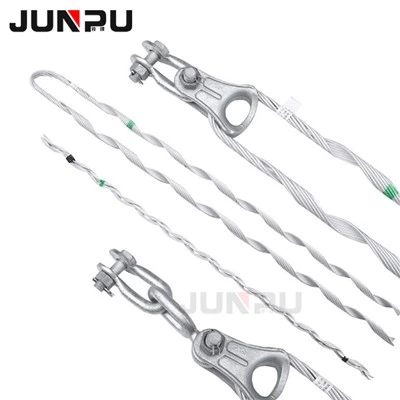

Structure and Raw Material
Shackle--Hot dip galvanized steel. Shackle is connected with Reinforcing Pole units.
Twisted Chain Link--Hot dip galvanized steel. Twisted Chain Link is intended for connecting U- Shackle and Clevis Thimble.
Thimble--Hot dip galvanized cast steel. Thimble is plugged in the shackle of the Tension Clamp for protection and connection.
Armor Rods--Aluminum clad steel wire. Armor Rods increase friction with a layer of particle emery inside to cable. Rods are assembled into four subsets in the workshop which reduces misalignment errors and speeds installation. The ends are bent outward to provide stress relief at the critical cable departure areas.
Preformed Dead End -- Preformed Dead End are made of hot dip galvanized steel wire or aluminum clad steel wire, it is assembled into one subset with a layer of firm emery inside in the workshop, in order to increase the gripping strength of the Tension Clamps while decreasing side pressure.
Customization Process
Requirement Discussion
Contact us and provide your design drawings, size specifications, and other technical parameters.
01
Design Proposal
Our professional team will develop a design proposal and provide a quotation based on your requirements.
02
Sample Production
We produce samples according to the design proposal and conduct rigorous testing.
03
Mass Production
Upon your approval, we commence mass production to ensure timely delivery and consistent quality.
04
After-Sales Service
We offer ongoing technical support and service to ensure the long-term stable operation of our products.
05
Other Services
According to the application needs, the guy grip includes dead end cable grips and dead end grip. The guy grip has helically formed legs with inert grits on every turn that holds the messenger wire, conductor, or fiber optic cable securely.
Also, the strand is tacked together on the bent part of the guy grip. The guy grip sizes include Guy Grip 1/8″ 3/8″ 5/16″ and so on.
As a professional manufacturer, supplier, and exporter, Our can support all sizes of guy grips, We can also customize them according to your designs.
Our Certifications
Package & Delivery
Package: Standard export package
Delivery: By air express, by sea
FAQ
As one of the most professional guy grip dead end manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to wholesale cheap guy grip dead end for sale here from our factory. Contact us for OEM service.
