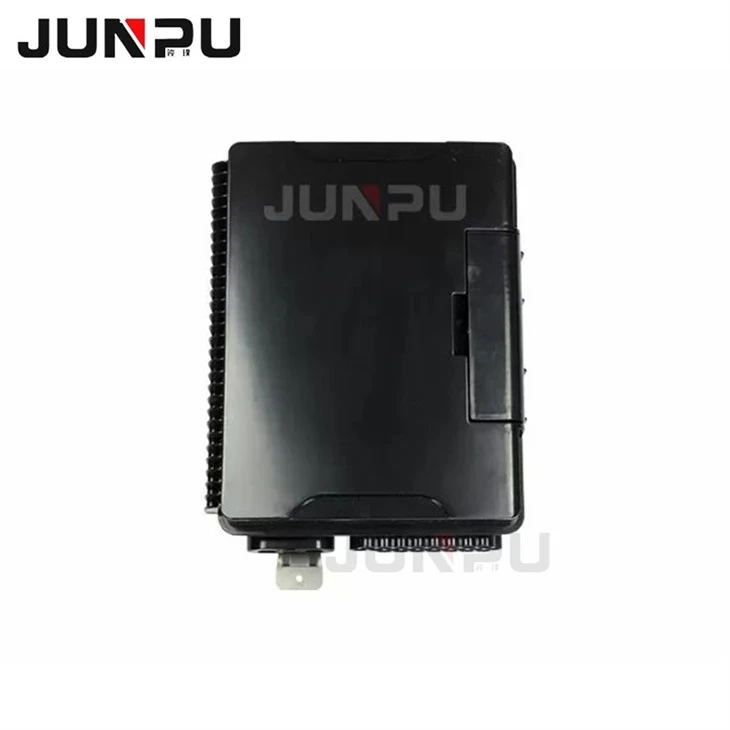

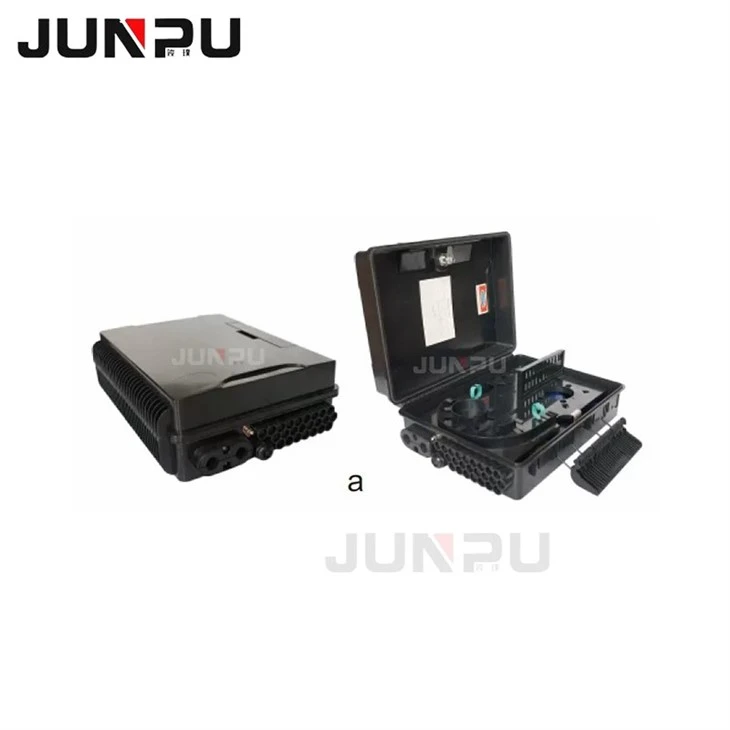

24 Core Outdoor Fiber Termination Box

24 Core Outdoor Fiber Optic Distribution Box, Ftth Fiber Optic Terminal Box

* The body is made of high quality engineering plastic with good strength;

* With good water-proof performance, suitable for indoor and outdoor natural environments

* With water-proof adapter, the box can be operated more conveniently

* The drop leaf can be installed 2 pcs of 1*4 & 1 pcs of 1*8 & 1 pcs of 1*9 tube splitter

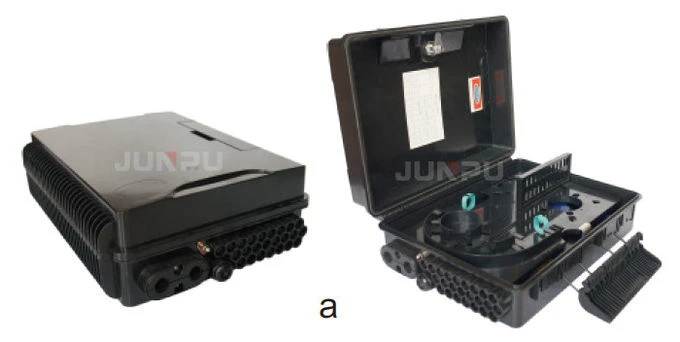

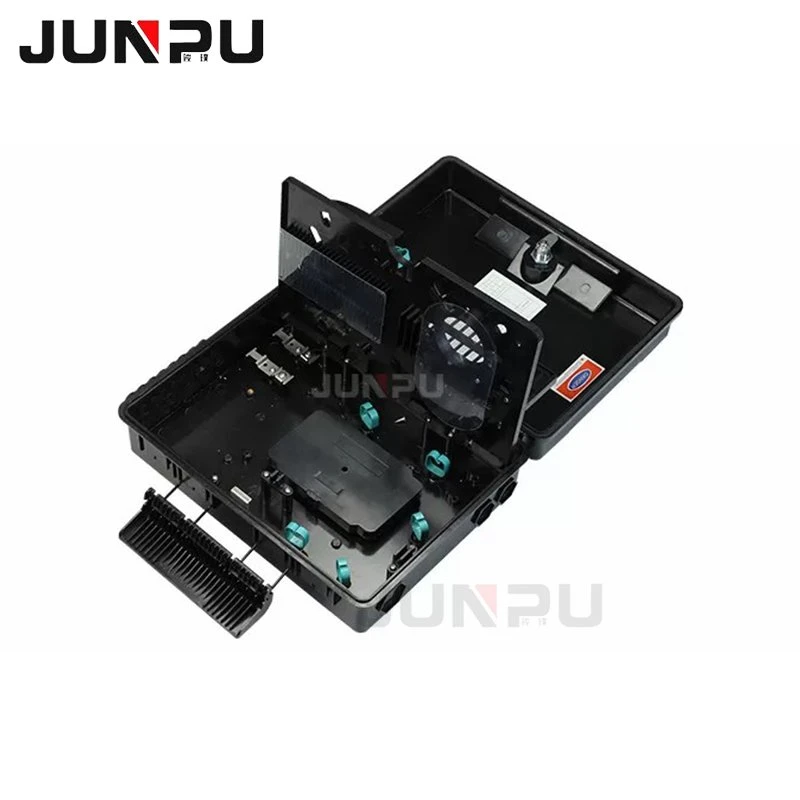

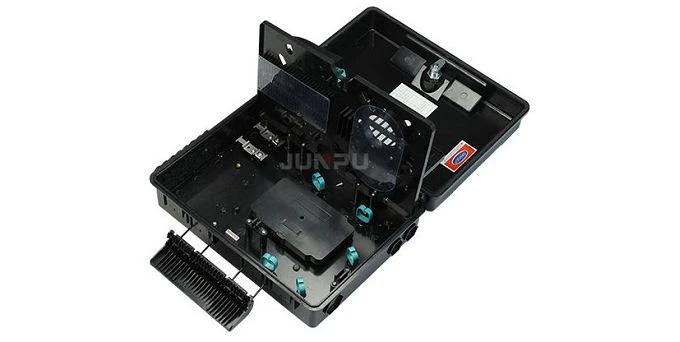

JP-I2-8OC fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.

The 24 Core Outdoor Fiber Termination Box is pre-terminated and pre-tested and comes with 3 rear 8-fiber MTP® port connections and 6 front quad LC ports. The box is ideal for deployments such as 40G to 10G, 100G to 25G, and 400G to 100G. Using universal polarity on both ends of the B-method trunk reduces fiber network complexity, ensures consistent polarity, and simplifies network maintenance.

This 24 Core Outdoor Fiber Termination Box is designed to upgrade existing LC links to SR4 parallel optics without wasting any fiber within the cable.

1. Wall-mounted
Accordingto the size of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punchingposition on thewall, and completely fixed screw.
2. Pole-mounted
Fix 1 set ofthe easy pole ring to the telecom ,pole.
3. Aerial-mounted
One is fixed on the pole, the cable connector box parallel to the pole.
The other is fixed on the cable, the cable connector box parallel to the cable.
