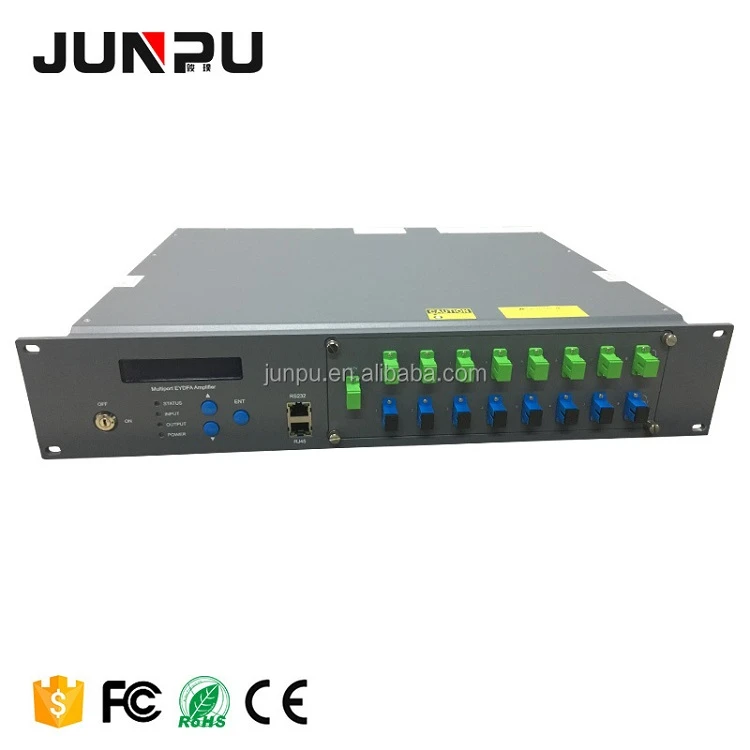

JUNPU 1550nm EDFA with WDM RF 32*22dBm (16DB~23DB for optional) Multi-ports output, can built in 1270/1310/1490/1550/1577nm WDM.Designed for the PON+CATV Solution, combine the internet and 1550nm TV signal, amplify the 1550nm TV signal in the same time.

•AM CATV

•Digital CATV

•DBS & MMDS

•FTTx PON

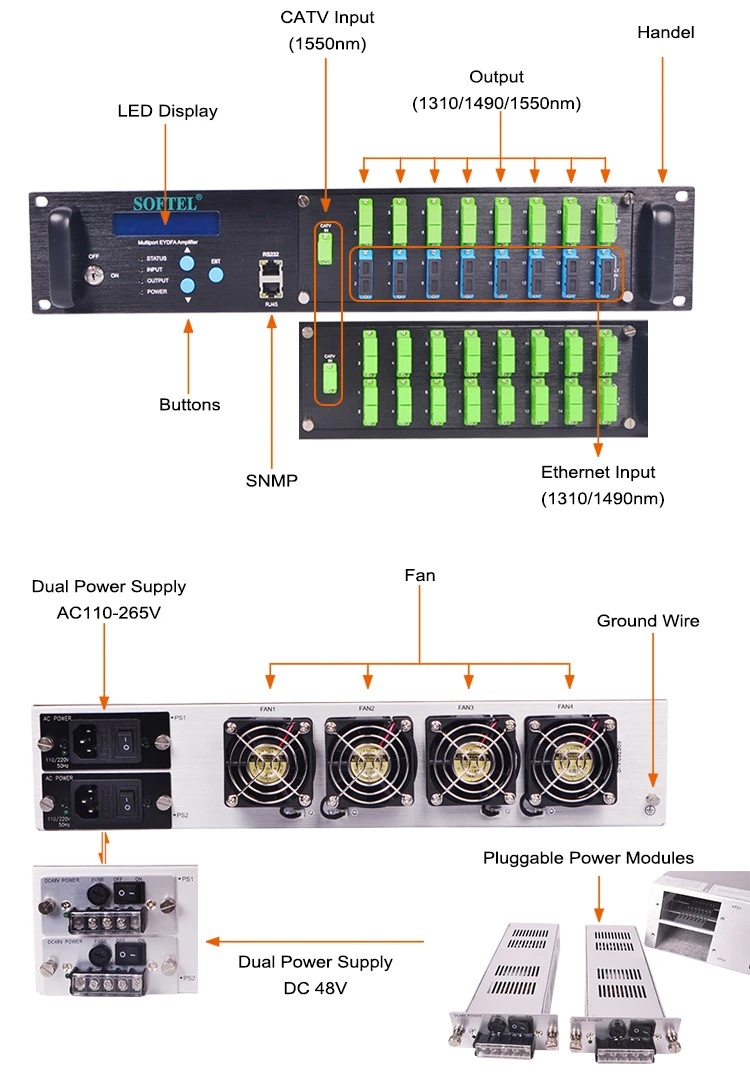

♦ This optical edfa ports used in OLT, 32 ports of PON and 1550nm CATV EDFA Combiner out , Each output port for optical amplifier has built-in well-performed CWDM, and 1550nm CATV is out-put optical port multiplexes 1310/1490nm is data stream and not lose.

♦ With optical switching 2x1, 2 ways optical input,hot backup automatic switch,hot backup automatic switch.

♦FWAP-1550H-32xN series,2U,32ports of PON+1 port CATV input EDFA 8ports of coupled out,EDFA:27~37dBm
