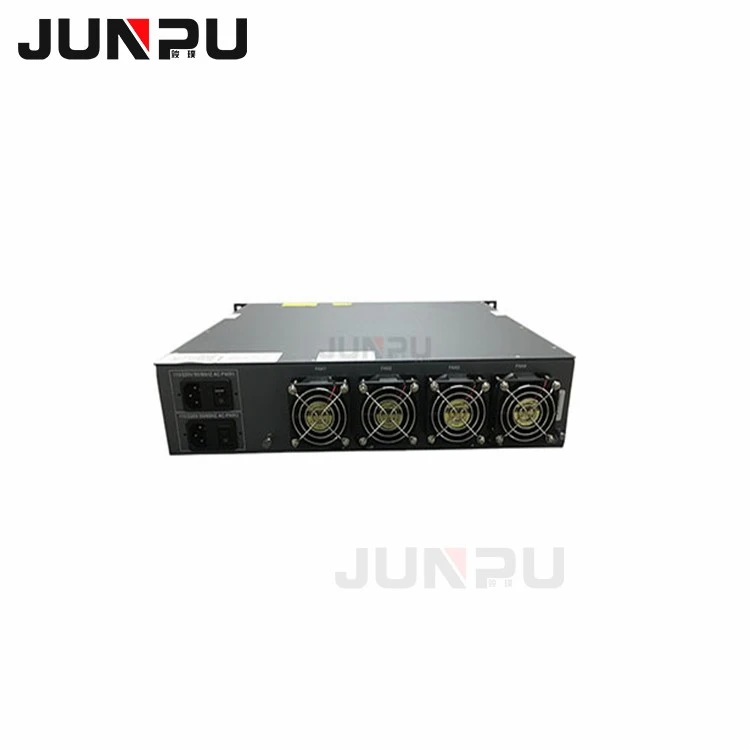

16 Port EDFA WDM

16 port EDFA WDM

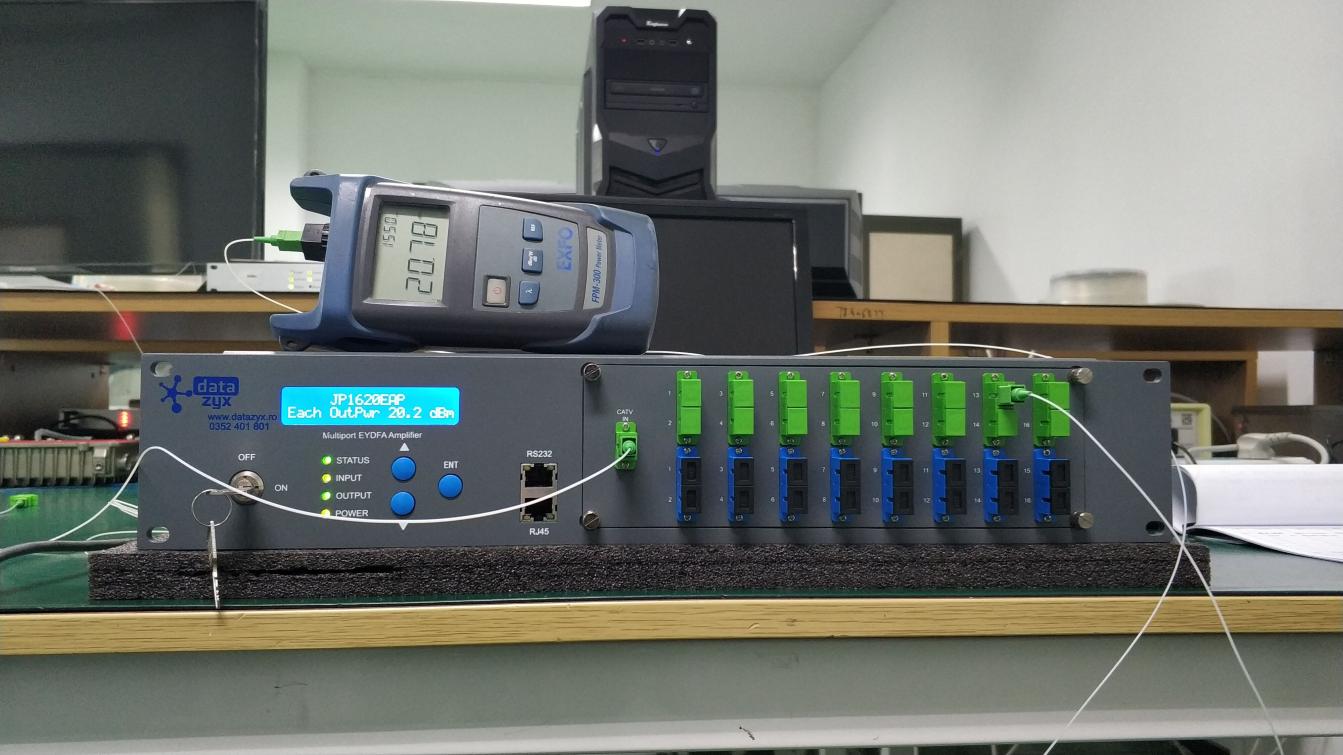

JUNPU CATV 1550nm EDFA perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of 1550nm catv amplifier EDFA can be installed in the front panel (also can be in the back panel if customers specify).

•AM CATV

•Digital CATV

•DBS & MMDS

•FTTx PON

1.This type EDFA series Ytterbium and Erbium Doped Fiber Amplifiers (YEDFA) are designed for using in CATV,FTTX and HFC application.

2.It is optimized for 1550nm wavelength and is packaged in a 2U 19 inch rack housing.

3.The product is flexible enough to perform all the requirements of CATV,FTTX and HFC applications.

4.The device chooses a high performance PUMP laser and circuit (include ACC and APC) and optical output power is adjustable and flexible for network link loss budget.

We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
