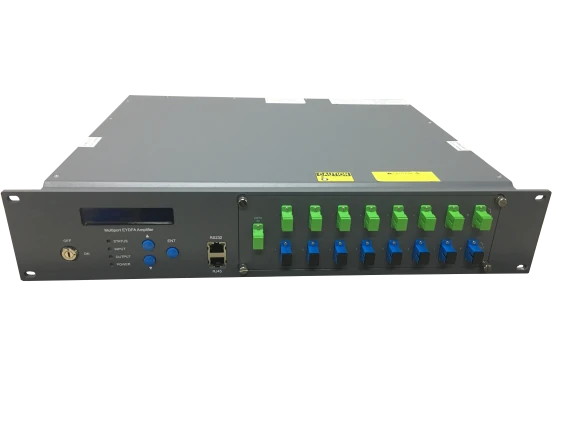

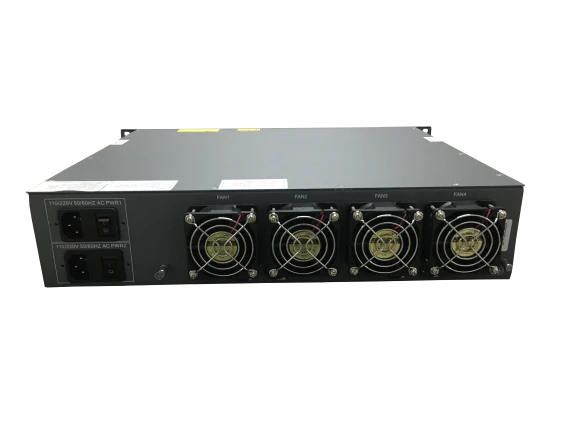

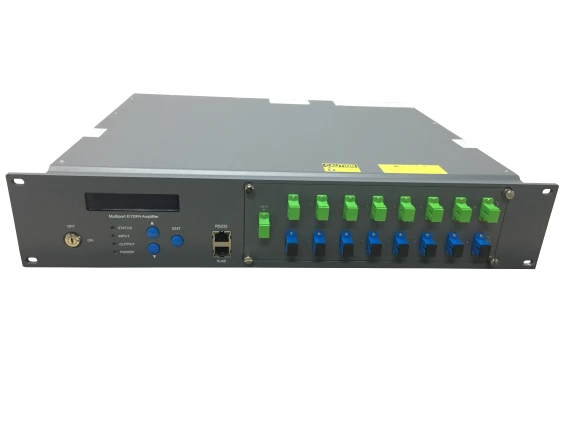

CATV EDFA WDM

Performance

Index

Supplement

Min.

Typ.

Max.

Optical feature

Operating wavelength range

(nm)

1540

1563

CATV

Input power

(dBm)

-10

10

Total output power¹⁾

(dBm)

Number of output ports

(pcs)

32

4/8/16/32

Each output power

(dBm)

0

22

13 ~ 24dbm

Difference of output power

(dB)

-0.5

0.5

Output power adjustable range

(dBm)

-6

0

Noise figure (Pin=0dBm)

(dB)

4.5

5

5

6

Switch time

(ms)

8

Polarization dependence loss

(dB)

0.3

Polarization dependence gain

(dB)

0.4

Polarization mode dispersion

(ps)

0.3

Input/output isolation

(dB)

30

Pump power leakage

(dBm)

-30

Echo loss

(dB)

55

APC

General feature

Network management interface

RJ45

SNMP

Power supply

(V)

90

265

220VAC

30

72

-48VDC

Power consume

(W)

50

Operating temp.

(°C)

-5

65

Storage temp.

(°C)

-40

80

Operating relative humidity

(%)

5

95

Size (W)×(D)×(H)

(")

19×14.3×1.75

2RU(2X19")
