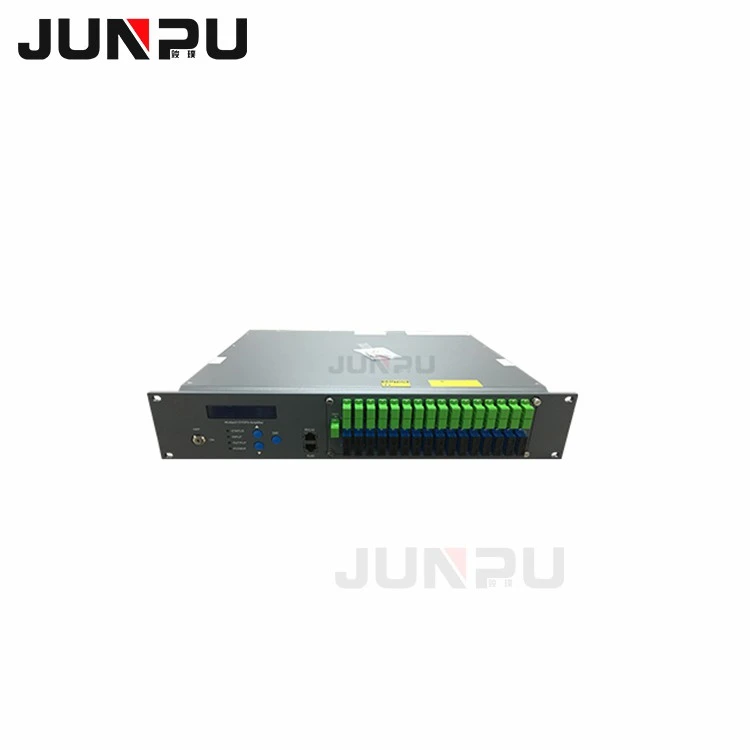

32 Port EDFA WDM

32 port EDFA WDM

JUNPU JP32xxEA(2RU) series 1550nm erbium-doped fiber amplifier adopts low-noise pumping laser,high-quality erbium-doped fiber and advanced microcomputer real-time monitoring circuits to ensure excellent performance. It is an optical repeater device that is used to boost the intensity of optical signals being carried through a fiber optic communications system.

Fiber Optic amplifiers can not only be used after the transmitter laser as booster-amplifiers along the fiber connection, but as inline-amplifier and as pre-amplifier before the receiver.

Erbium Doped Fiber Amplifiers(EDFA) GPON series, is a high-power multi-ports EDFA with gain spectrum band within 1540~1563nm. Tuolima designed EDFA optical amplifier for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength) so that EDFA in optical fiber communication offers flexible and low-cost FTTH solutions for CATV large area coverage of metropolises and medium-sized cities. EDFA have various types, for example, WDM EDFA, PON EDFA, mini EDFA, CATV EDFA, high power EDFA, EDFA laser, DWDM EDFA, GPON EDFA.

1. Competitive price:

We are a manufacturer of fiber optic amplifier with self-owned research department and cheaper raw material resource with stable domestic and foreign orders.

2. Quality guarantee:

We have been manufacturing fiber optic transmission equipment for over 10 years exporting to most European, South America and Asia countries with CE certificate.

3. Efficient after-sales service:

We have a professional group of engineers and sales in charge of your complete purchase experience. If any quality problem after receiving, we will response at once and give you a satisfied solution such as device configuration or remote control. Perfect and responsible service makes Tuolima your most trusted partner.

• AM CATV

• Digital CATV

• DBS & MMDS

• FTTx PON

● 1540~1565nm operating bandwidth for optical amplifier

● Each output optical port is with built-in high-performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.

● Output is adjustable by buttons in the front panel or web SNMP, the range is down 4dBm

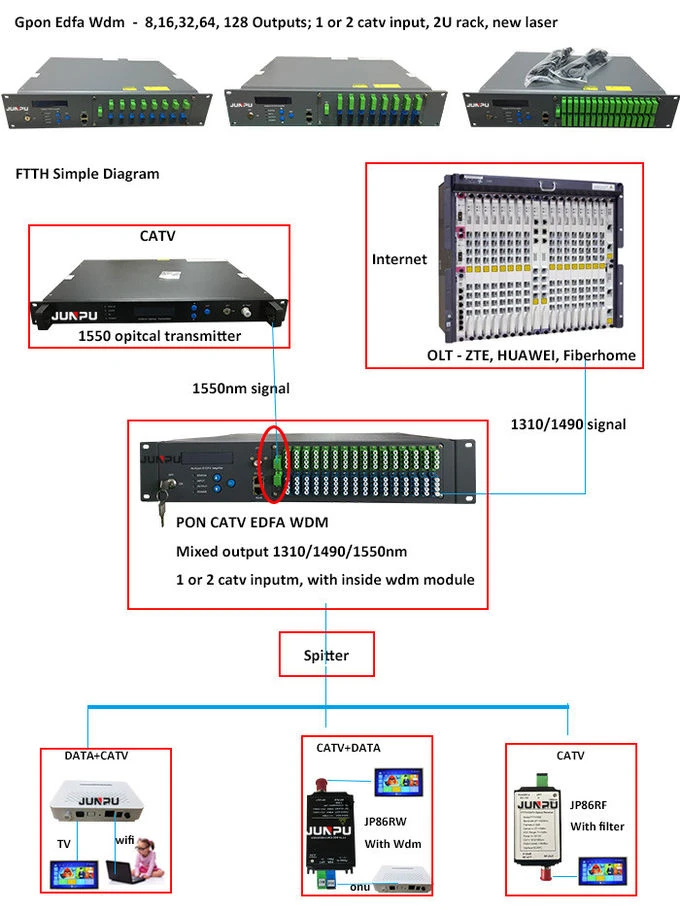

● Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON

● Multi- ports output, can built-in 1310/1490/1550WDM

● Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )

● Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for the update.

● With a laser key to turn on/off the laser

● Led displays the working condition of the machine

● Dual power hot plug power supply for choice, 90V～250V AC or -48V DC
