64 port EDFA WDM

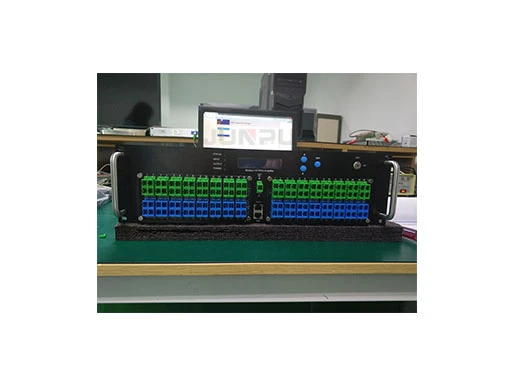

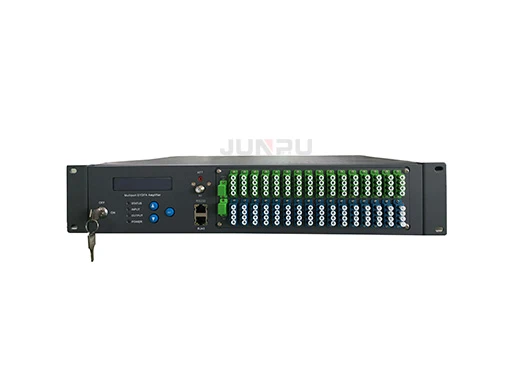

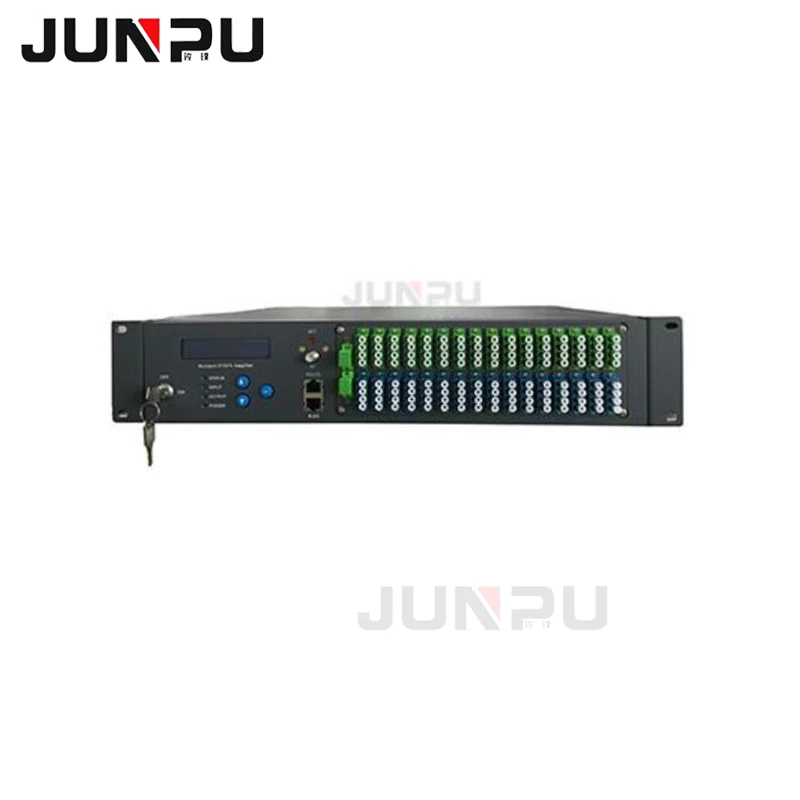

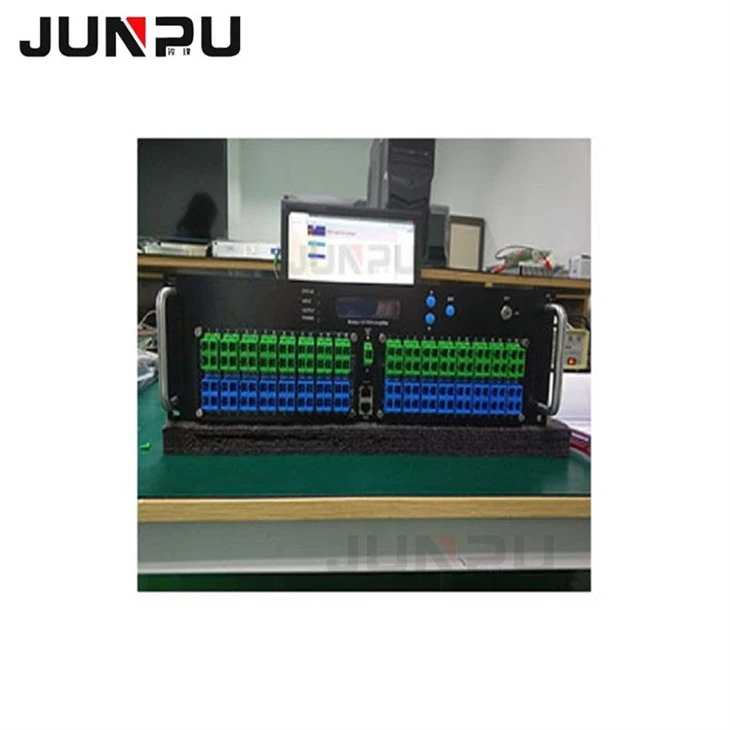

JP6420EAP (2RU) LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical port of optical amplifier can be installed in the front panel or back panel.
JP6420EAP (2RU) with carrier-class reliability and network security management, high quality, high reliability and excellent cost performance and is ideal for system integrators and system operator.
|
Parameter |
Specification |
|
Product Name |
64 Port 1550 Catv Edfa Optical Amplifier |
|
Working Wavelength |
1540 ~ 1563nm or C-band |
|
Connector Type |
Catv port: SC APC |
|
Output Optical Power |
13,14,15,16,17,18,19,20,21,22,23,24dbm |
Applications
●FTTx PON
●RFoG
Features
●1540~1565nm operating bandwidth for optical amplifier
●Each output optical port is with built-in high performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
●Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
●Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
●Multi- ports output, can built in 1310/1490/1550WDM
●Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
●Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
●With laser key to turn on/off the laser
●Led displays the working condition of the machine
●Dual power hot plug power supply for choice, 90V～250V AC or -48V DC
Details
◆High Power：Up to 2W total,1 Unit for 2000～4000 optical node
◆Low Noise Figure: Below 5.5dB ( +5dBm input)
◆Er Yb co-doped DCF Amplify Technology: Patent Pump Dump Technology
◆Low CSO: ＜-70dBc
◆23dBm×N,20dBm×N or 17dBm×N output is optional
◆Controllability and maneuverability: Dual CPU to deal Control loop and Communication separately
◆High Stability And Reliability: MTTF＞150000 Hours

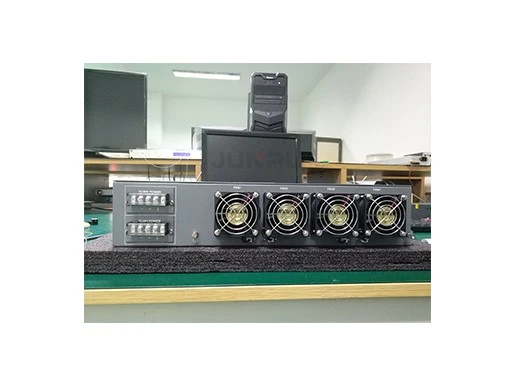

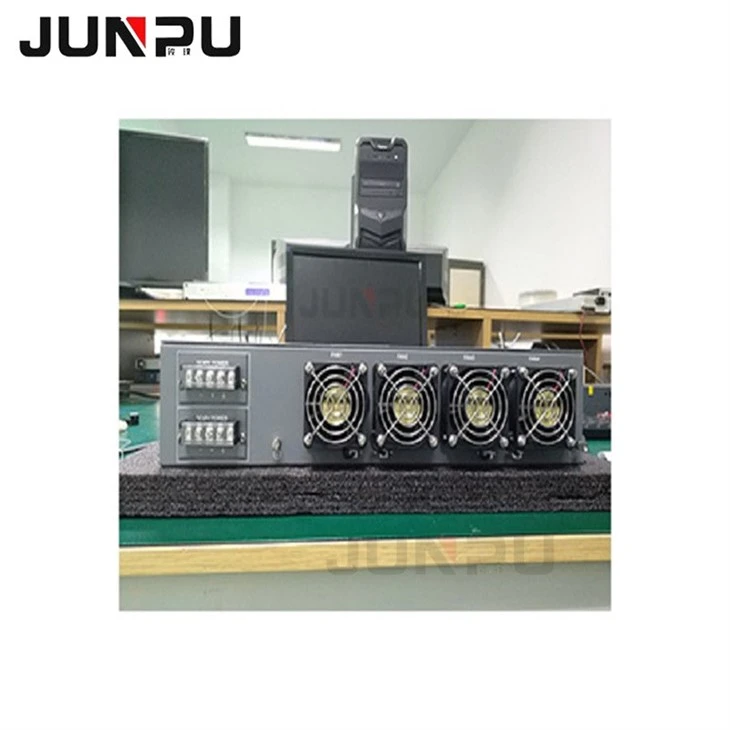

◆Redundancy Hot Swap power module: 110/220VAC and 48VDC can plug Mix
◆Perfect Network Interface: Ethernet
◆Support SNMP network management
◆Intelligent Temperature Control System: using a dedicated Temperature control chip which make cooling and power loss reduce 30% than competitors
◆Output Power can be adjusted by the network and manual
◆Integrated 1310nm, 1490nm, 1550nm WDM (Optional)
◆OEM, Module is available
