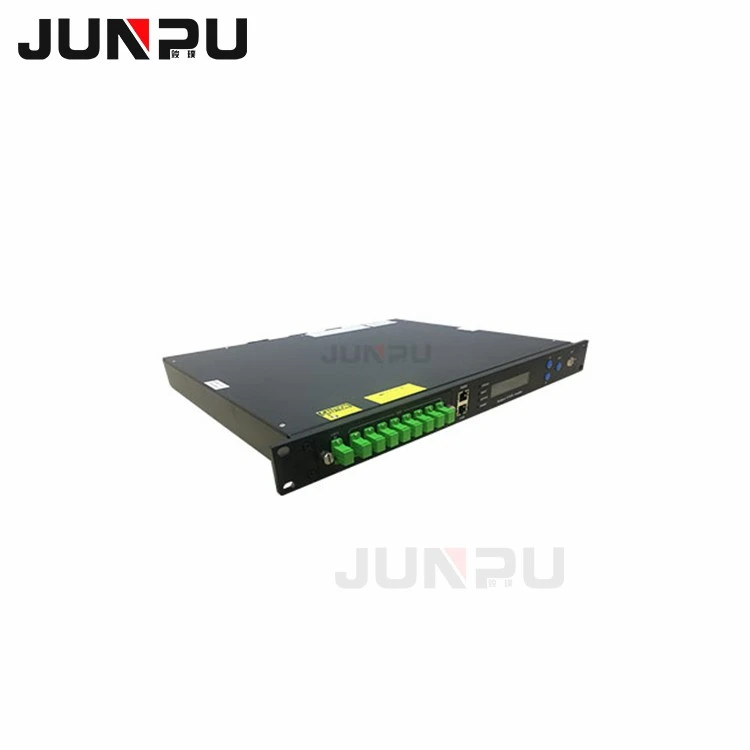

8 port EDFA WDM
The 08xx edfa wdm series high power amplifier is a high power multi-output optical fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for CATV or 1~8 continuous strip channels (ITU wavelength) applications. It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities.
It can achieve single-wavelength cable TV transmission, CWDM single-fiber three- wave, flat-gain type, DWDM; its reliable and excellent performance ratio between the main application of FTTH, FTTB, DBS, MMDS, FTTX pon, is to build CATV large Medium-sized optical fiber transmission network is an important equipment.
|
Item |
Unit |
Technical paremeter |
Supplement |
|
|
CATV operation wavelength |
nm |
1545~1565 |
CATV |
|
|
OLT pass wavelength |
nm |
1310/1490 |
PON |
|
|
Input optical power |
dBm |
-5 ~ +10 |
|
|
|
Max output power |
dBm |
40 |
|
|
|
Output power stability |
dBm |
±0.5 |
|
|
|
Noise |
dB |
≤ 5.0 |
Input power0dBm,λ=1550nm |
|
|
Return loss |
Input |
dB |
≥ 45 |
|
|
|
Output |
dB |
≥ 45 |
|
|
Optical connector |
|
SC/APC, SC/UPC |
|
|
|
C/N |
dB |
≥ 50 |
|
|
|
C/CTB |
dB |
≥ 63 |
|
|
|
C/CSO |
dB |
≥ 63 |
|
|
|
Supply voltage |
V |
AC170V~265V; AC90~135V; DC36~72V |
|
|
|
Power Consume |
W |
≤ 90 |
|
|
|
Working temperature |
℃ |
-52 |
|
|

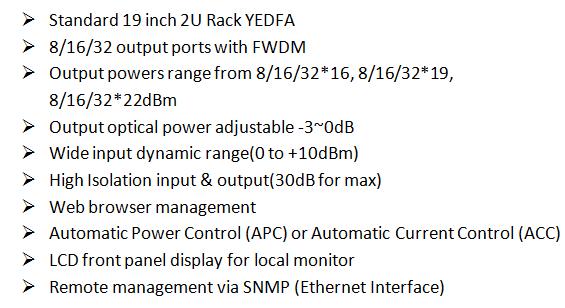

Features
Details
