FTTH New Style 16 Core Fiber Optic Terminal Distribution Box
Products Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Waterproof Optical Distribution Box is used for the functions of fusion, branching, wiring transmission, etc. of optical transmission terminals; it can effectively terminate, protect and manage optical cables. It is an indispensable device in network transmission
Easy to install: This fiber optic junction box with sufficient impact strength is firmly fixed and easy to install in different applications
180° rotatable flap: The flap of this fiber optic distribution cabinet adopts a rotatable design and can be rotated 180° freely; it is easy to operate and can adjust the angle by itself
Applicable size: 260 * 225 * 85mm, simple structure, easy to operate; package contents include: 1x12 12-port FTTH fiber optic distribution box; 12x LC fiber optic plugs; installation accessories
Scope of application: 12-port fiber optic desktop box is used in home or work areas, and the reasonable and precise internal structure protects the in-and-out optical fiber and provides safety protection for the optical fiber core
Specification
1.Environmental requirement
Working temperature:-40℃~+85℃
2.Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
Main technical datasheet
Insertion loss:≤0.15dB
UPC return loss:≥50dB
APC return loss:≥60dB
3.Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2*104MΩ/500V(DC);IR≥2*104MΩ/500V
The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
Installation

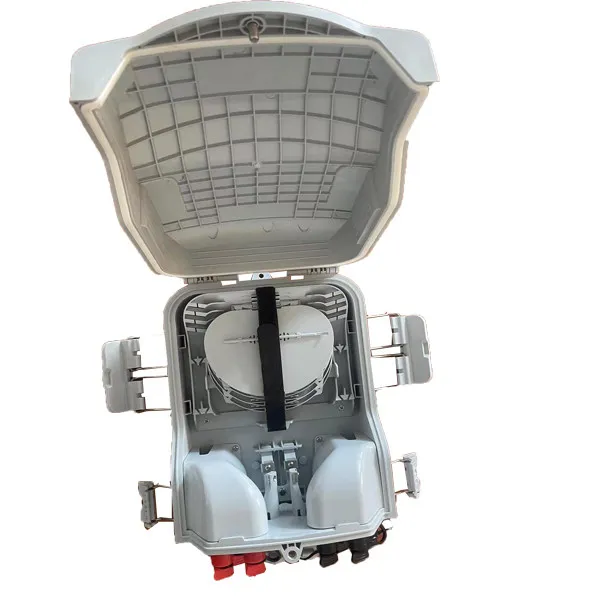

Detailed Images
