24 Port Fiber Optic Distribution Box ABS IP 65 With Wall/Pole Method SC Plug-in PLC Splitter
Details
|
Parameters |
Specification |
|
Material |
PC+ABS |
|
Size |
320*265*120mm |
|
Capacity |
SC 24 ports; 1pcs 1x16 cassette or 2pcs 1x8 plc splitter |
|
Color |
Light Blue |
|
Assemble |
Support |
Description

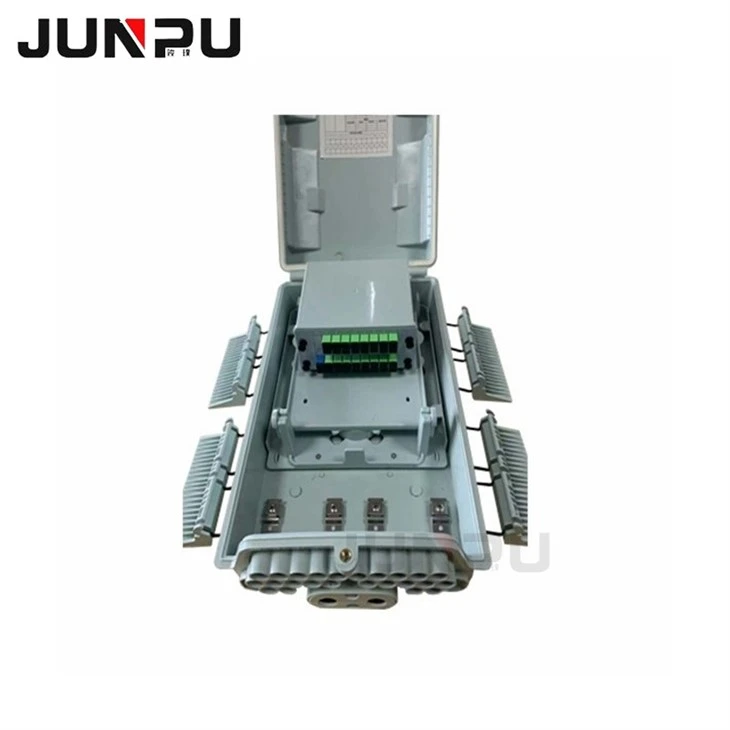

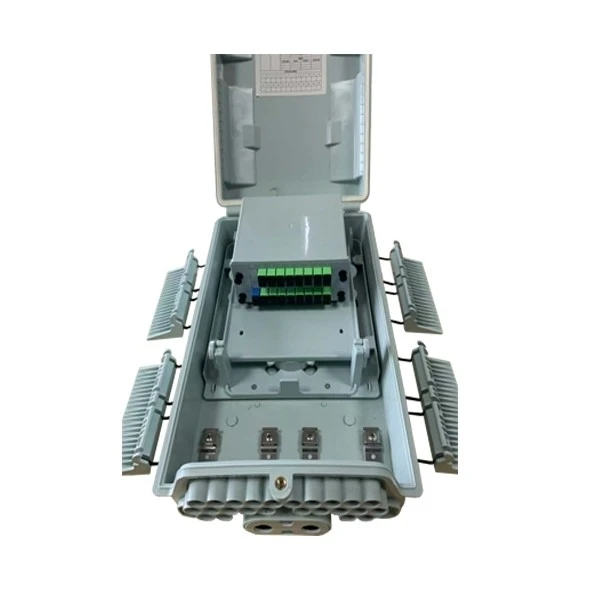

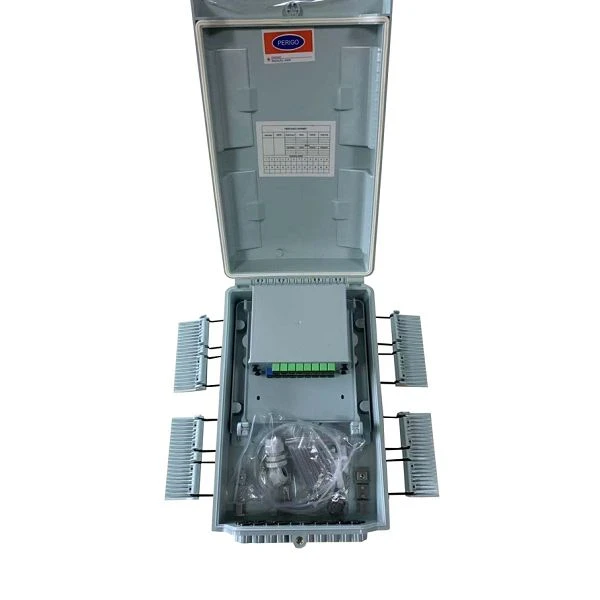

JP-I2-24OTE fiber access Distribution box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.
24 Port Fiber Termination Box with 2 input ports and 16 output ports, suitable for fiber optic cable distribution and terminal connection in FTTH or FTTB projects. It is made of engineering plastics, providing strong protection for splicing and termination; screw lock provides security; traditional two-layer design, convenient operation, the upper part is used for splitting and fiber optic cable distribution, and the lower part is used for splicing and storage. The fiber optic housing is weatherproof, designed for indoor and outdoor environments, and supports up to 24 core splicing.
