FTTH DROP CABLE SINGLE MODE
Products Description
Fiber drop cable GJYXCH-FS with two parallel steel wire and 1.2/1.0 mm self-supporting wire, g657a1, LSZH
FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.2mm steel wire. Last this cable is completed with black or white LSZH sheath.

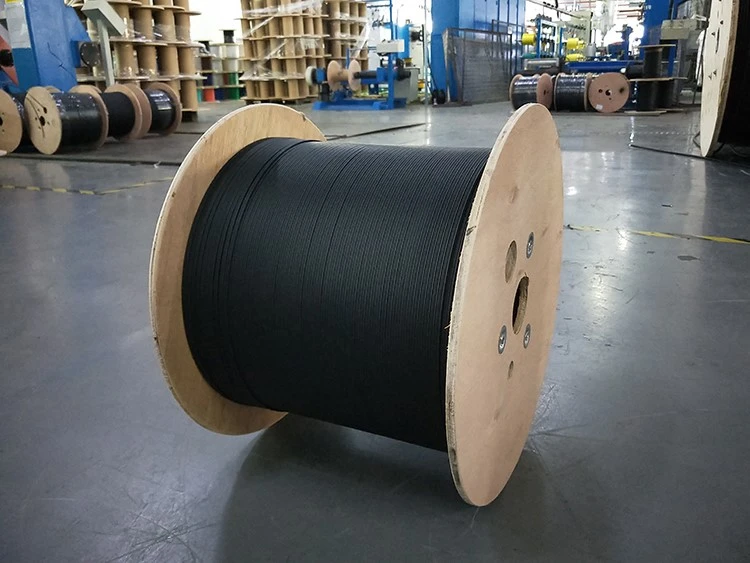

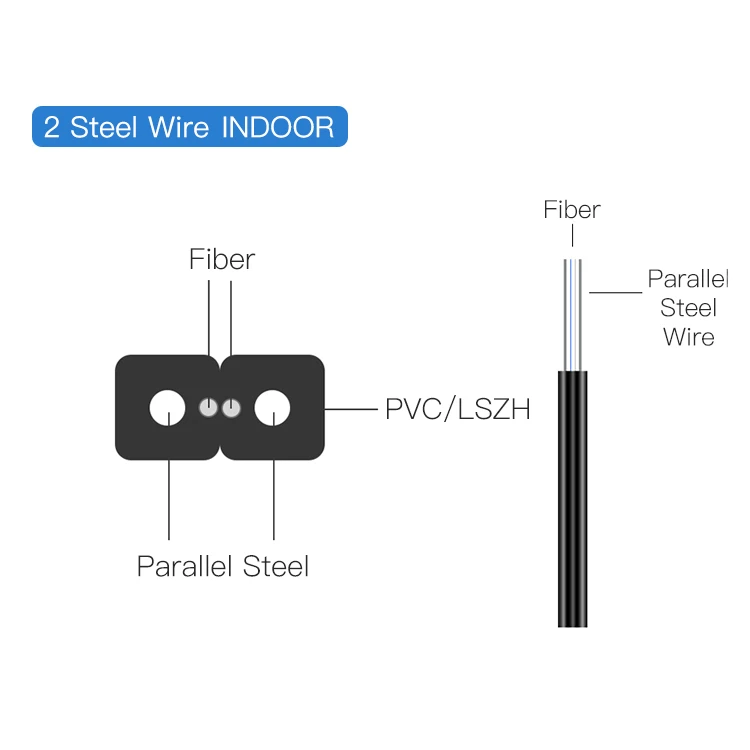

Self-supported flat drop cable. The cable cross section is a fig.8 made a steel wire strength member.
Used in access network or as access cable from outdoor to indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indoor or outdoor aerial access cabling.
Feature
1, High tensile of the diameter1.2mm steel wire meet the requirement of self-supporting and reducing the installation cost.

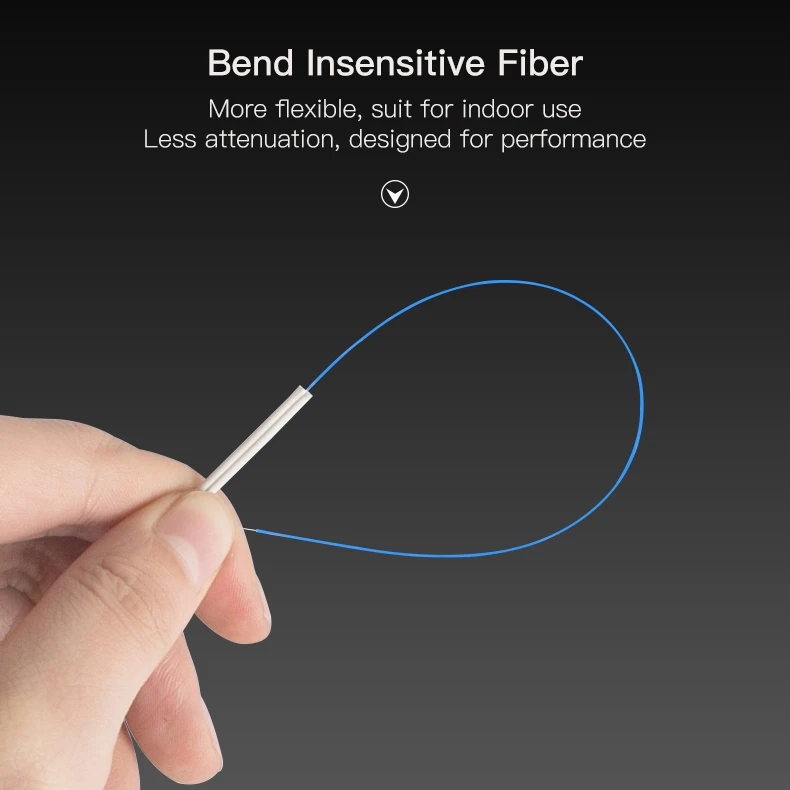

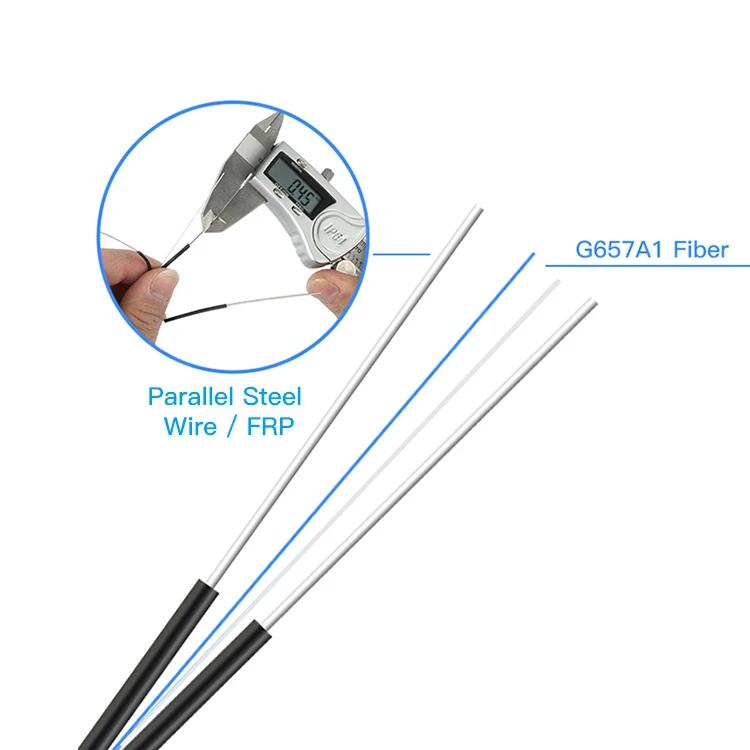

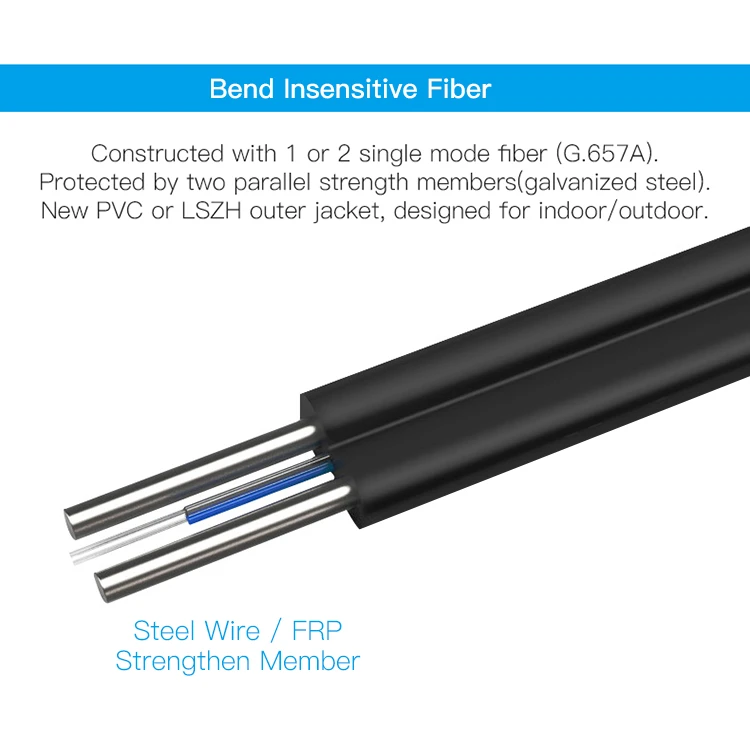

2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance

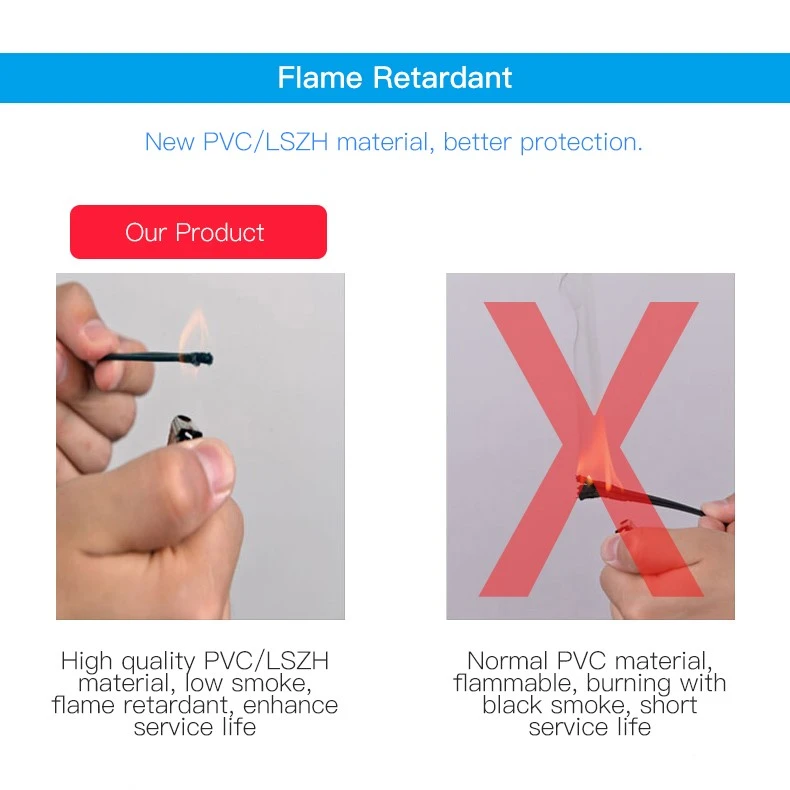

4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (4.0±0.2)x(6.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification
Application
1.Fiber to the home (FTTH)
2.Wide Area Networks (WANs)
3.Industrial, medical & military
4.CATV
5.Video
6.Active Device Termination
7.Premise Installations
8.Telecommunication Networks
Technical Data
|
Part Number |
Self-supportiing Drop Cable GJYXCH |
|
Fiber Count |
12 core |
|
Strength Member |
One self-supporting 1.2mm steel wire and Two parallel 0.45mm steel wire |
|
Cable Dimension (WxH approx.) |
(4.0±0.2)x(6.0±0.2)mm |
|
Out Jacket |
LSZH |
|
Out Jacket color |
black or white |
|
Application |
FTTH cable (Fiber to the home), used indoor, Access network |
|
Items |
Unit |
G.657A1 Specification |
|
|
Mode Field Diameter |
1310nm |
μm |
9.0±0.4 |
|
1550nm |
μm |
10.1±0.5 |
|
|
Cladding Diameter |
μm |
124.8±0.7 |
|
|
Cladding Non-Circularity |
% |
≤0.7 |
|
|
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
|
Coating Diameter |
μm |
245±5 |
|
|
Coating Non-Circularity |
% |
≤6.0 |
|
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
|
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
|
Attenuation (max.) |
1310nm |
dB/km |
≤0.35 |
|
1550nm |
dB/km |
≤0.21 |
|
|
Macro-Bending Loss |
1turn×10mm radius@1550nm |
dB |
≤0.75 |
|
1turn×10mm radius@1550nm |
dB |
≤1.5 |
|
|
NO. |
Item |
Requirement |
|
|
1 |
Allowable Tensile Strength |
Short Term |
600N |
|
Long Term |
300N |
||
|
2 |
Allowable Crush Resistance |
Long Term |
2200 (N/100mm) |
|
Long Term |
1000 (N/100mm) |
||
|
3 |
Minimum Static Bend Radius |
10 times |
|
|
4 |
Minimum Dynamic Bend Radius |
20 times |
|
|
5 |
Operation Temperature |
40℃~+70℃ |
|
|
6 |
Nominal Cable |
Diameter |
(4.0±0.2)x(6.0±0.2)mm |
|
Weight |
21.5kg/km |
||
|
7 |
Fiber Color Code |
01- Blue, 02- Orange, 03- Green, 04- Brown, 05- Grey, 06- White, 07- Red, 08- Black, |
|
