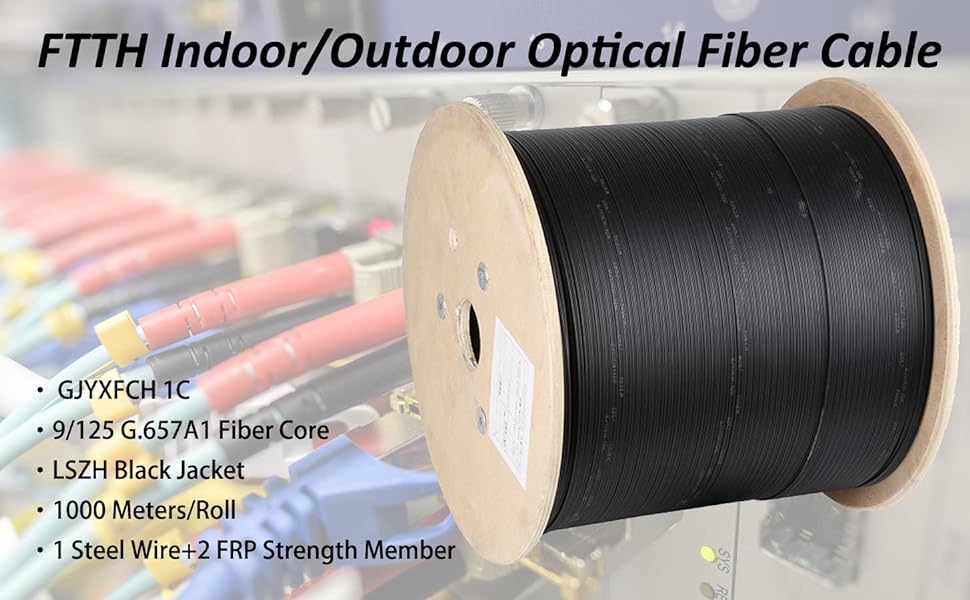

1 core Fiber Optic Drop Cable
Characteristic
●Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
●Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
●Single steel wire and FRP as the additional strength member ensures good performance of tensile strength;
●Simple structure, light weight and high practicability;
●Novel flute design, easily strip and splice, simplify the installation and maintenance.
TECHNICAL DETAILS
|
Fiber Count |
1 |
|
Cable Dimension(mm) |
2.0x5.0 |
|
Cable Weight (lb/km) |
37 |
|
Outer Jacket |
LSZH |
|
Strength Member |
1.0 Steel wire+ 2*FRP |
|
Tensile strength(N) |
360 (Long Term)--1200 (Short Term) |
|
Bending Radius(CM) |
15 (Static)--35 (Dynamic) |
|
Fiber Colour |
Blue |
|
Fiber Type |
G.657A1 |
|
Mode Field Diameter |
9.1±0.2 μm |
|
Cladding Diameter |
124.9±0.4 μm |
|
Coating Diameter |
248±0.2 μm |
|
Transmission Mode |
SMF-9/125 |
|
Optical Wave |
1310/1550(nm) |
|
Attenuation(db/km) |
≤0.4/0.30 |
|
Storage Operating Temperature |
-20℃～70℃ |
