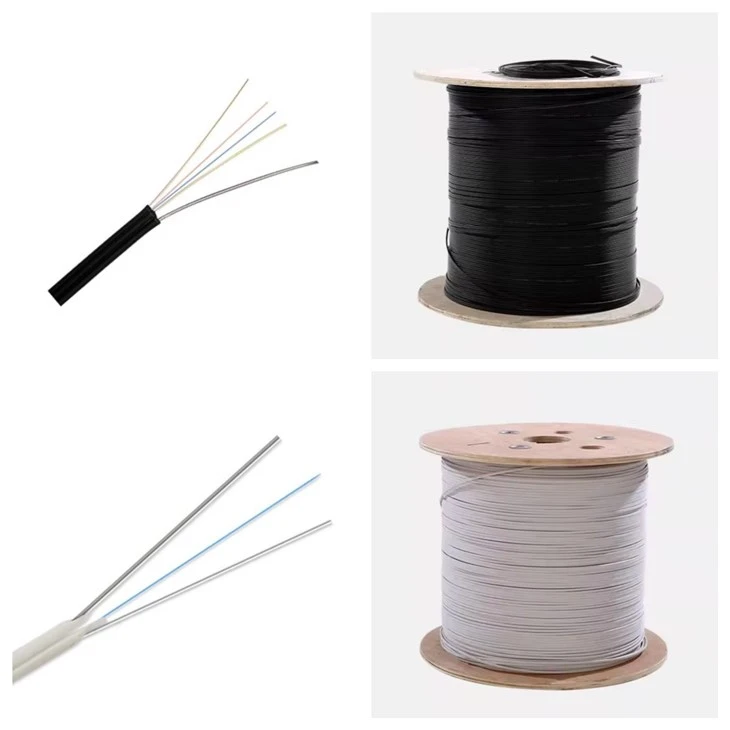

FTTH Drop Cable Indoor/Outdoor
Products Description

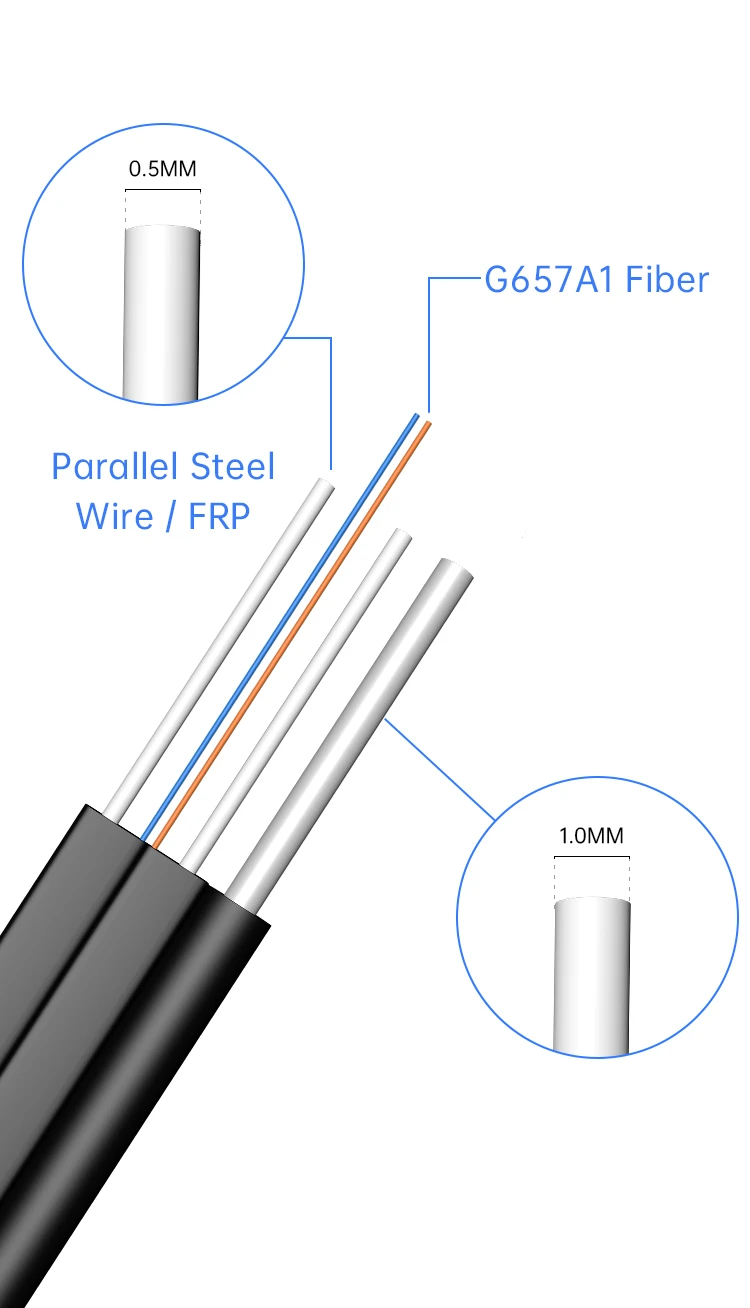

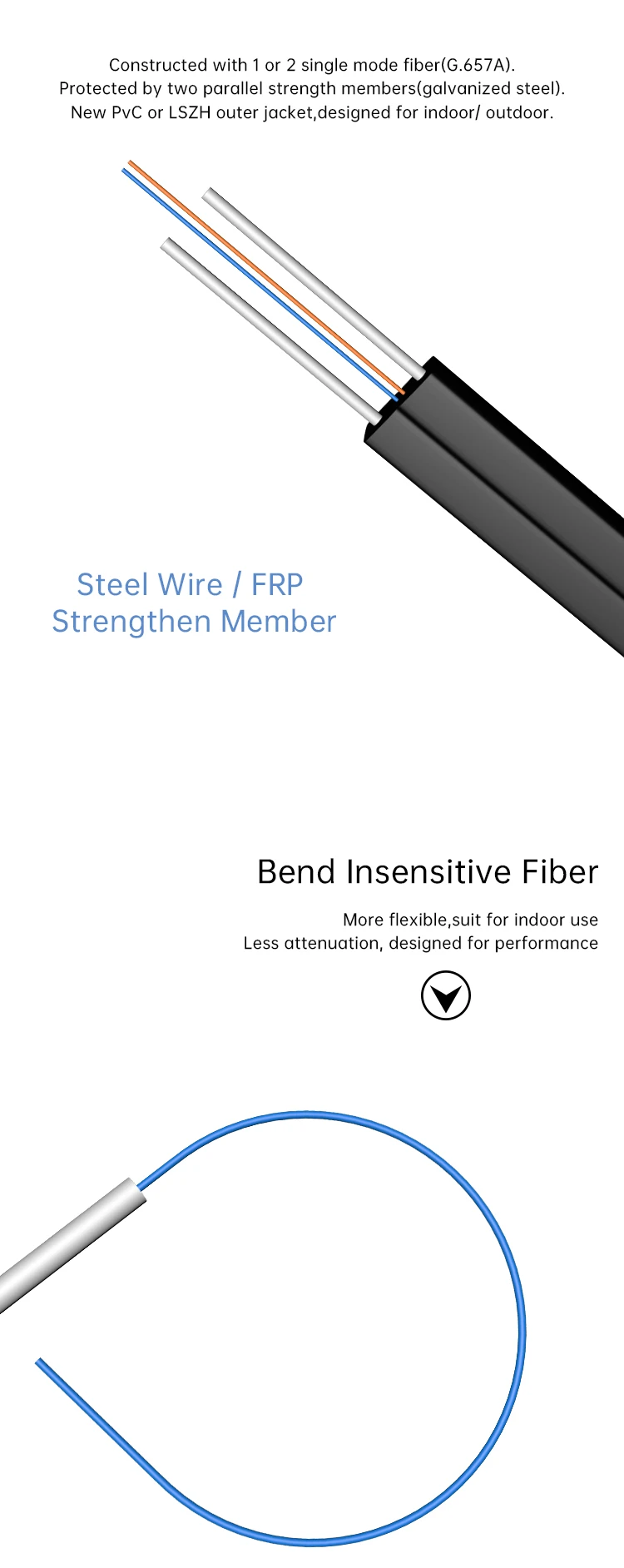

FTTH Drop Cable is all dielectric drop cable consisting of 1 to 4, 250μm individually colored optical fibers with Fiber Reinforced Plastic (FRP) strength members and UV resistant Low Smoke Zero Halogen (LSZH) or PE jacket.
Features
Singlemode options available
Compact cable construction
FRP strength member
Individually coloured optical fibers
Conforms to IEC standard

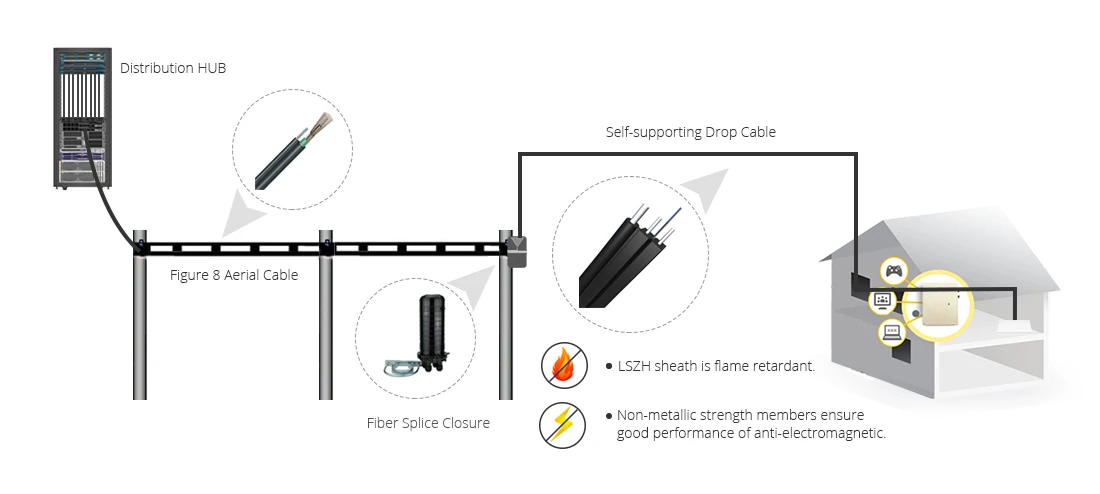

Ideal use for FTTH applications
Horizontal cabling
|
Temperature Range |
Structure(mm) |
|
|
Transport/storage temp |
-20℃~+70℃ |
|
|
Installation temp |
-5℃~+50℃ |
|
|
Operation temp |
-20℃~+70℃ |
|
|
Structural Characteristics |
7X27/0.10 |
|
|
Fiber count |
1~4 |
|
|
Strength member |
FRP(Fiber reinforce plastic rod) or steel wire |
|
|
Cable sheath |
LSZH material |
|
|
Cable sheath color |
Black |
|
