Product Details
|
Product Name |
GYXTW Fiber Optic Cable |
Fiber Count |
12 Fibers |
|
Construction |
Central Loose Tube |
Fiber Type |
Singlemode 9/125 |
|
Outer Jacket Material |
PE(Black) |
Strength Member Material |
Steel Wire |
|
High Light |
GYXTW Aerial Fiber Optic Cable G652D Aerial Fiber Optic Cable G657A overhead fiber optic cable |
||
Product Description
Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension.
Applications
1. Laying modes: Aerial & Conduit
2. Rural communication, local trunk line, CATV & computer networks system.
3. Low dispersion and attenuation
Features
●Uni-tube gel-filled construction for superior fiber protection.
●CST armorto protect cable from rodentattack and mechanical damage.
●Embedded steel wire provide desirable tensile strength and crush resistance.
●Compact, easy to install.
●UV and moisture-resistant design
|
Product Name |
GYXTW fiber optic cable |
|
Fiber Count |
12 Fibers |
|
Construction |
Central Loose Tube |
|
Fiber Type |
Singlemode 9/125 |
|
Outer Jacket Material |
PE(Black) |
|
Strength MemberMaterial |
Steel Wire |
|
Weight |
50KG/KM |
|
Armor Layer |
PSP Steel |
|
Application |
Aerial and Duct |
|
Steel Diameter |
0.8mm *2 |
|
Jacket Diameter |
8.0mm-10.0mm |
|
Jacket Material |
PE |
|
Test Wavelength |
1310/1550nm |
|
Operation temperature |
-40℃~ 85℃ |

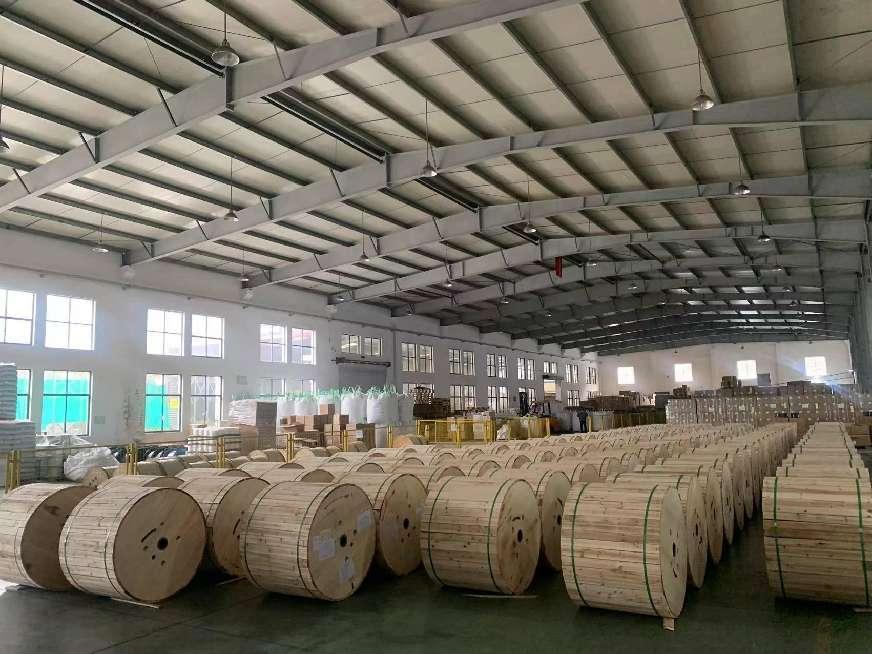

Factory and Package
