FTTH Fiber Optic Drop Cable With FRP, GJYXFH Fiber Optic Cable
Description
These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.
The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.
Technical Character
|
No. |
Items |
Unit |
Specification |
|
|
G.652D |
||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
|
1550nm |
μm |
10.4±0.5 |
||
|
2 |
Cladding Diameter |
μm |
124.8±0.7 |
|
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
|
|
5 |
Coating Diameter |
μm |
245±5 |
|
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
|
9 |
Attenuation (max.) |
1310nm |
dB/km |
≤0.36 |
|
1550nm |
dB/km |
≤0.24 |
||
Cable Parameters
|
Items |
Specifications |
|
|
Fiber Count |
2~24 |
|
|
Colored Coating Fiber |
Dimension |
250µm±15µm |
|
Color |
Blue, Orange, Green, Brown, Gray, White |
|
|
Loose Tube |
Dimension |
2.10mm±0.05mm |
|
Material |
PBT |
|
|
Color |
Natural |
|
|
Strength Member |
Diameter |
1.0mm |
|
Material |
Steel |
|
|
Outer Jacket |
Dimension |
8.0mm±0.1mm |
|
Material |
PE |
|
|
Color |
Black |
|
Mechanical and Environmental Characteristics
|
Items |
Unite |
Specifications |
|
Tensio (Long Term) |
N |
600 |
|
Tension (Short Term) |
N |
1500 |
|
Crush (Long Term) |
N/10cm |
300 |
|
Crush (Short Term) |
N/10cm |
1000 |
|
Min. Bend Radius (Dynamic) |
mm |
20D |
|
Min. Bend Radius (Static) |
mm |
10D |
|
Installation Temperature |
℃ |
-20~+60 |
|
Operating Temperature |
℃ |
-40~+70 |
|
Storage Temperature |
℃ |
-40~+70 |
Technical Parameter
|
Fiber Count |
Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
|
2~12 |
10.6 |
124 |
1000/3000 |
1000/3000 |
10D/20D |
|
14~24 |
12.0 |
147 |
1000/3000 |
1000/3000 |
10D/20D |
|
Transmission Characteristics |
|||||
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Max Attenuation (dB/km) (+20℃) |
850 nm |
|
|
3.0 |
3.3 |
|
1300 nm |
|
|
1.0 |
1.0 |
|
|
1310 nm |
0.36 |
0.4 |
|
|
|
|
1550 nm |
0.24 |
0.23 |
|
|
|
|
Cable Cute-off Wavelength (nm) |
≤1260 |
≤1450 |
|
|
|
Application
Adopted to Outdoor Aerial

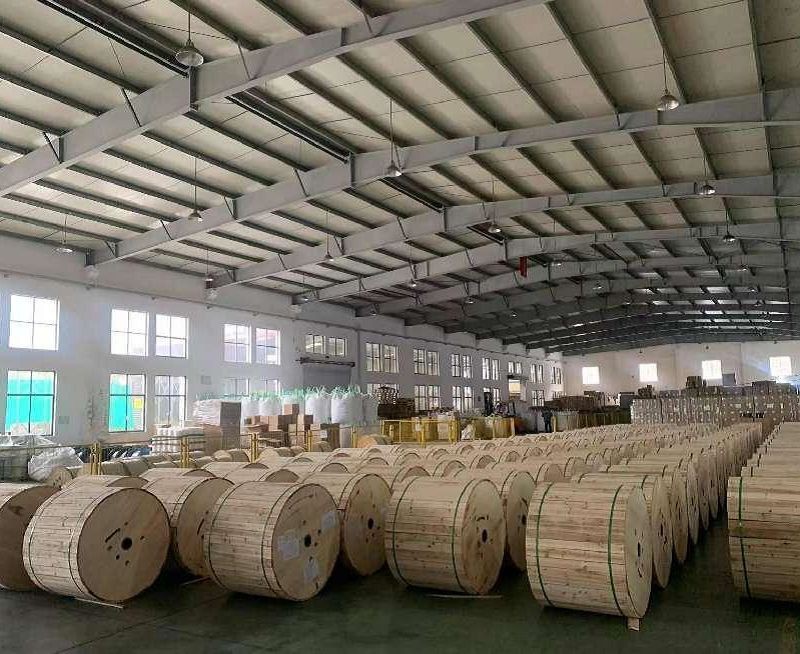

Factory and Package
