12F ASU Outdoor Fiber Cable
Products Description
This specification covers the general requirements and performance of cable, which RZ offered including optical characteristics, mechanical characteristics and geometrical characteristics and etc.
Optical fiber characteristics (FPC G.652D FIBER
|
Category |
Description |
Specifications |
|
|
G.652D |
|||
|
Optical Specifications |
Attenuation |
@1310nm |
≤0.36dB/km |
|
@1550nm |
≤0.22dB/km |
||
|
Attenuation discontinuity |
≤0.05 dB |
||
|
Attenuation vs. Wavelength |
@1285~1330nm |
≤0.05 dB/km |
|
|
@1525~1575nm |
≤0.05 dB/km |
||
|
Zero Dispersion Wavelength |
1300~1324nm |
||
|
Zero Dispersion Slope |
Max. 0.092 ps/(nm.km) |
||
|
Dispersion |
@1310nm |
≤3.5 ps/nm.km |
|
|
@1550nm |
≤18 ps/nm.km |
||
|
Cable Cutoff Wavelength(λcc) |
≤1260nm |
||
|
PMD |
≤0.20ps/km 1/2 |
||
|
Effective Group Index of |
@1310nm |
1.4675 |
|
|
@1550nm |
1.4681 |
||
|
Geometric Specifications |
Mode Field Diameter |
@1310nm |
9.2±0.4μm |
|
@1550nm |
10.4±0.8μm |
||
|
Mode field concentricity error at 1310 nm |
Not exceed 0.5μm |
||
|
Cladding Diameter |
125±1μm |
||
|
Cladding Non-Circularity |
≤1% |
||
|
Coating Diameter |
245 +/- 7μm |
||
|
Coating/Cladding Concentricity Error |
≤8μm |
||
|
Core/Cladding Concentricity Error |
≤0.8μm |
||
|
Mechanical |
Proof Test level |
≥1.0% |
|
|
Fiber Curl Radius |
≥4.0m |
||
|
Peak Coating Strip Force |
1.3~8.9N |
||

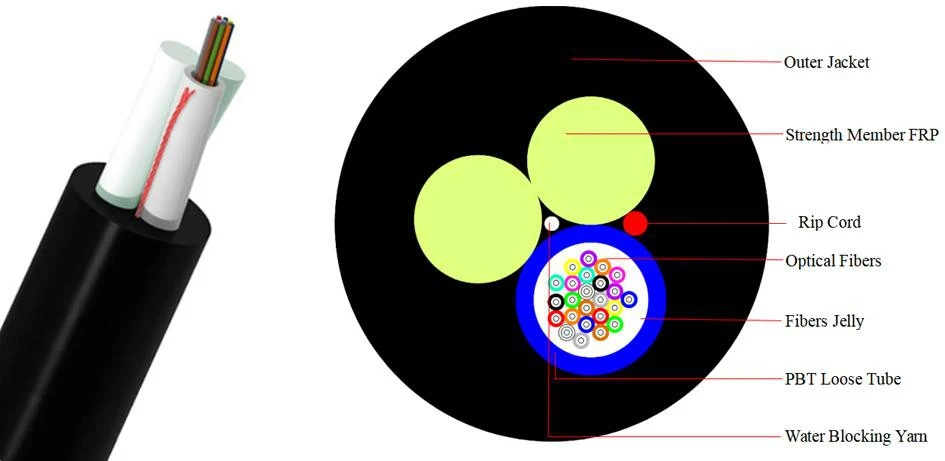

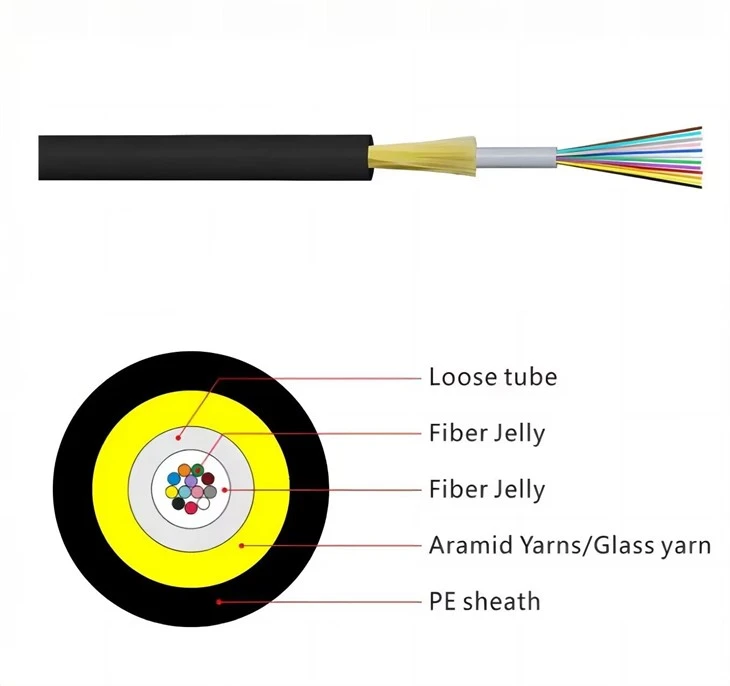

OPTICAL CABLE
OPTICAL FIBER CABLES
1-12 cores colored fiber
Non-metallic self-supporting member
Good-performance sheath materials
APPLICATION
Outdoor cabling
Suitable for aerial dropping
FEATURES
Compact structure
Able to be terminated onsite
All dielectric structure, resistant to electromagnetic interference
Easy for stripping, splicing, simplified installation and maintenance
PACKING AND DRUM
The cable is wound on a non-returnable wooden drum.
Both ends of cable are securely fastened to drum and sealed with a shrinkable cap to prevent ingress of moisture. The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.
- Cable type and number of optical fiber
- Manufacturer name
- Month and Year of Manufacture
- Cable length
The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
Drum marking, Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with following:
- Manufacture name and logo
- Cable length
- Cable type and number of fibers
- Roll way
- Gross and net weight
