Optical Splitter 1x2 With Connectors SCAPC

Optical Splitter 1x2 With Connectors SCAPC

PLC Splitter means planar light-wave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelengths (1260-1620nm) are not sensitive.

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.

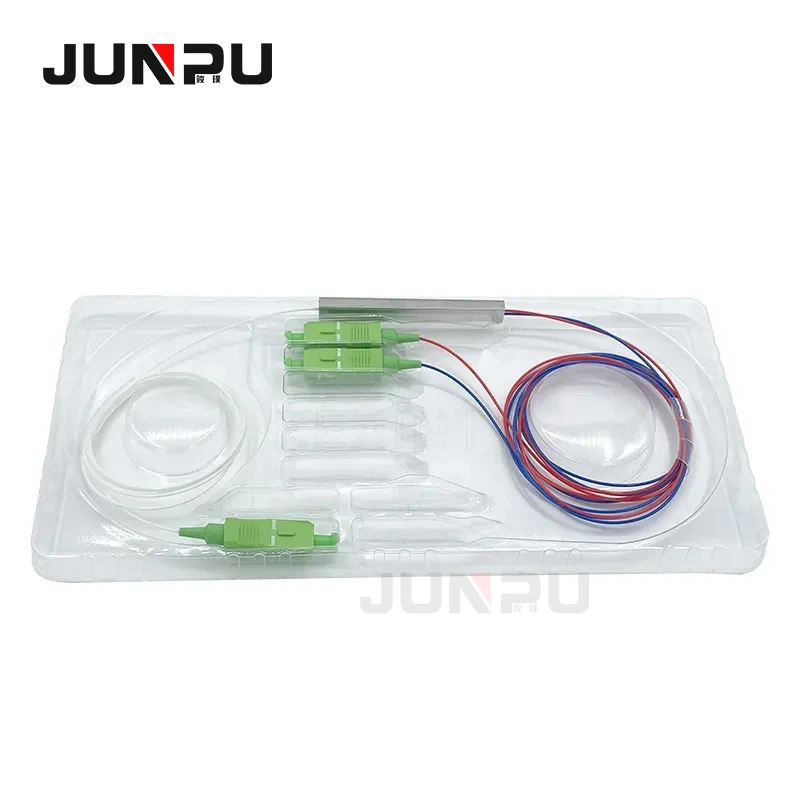

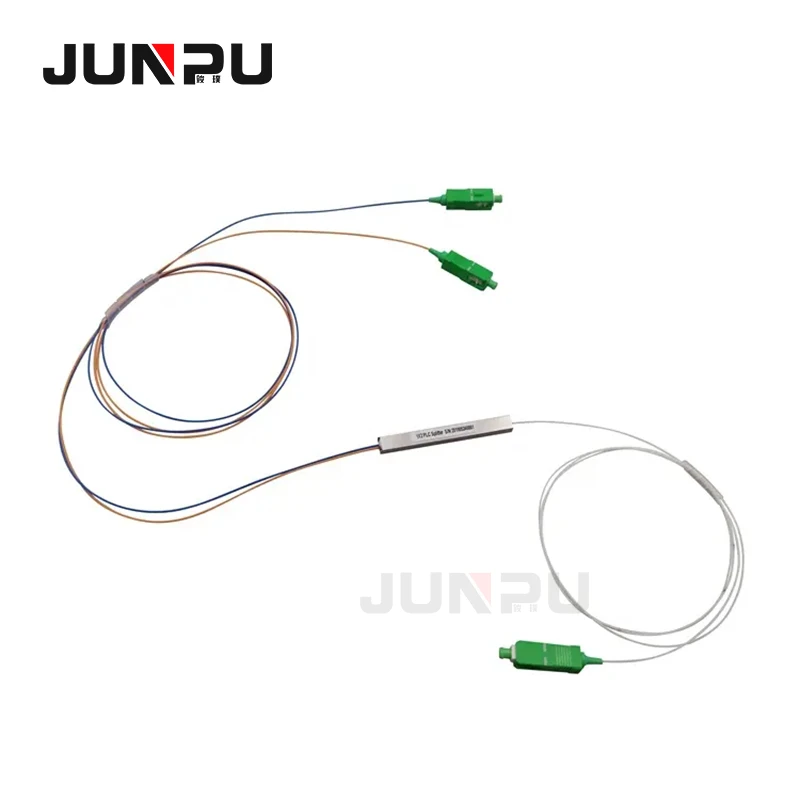

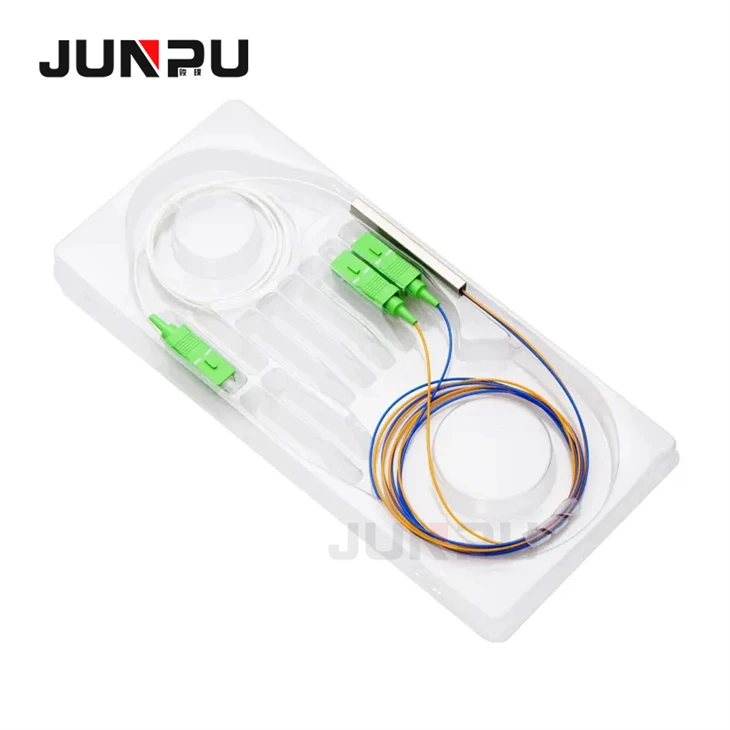

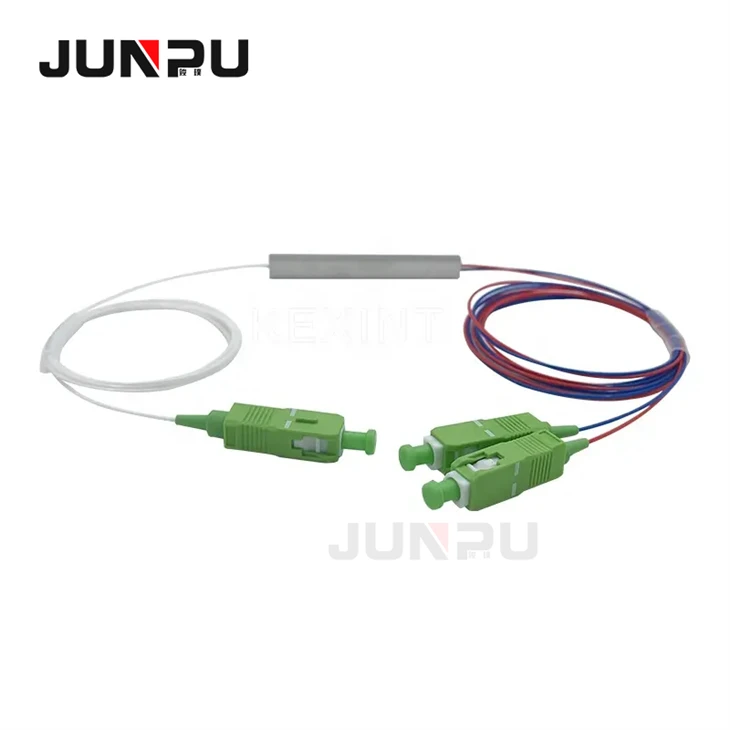

A variety of box-type and cassette splitter modules and products are available. The Optical Splitter 1x2 With Connectors SCAPC is a plastic module called an ABS box with a rugged fiber jacket and SC/APC connectors. Since the optical fiber contains SC/APC connectors, they are simple plug-and-play applications without splicing.
