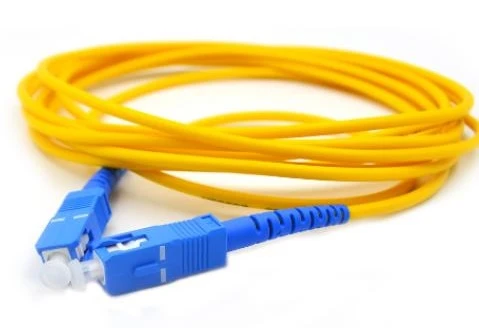

Fiber Optical Jumper Cord Simplex
Overview
Fiber optic patch cables are ideal for supporting high speed telecommunication network fiber applications. They are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4,OM5 or 0S2 fiber types are available to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed FiberChannel. Every termination is through rigorous parameter test to ensure the highest network performance.
Specification
|
Parameters |
Standard Fiber Cable Assemblies |
|
|
Fiber Type |
SM(G.652/G.657A) |
MM(OM1/OM2/OM3/OM4/OM5) |
|
Jacket Materials |
LSZH/OFNR/PVC |
|
|
Connector Type |
SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 |
|
|
Ferrule Materials |
Ceramic |
|
|
Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
|
Insertion Losss(dB) |
≤ 0.2dB |
≤ 0.3dB |
|
Return Loss(dB) |
≥50dB(PC/UPC) |
≥40dB(PC/UPC) |
|
Exchangeability |
≤ 0.2dB |
|
|
Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patchcord |
|
|
Operating Temperature (° C) |
-10~ + 70 |
|
|
Storage Temperature (° C) |
-40 ~ +85 |
|
|
Package |
1unit/bag |
|
|
All values specified are with connectors.

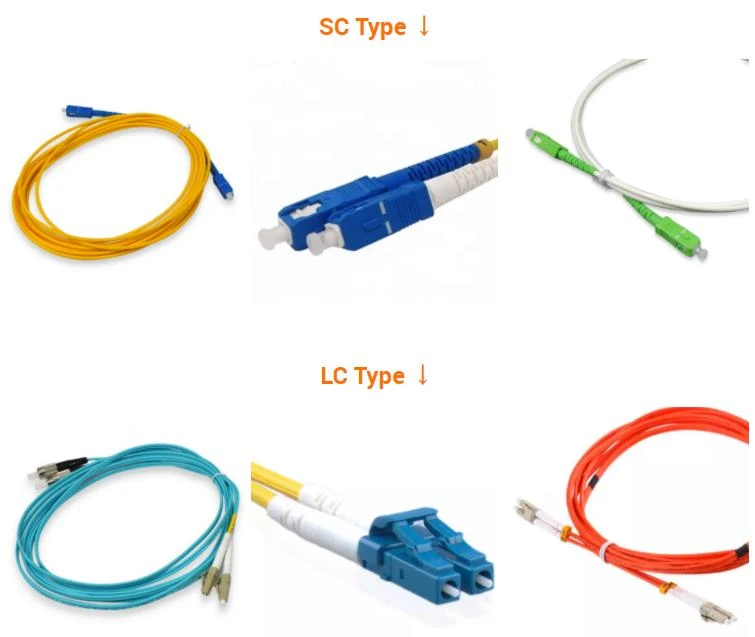

High quality zirconia ferrules. Good repeatability and interchangeability. LC, SC, ST, FC, LSH,MTRJ, MU connectors are available. Flame-retardant, rugged and durable jacketPrinting helps clarify and recognize different cables OS2, OM4,OM3, OM2, OM1, OM5 are available. Factory terminated and tested for insertion loss, return loss and end face. Unique Push-Pull Design and Function Interchangeable polarity Low insertion loss and added loss. Height of attenuation. High back loss, small volume, light weight. End-face geometry and quality superior than IEC and Telcordia standards. |
||

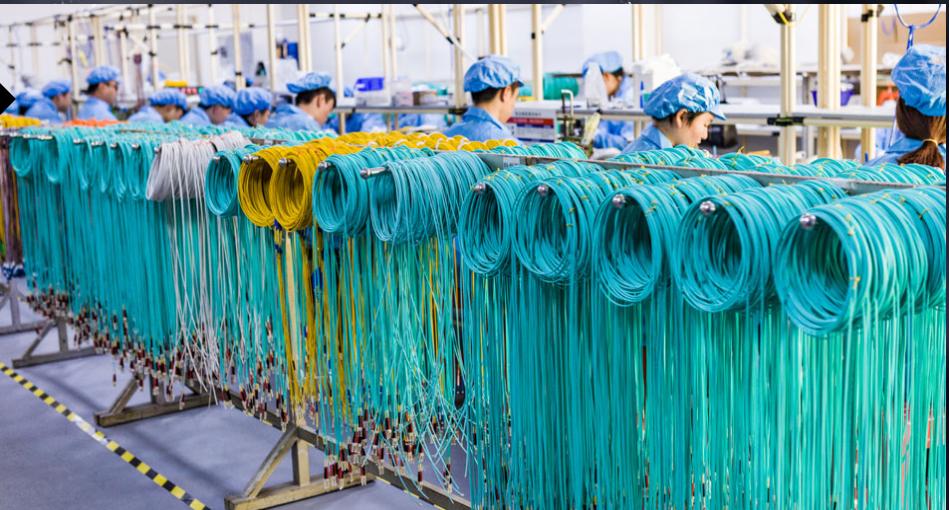

OEM Manufacture
