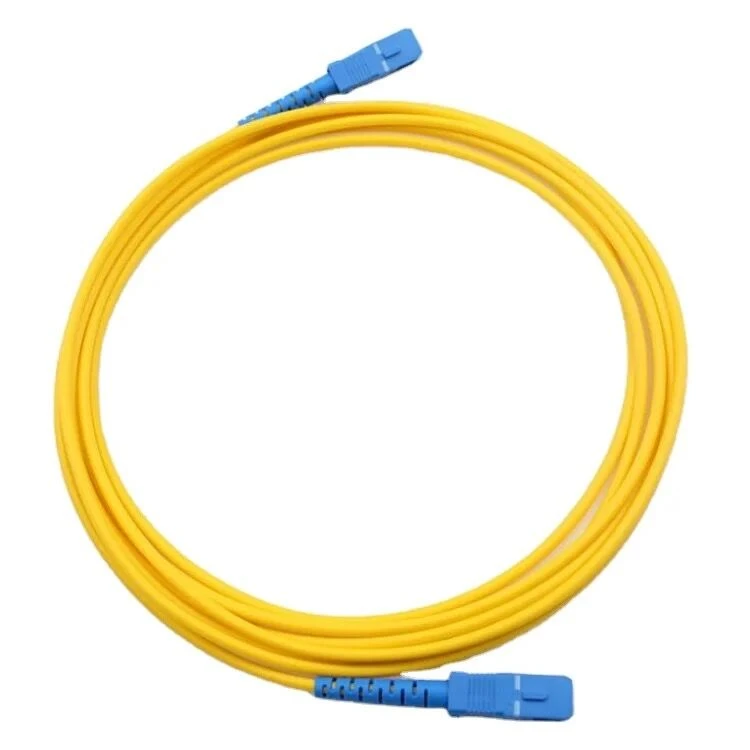

SC/APC Single Fiber Optic Patch Cord
Description
Fiber optic jumpers, are components for detachable connections between optical fibers. It accurately connects the two end faces of the optical fiber to maximize the coupling of the light energy output by the optical fiber. to the receiving fiber to form a continuous optical path.
Fiber optic patch cord can be divided into common silicon-based fiber single-mode and multi-mode according to different transmission media. Generally, single-mode optical fiber patch cords are colored yellow, and the connectors and boots are blue; the transmission distance is longer.
Performance Index
Important information
* According to the connector types：FC,SC,LC,etc
* According to the form of the end face of the ceramic ferrule, there are steps and chamfers.
* According to the fiber model into the form:：SM(SM-yellow) MM,(MM-orange);SM：G652D,G657A1,G657A2,G657B etc
* According to the cable outer diameter and structure classification, it can be divided into：simplex 0.9mm,simplex 2.0mm,duplex 2.0mm,simplex 0mm,duplex 3.0mmetc
* According to customer requirements, the connector can be divided into double core (without clip) or duplex (with clip) when the connector is double-cored. Generally, it is used in SC and LC.
Application:
1. Gigabit Ethernet
2. Telecommunication Networks
3. Active Device Termination
4. Video, Industrial, Multimedia,Military
5. Premise Installations
Features:
Low insertion loss
Good inter-insertion and temperature performance
High-temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Standard Packaging:
1 PCS per pp bag.
