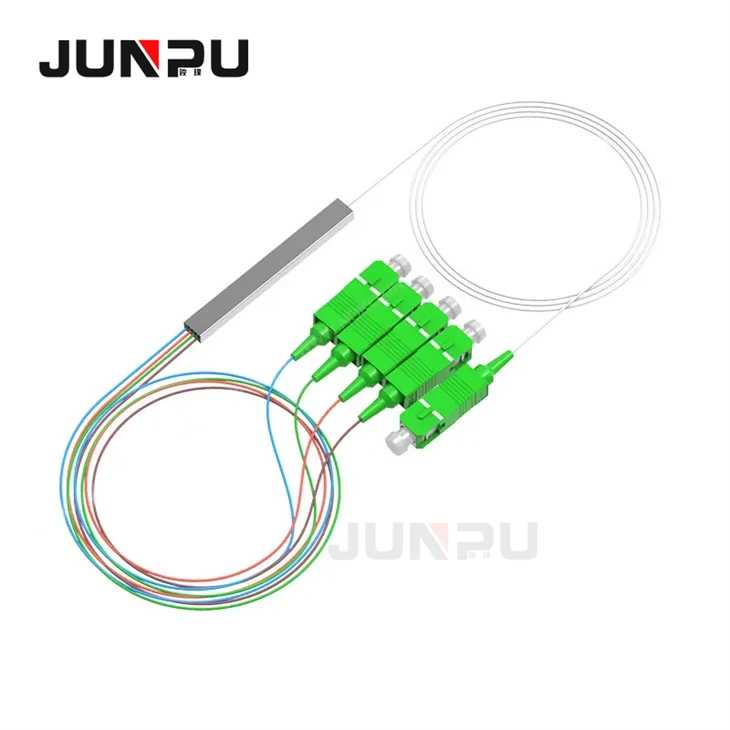

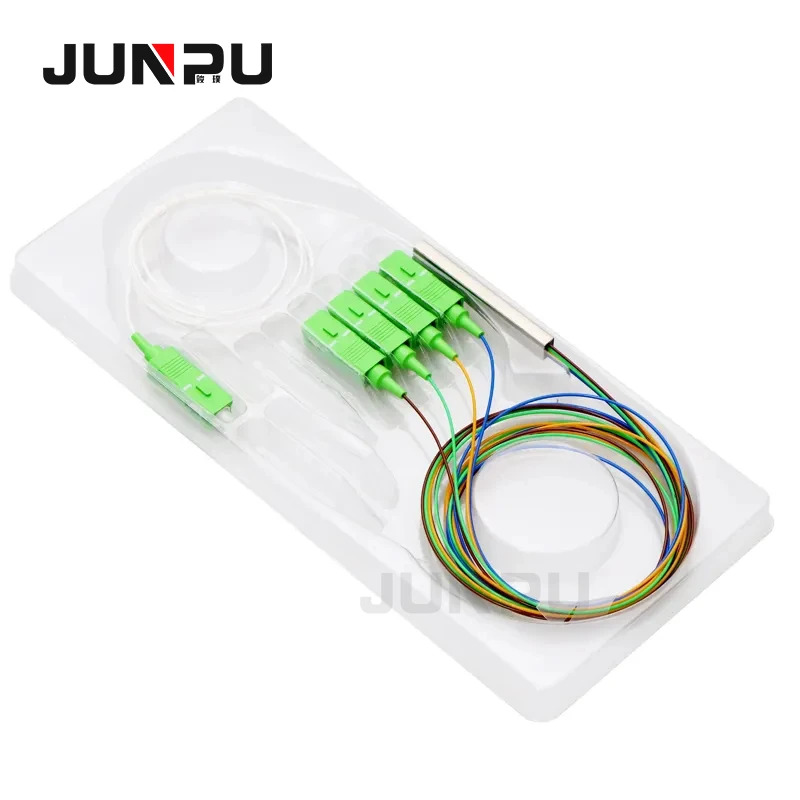

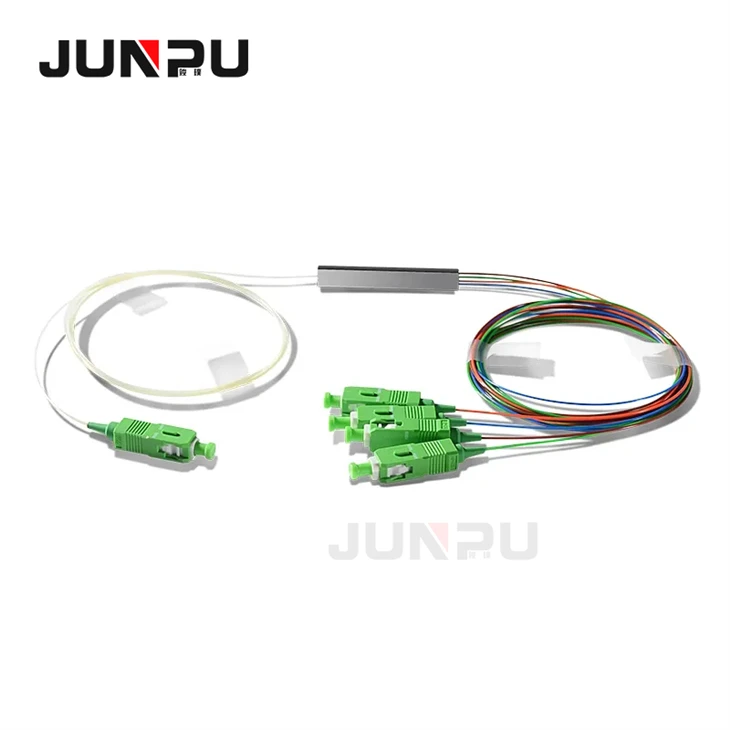

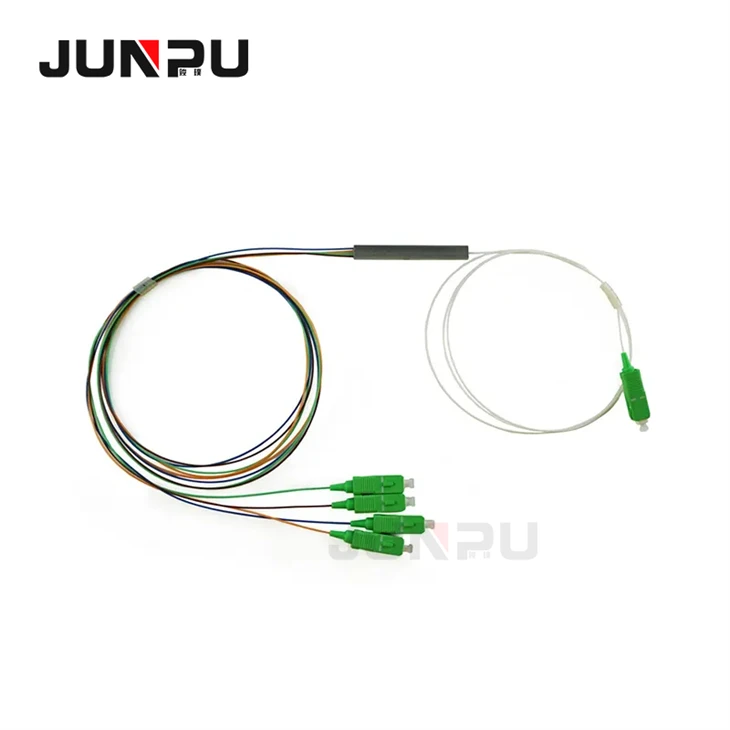

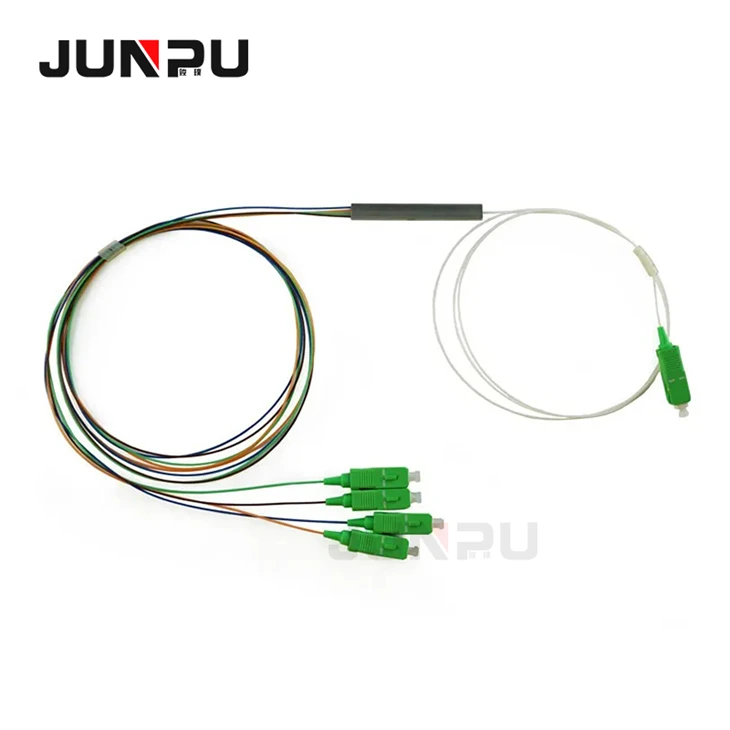

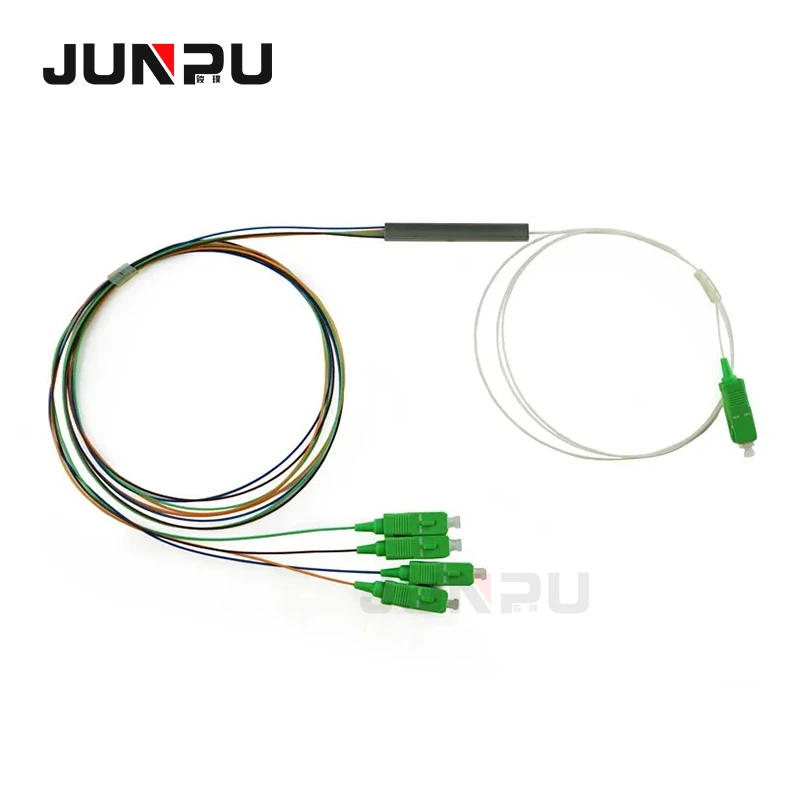

1x4 SCAPC Mini Steel Tube Fiber PLC Splitter
Description
1x4 SCAPC Mini Steel Tube Fiber PLC Splitter uses quartz optical waveguide technology to have uniform splitting ratio from one input fiber to multiple output fibers. This mini PLC splitter is a 1×4 steel tube PLC splitter with 1 input and 4 output fibers, with uniform splitting ratios for all fibers regardless of input wavelength. The mini module PLC splitter is available for 900 µm loose tube with or without connector termination. All mini PLC splitters offer excellent optical performance and reliability, meeting GR-1221-CORE and GR-1209-CORE specifications.
PLC Splitter is one of the most important passive components in the optical fiber link. It is an optical fiber splicing device with many terminals and many output terminals. Among them, the design and assembly of the three most important components, the input, output and chip of the optical fiber array, play an important role in the stable and normal operation of the PLC Splitter.
Performance Index
Specifications:
| Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) |
| Fiber | 9/125 um SMF-28e or customer appointment | |||||
| Operating Wavelength(nm) | 1260~1650(nm) | |||||
| Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB |
| Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB |
| Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB |
| Return Loss | UPC≥50dB APC≥60dB | |||||
| Directivity | ≥55dB | |||||
| Working Temperature(ºC) | -40°C to +85°C | |||||
Features
Low insertion loss
Low polarization correlation loss
Compact and exquisite design
Good separation uniformity
Wide working wavelength range: from 1260nm to 1650nm
Wide operating temperature range: from-40℃ to 85℃
Application
Fiber to home system
Passive optical network (PON)
Cable TV network
Other optical signal separation systems
