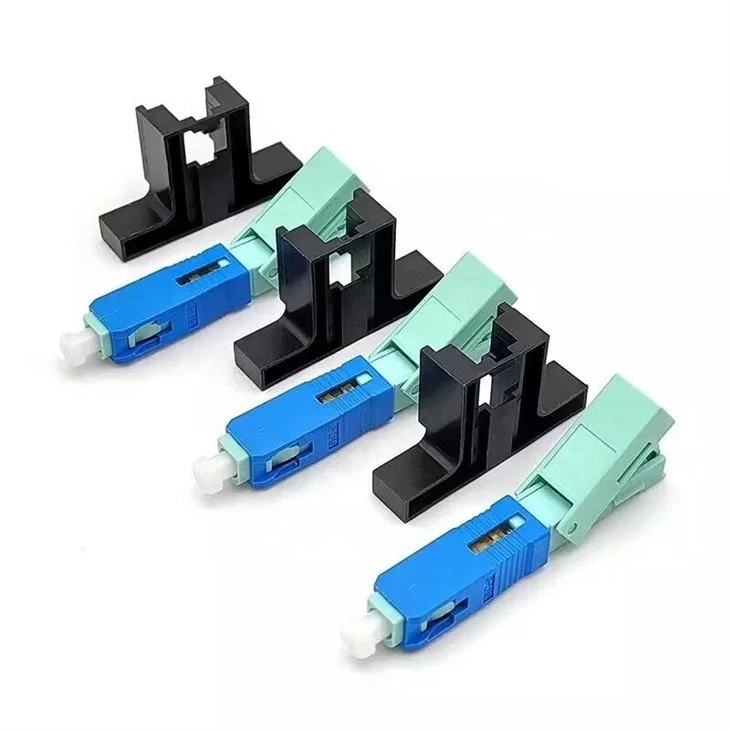

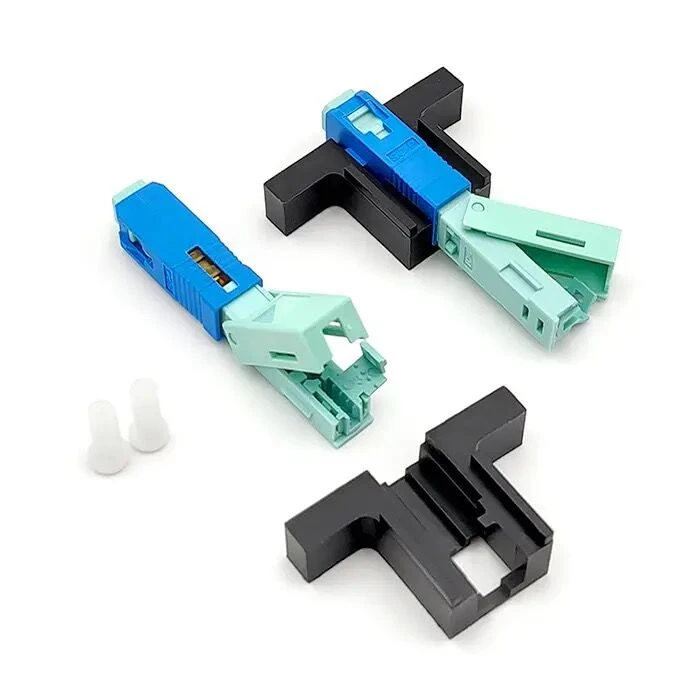

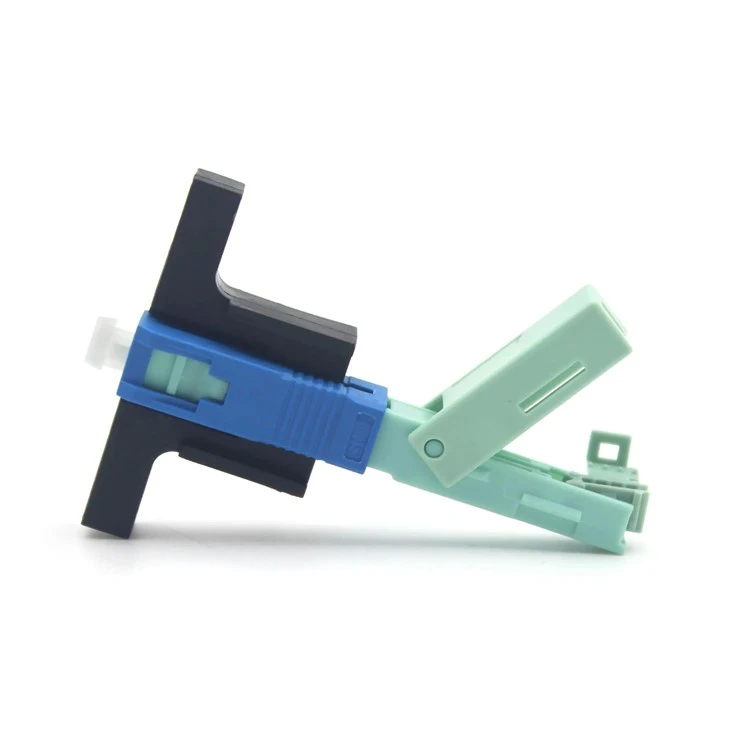

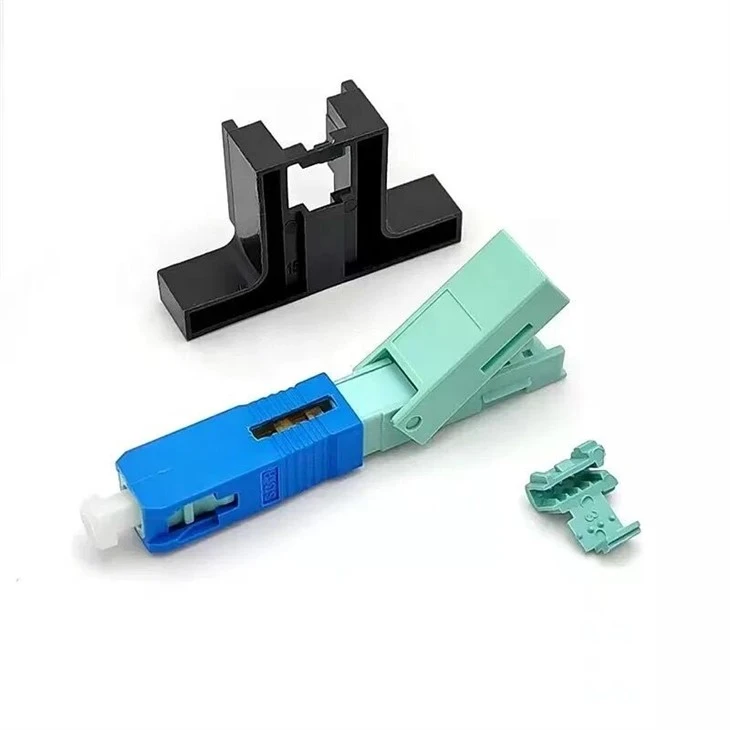

SC Upc Fiber Optical Fast Connector
Products Description
The fast connector mainly used for quick installation on site, to achieve rapid connecting between two optical fibers.The JFOFC-PSCB55A and JFOFC-PSCB60A type fast connector length produced by JFOPT is availabe in 55mm and 60mm, which can be matched with various cables.
Application
|
Application
|
* It is simple and accurate to complete the standard end of optical fiber and reaching the physical stable connection of optical fiber.
* Applicable for φ0.25 mm &φ0.90 mm fiber *Application :FTTH FTTB Fiber cabling system |
Specification
|
Specification
|
*Length of connector: 60mm 55mm 50mm optional
*Optical fiber diameter 125μm *Tight buffer diameter 250μm & 900μm *Operation time about 10s (without fiber cut) *Insert loss ≤ 0. 3 dB(1310nm & 1490nm& 1550nm ) *Return loss ≥50dB *Fastening strength of naked fiber >5 N IL≤ 0.1dB *Clamping force of fiber with tight buffer >8 N IL≤ 0.1dB *Using temperature -40- +75 ℃ *Reusability (5 times) IL ≤ 0.5dB |

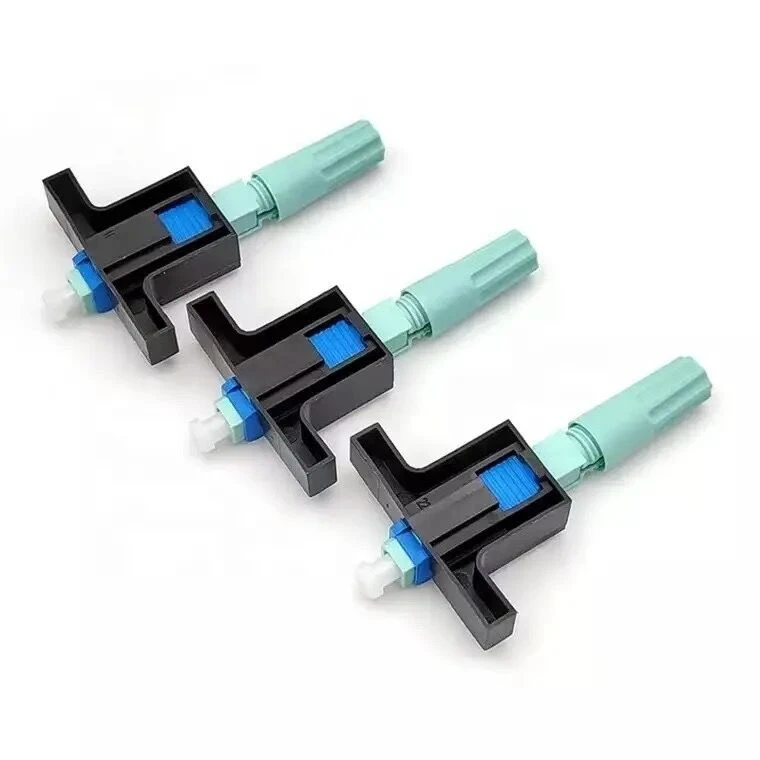

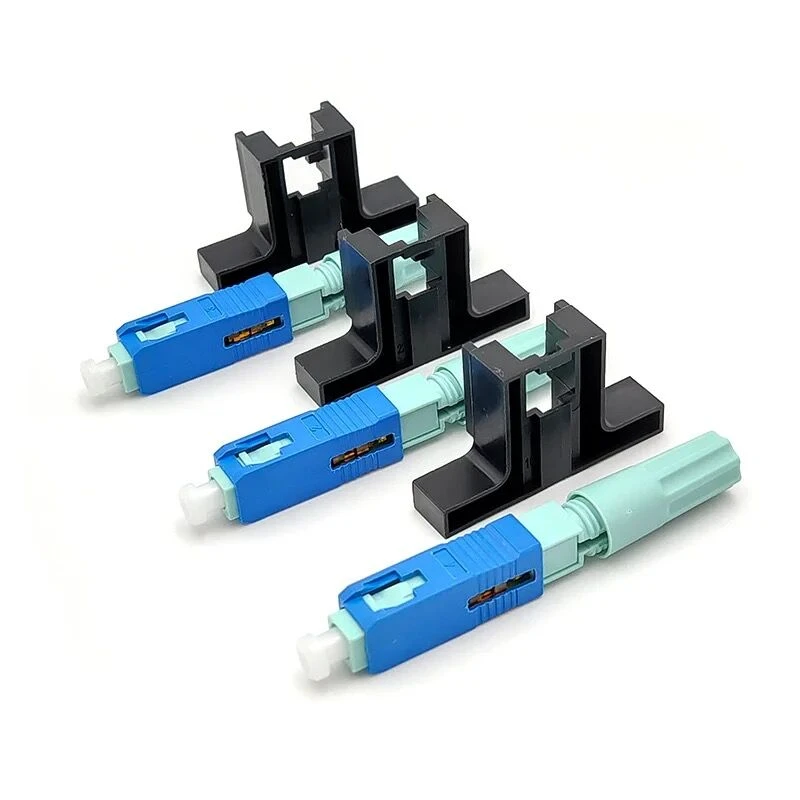

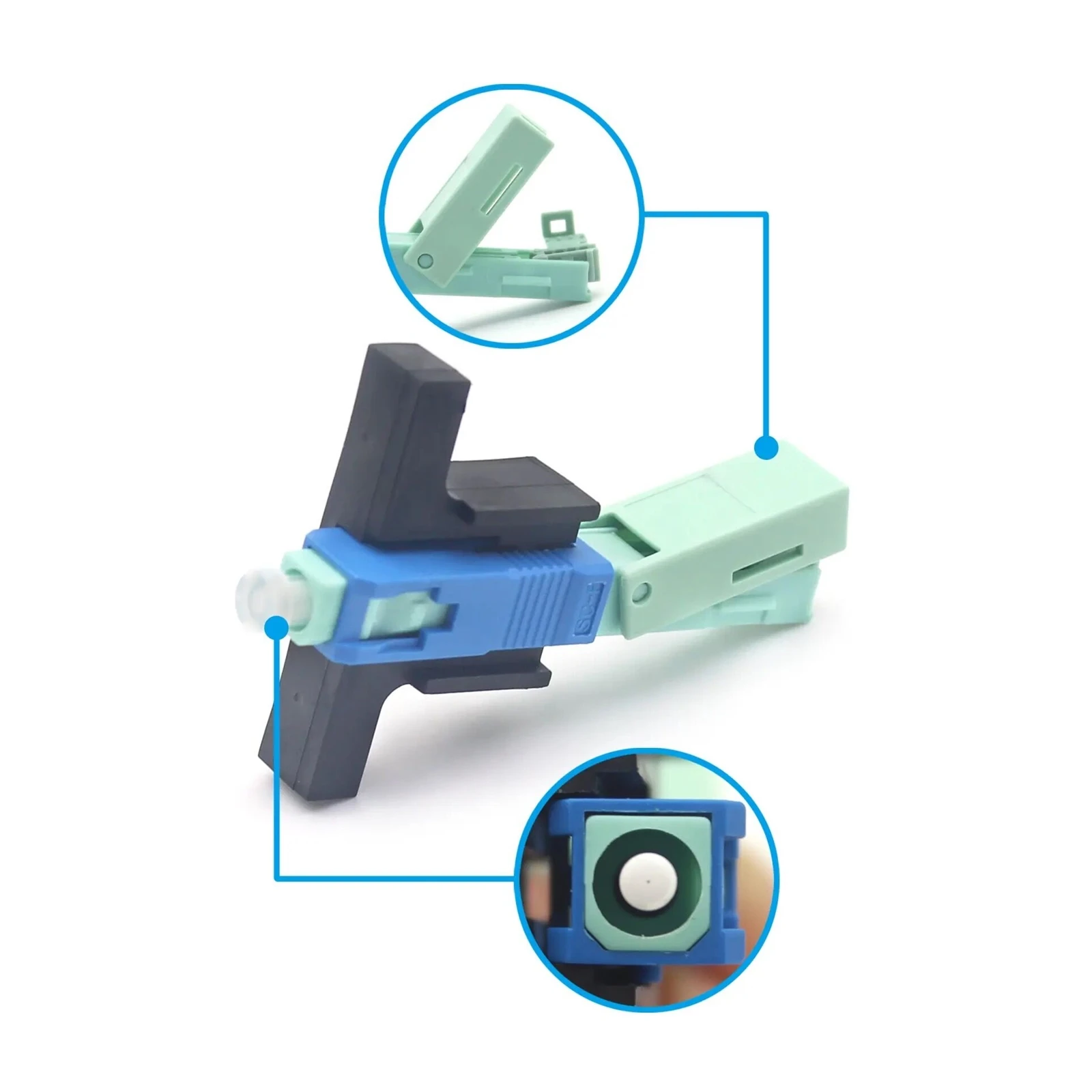

Detailed images

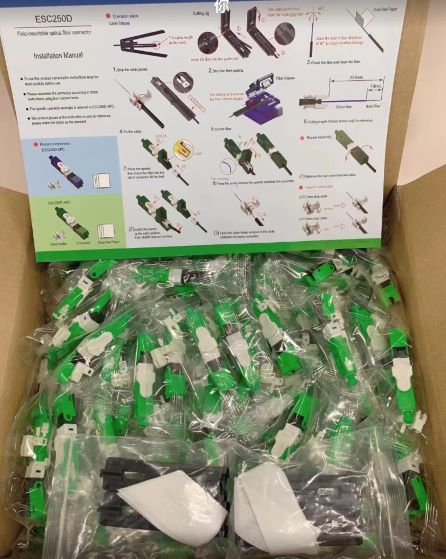

Packing
Our Products
