Fiber Optical Fast Cold Connector
Description
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing, this connector during the installation process does not require any adhesive and curing process. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule, They are widely used in FTTx, Connecting up Renovation of Computer/controlling Room applications.
Spesifications
|
Available connector type
|
LC,SC,FC,ST,MTRJ
|
|
Boot type
|
0.9mm/2.0mm/3.0mm fiber cable
|
|
Fiber Type
|
Singlemode, Multimode
|
|
Insertion loss (db)
|
<= 0.3 db (typical)
|
|
Return loss(db)
|
>= 50db
|
|
Polishing type
|
UPC and APC
|
|
Reusable Times
|
>10 times
|
|
Connection Method
|
Push - on
|
|
Storage/Operating Temperature
|
-40°C to + 85°C
|

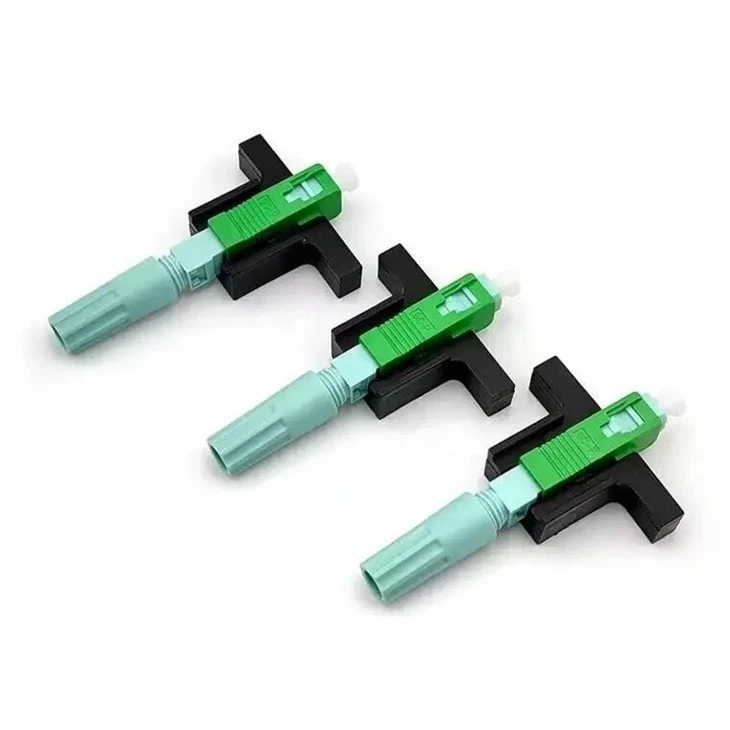

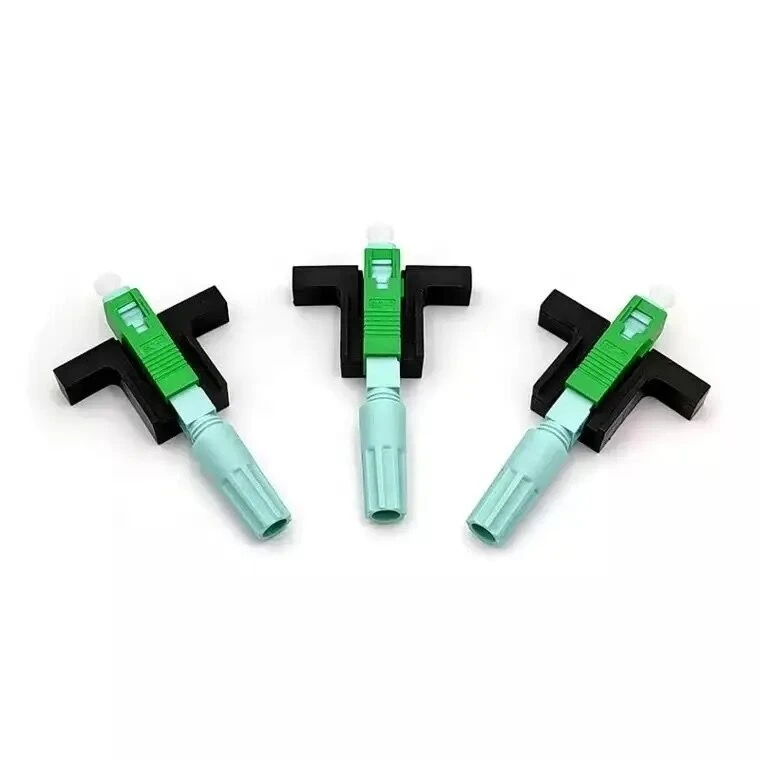

Port Type: SC for APC end face
Color: Green
Insertion Loss: <0.3dB
Return Loss: >50dB
Pulling Tension: 20N
Operating Temperature: -40℃~75℃
Features
【Installation Preparation】
1. Remove the dust cap and put the optical cable through the cap.
2. Strip off the coating of cable and retain 50 mm fiber with coating layer.
3. Fix 21-25mm fiber with coating by the fixed-length cutting instrument, then cut off the fiber which is out of the length fixing instrument.
4. Clean the residual fiber by dust free cloth with alcohol.
【Cold Connecting Process】
5. Cut the bare fiber by optical fiber cutter, retain 10 mm bare fiber.
6. Put the bear fiber through the rear of the connector and make the fiber a little bending.

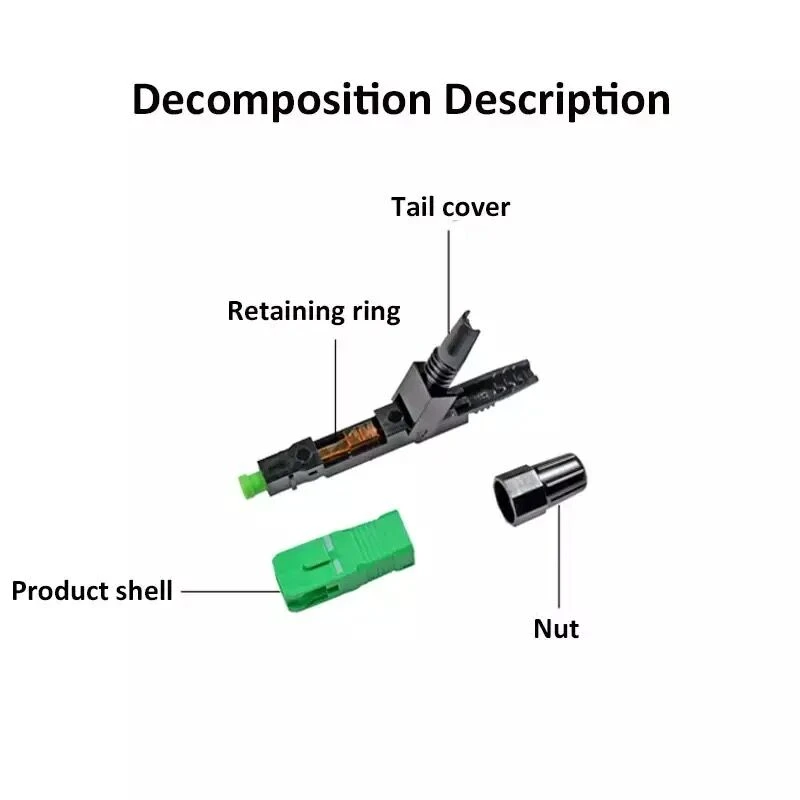

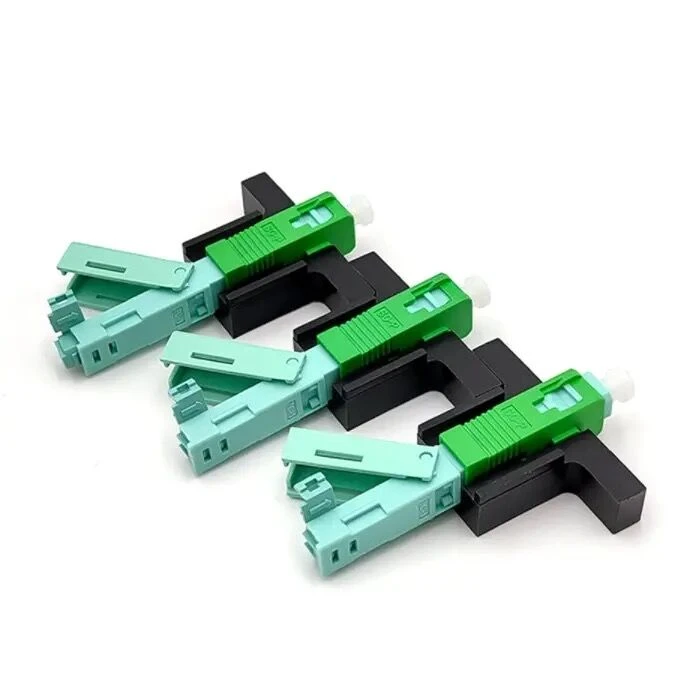

7. Clamp the fiber with the tail cover and screw the dustl cap.
8. Shift up switch bottom block to the top , clamp and lock the bare fiber.
9. Install the SC Housing and done
Application
2. Local Area Networks(LANs)
3. Data Processing Networks
4. Active Device Termination
5. Premise Installations
