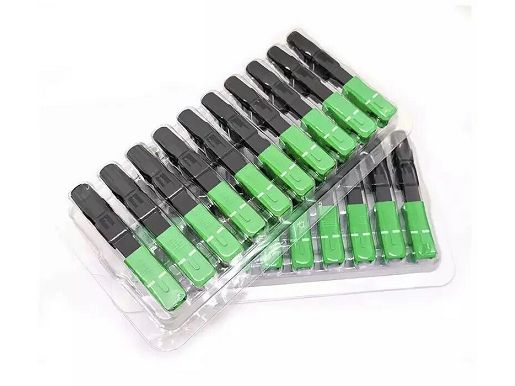

SC APC Fast Connector 60mm
JUNPU Fast Connectors are factory pre/polished, field installable connectors that completely eliminate the need for hand polishing in the field)
The fast connector has easy assembly and excellent stability features without further processing, such as polishing, adhesives to facilitate the termination of the fiber in the field and working hard to secure space environment alone can access for assembling like pole, manholes)
An addition, it can be reduced the defect rate dramatically by worker's connection error, due to being able to reconnected)
|
Applicable for |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
|
Optical fiber diameter |
φ125um (657A&657B) |
|
Tight buffer diameter |
φ250um |
|
Fiber mode |
Single mode |
|
Operation time |
About 10s (exclude fiber cut) |
|
Insert loss |
≤0.5dB (1310nm & 1550nm) |
|
Return loss |
≥45dB |
|
Fastening strength of naked fiber |
≥ 5N |
Applications
●Patch panels
●Distribution frames
●Maintenance or emergency restoration of fiber networks
●FTTH Outlets
●Connection at the desk for LAN environments
Features
1. No special assembling tool)
2. Easy for assembling with mechanical splice and no polishing)
3. Easy for learning technology by a simple assembling method (within 1 and half minutes))
4. Minimize the defect rate by features of removal and reusable)
