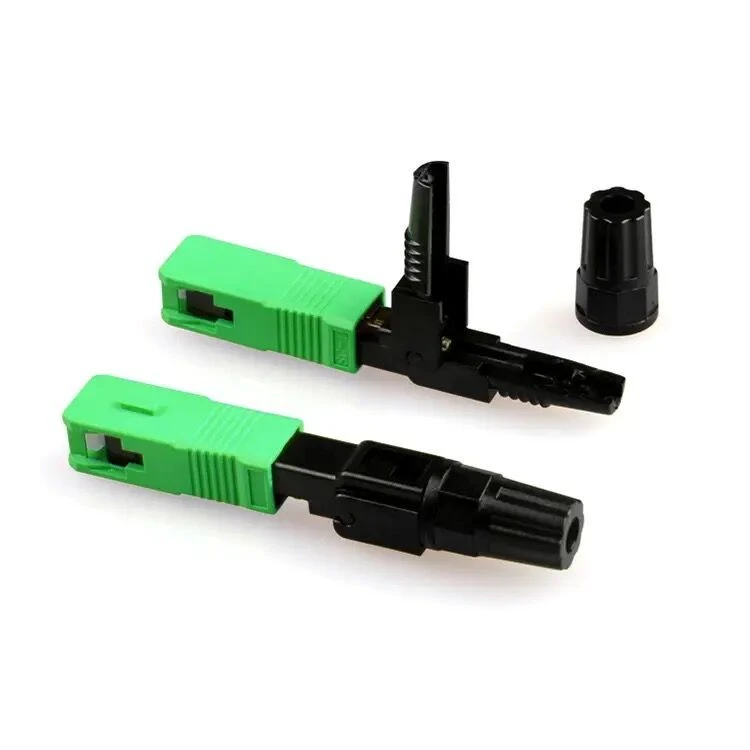

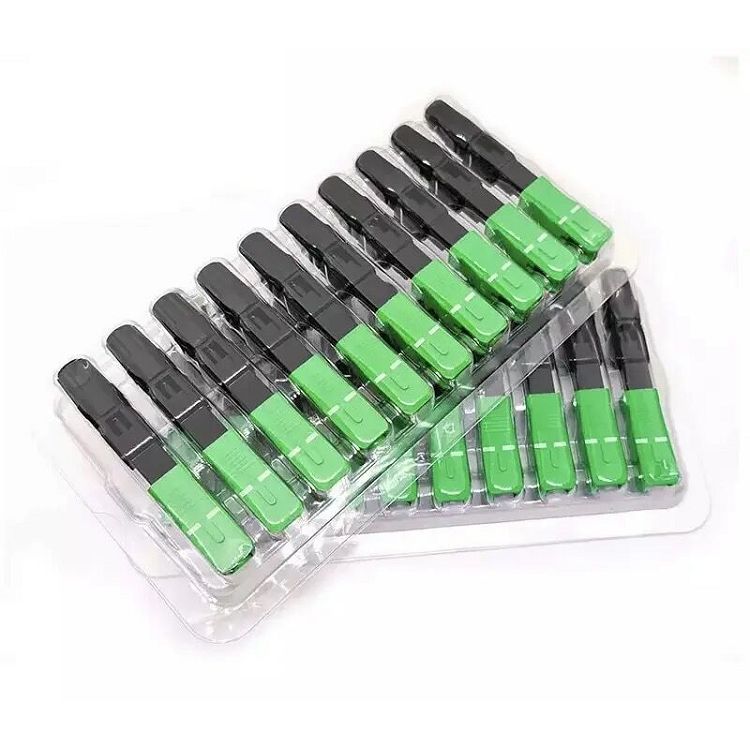

SC APC Fast Connector 55mm
Field Assembly SC connector can provide a quick and easy termination of fibers in the field and options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens.
|
Applicable for |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
|
Optical fiber diameter |
φ125um (657A&657B) |
|
Tight buffer diameter |
φ250um |
|
Fiber mode |
Single mode |
|
Operation time |
About 10s (exclude fiber cut) |
|
Insert loss |
≤0.5dB (1310nm & 1550nm) |
|
Return loss |
≥45dB |
|
Fastening strength of naked fiber |
≥ 5N |
Applications
●Patch panels
●Distribution frames
●Maintenance or emergency restoration of fiber networks
●FTTH Outlets
●Connection at the desk for LAN environments
Features
●Factory-installed fiber stub
●No epoxy or polishing required
●Quick and easy fiber termination in the field
●Eliminates cable excess length and pigtail splice storage
●Cost effective
Details
JUNPU Fiber Optic Fast Connector
JUNPU Fiber Optic Products
