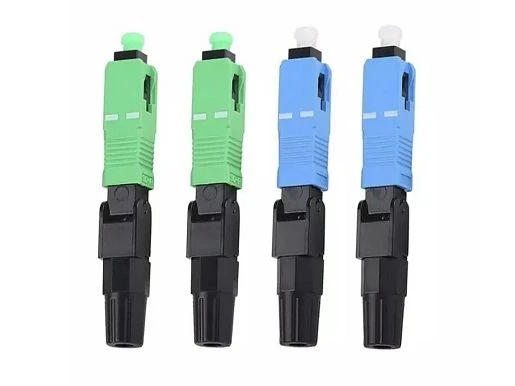

SC UPC Fast Connector 60mm
JUNPU FTTH Fiber Optic 60mm SC UPC Fast Connector for Drop Cable FTTH Quick Assembly Connector (No polish Connector) Fast connector SC/APC/UPC Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also,
transparent design of the side cover which allows visual inspection.
|
Applicable for |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
|
Optical fiber diameter |
φ125um (657A&657B) |
|
Tight buffer diameter |
φ250um |
|
Fiber mode |
Single mode |
|
Operation time |
About 10s (exclude fiber cut) |
|
Insert loss |
≤0.5dB (1310nm & 1550nm) |
|
Return loss |
≥45dB |
|
Fastening strength of naked fiber |
≥ 5N |
Applications
●Premise environments.
●Connections at the desk for LAN environments)
●Patch panels.
●Direct equipment termination)
●Fiber to the Subscriber (FTTF) applications)
●Oepair/replacement requirements)
●Equipment test leads)
Features
●Factory-installed fiber stub
●No epoxy or polishing required
●Quick and easy fiber termination in the field
●Eliminates cable excess length and pigtail splice storage
●Cost effective
Details
JUNPU Fiber Optic Fast Connector
