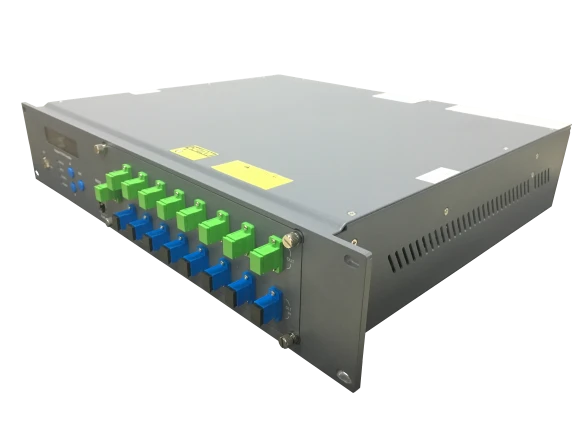

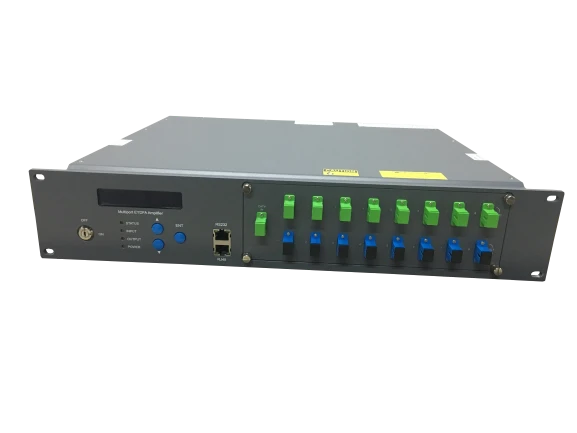

High Power 1550nm EDFA PON

High Power 1550nm EDFA PON

1550nm series multi-outputs optical amplifier gain spectrum bandwidth between 1545～1563nm, adopt high reliability multimode pump laser and double clad fiber, the unique APC,ACC and ATC circuit, the max output power can reach to 40dBm, one device and replace the original several to dozens traditional EDFA, can greatly save the cost and maintenance expense, improve the stability of the network operation, high output power 1550nm optical amplifier is playing an increasingly important role in the continuous extension of the optical fiber network, providing a flexible and low-cost solution for the wide coverage of CATV system in large and medium-sized cities.

----------------------------------------------------------------------------------------------------------------------------------------------------------

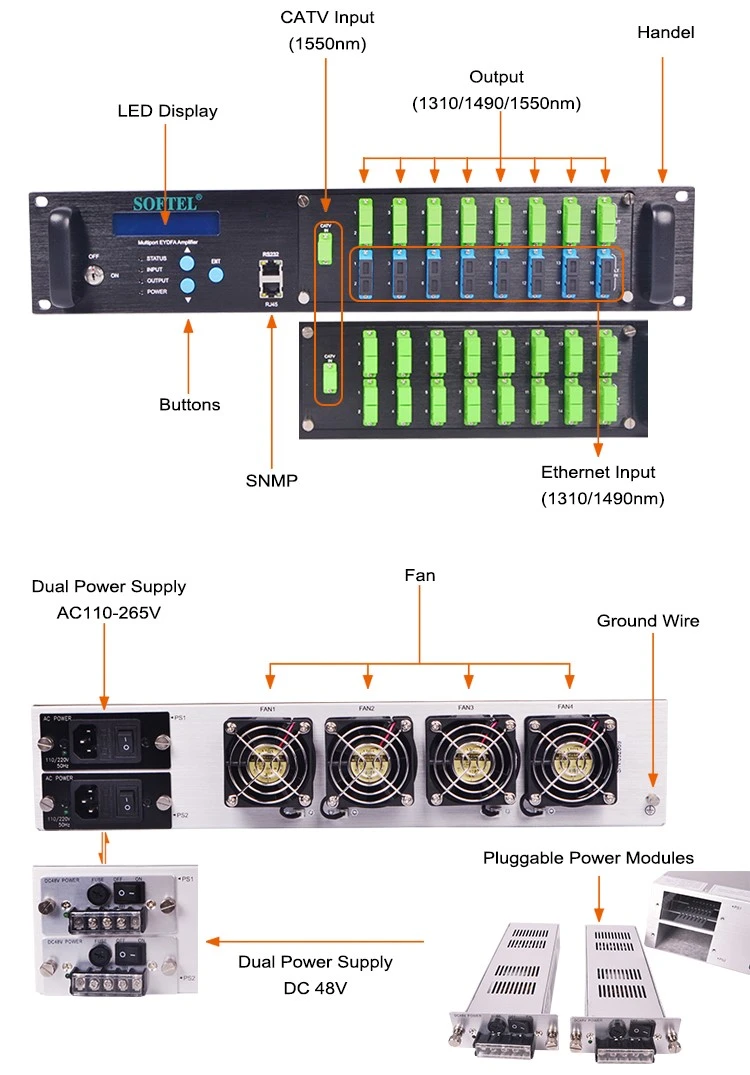

1. Optical switch optional: Single/dual input for choice, built-in optical switch for dual input, the switching power can be set by the button in the front panel or by web SNMP,can set the threshold and select manually or automatically.

2. Output adjustable: Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm. Maintenance function of one-time downward attenuation of 6dBm by buttons in the front panel or web SNMP, to facilitate the optical fiber hot-plug operation without turn off the device

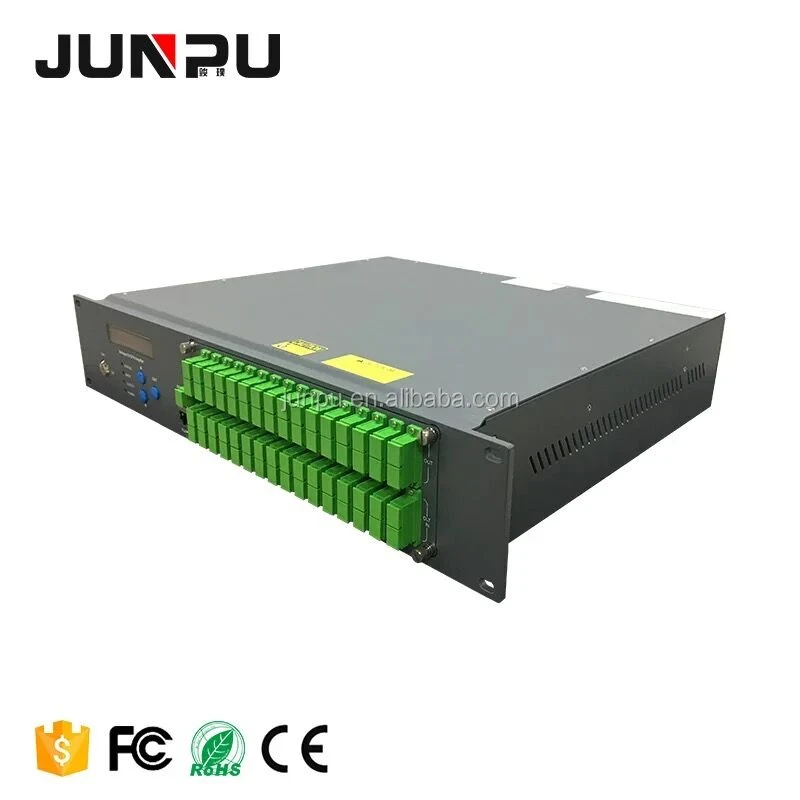

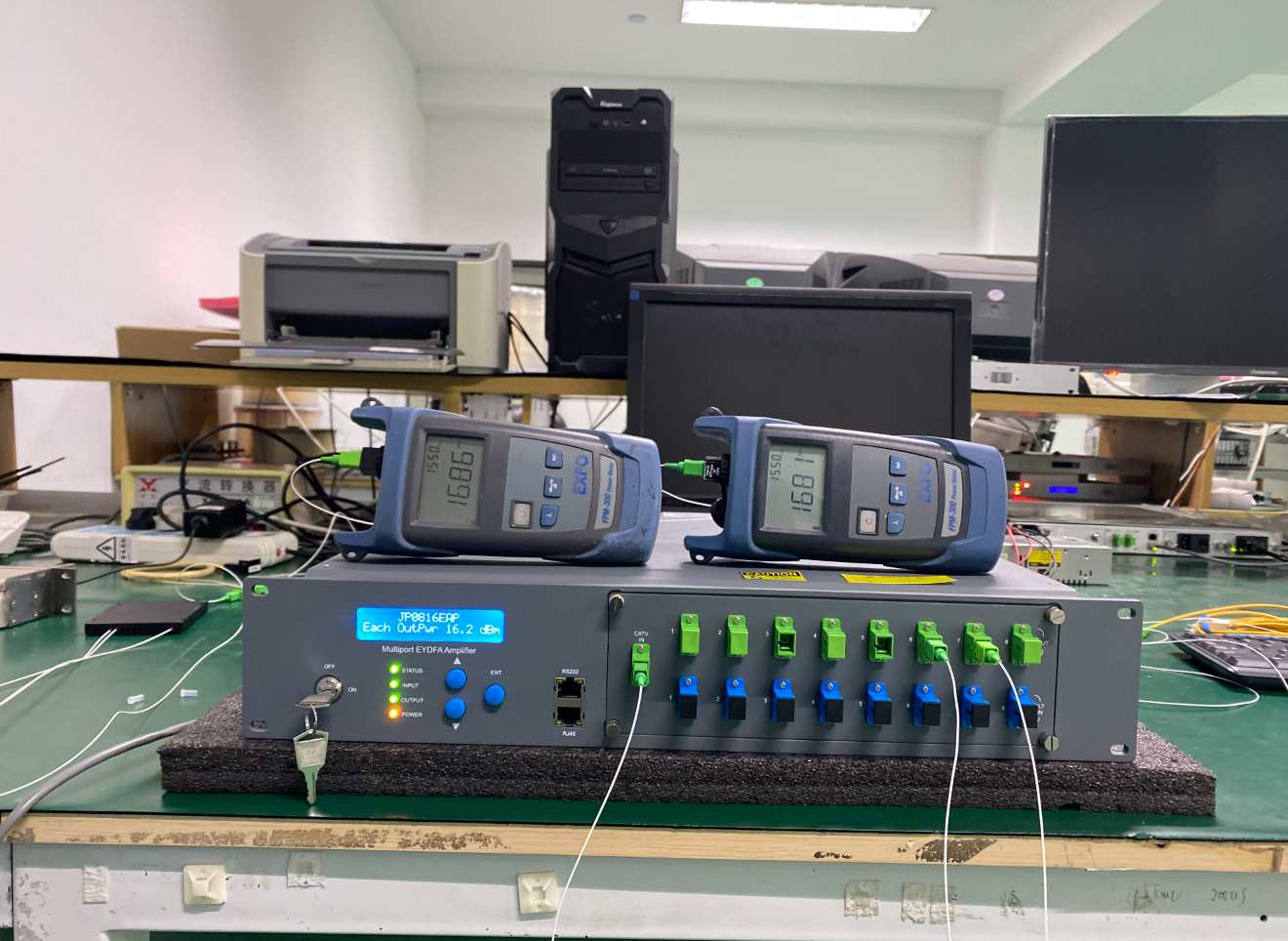

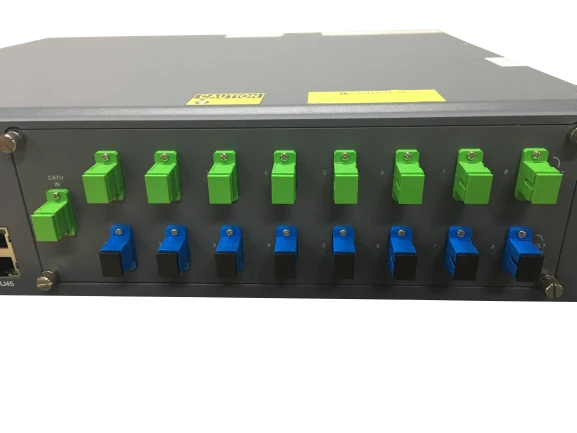

3. Output port number optional: according to the customer's requirements, there are

8 ports,16 ports,32 ports,64 ports, and 128 port; also can select 1310/1490/1550WDM, the max total output power can reach to 40dBm.

4. SNMP: Standard RJ45 port for remote control, provide web management function.

5. Laser key: With laser key, can turn ON/OFF the laser.

6. RF Test: With RF test function.(According to customer's requirement)

7. High-quality laser: Laser adopts brand-new imported laser Lumentum(JDSU) and Ⅱ-Ⅵ from the USA, Fitel from Japan, to guarantee stable operation.

8. Perfect warning mechanism: microprocessor to monitor the working status of the laser and the LCD display the device's function and fault warning on the front panel etc.

9. Dual power supply guarantee: high-quality power supply(hot-plug optional),can work under 90V～265VAC or-48VDC.

We sincerely invite you to send us an inquiry for further details.
