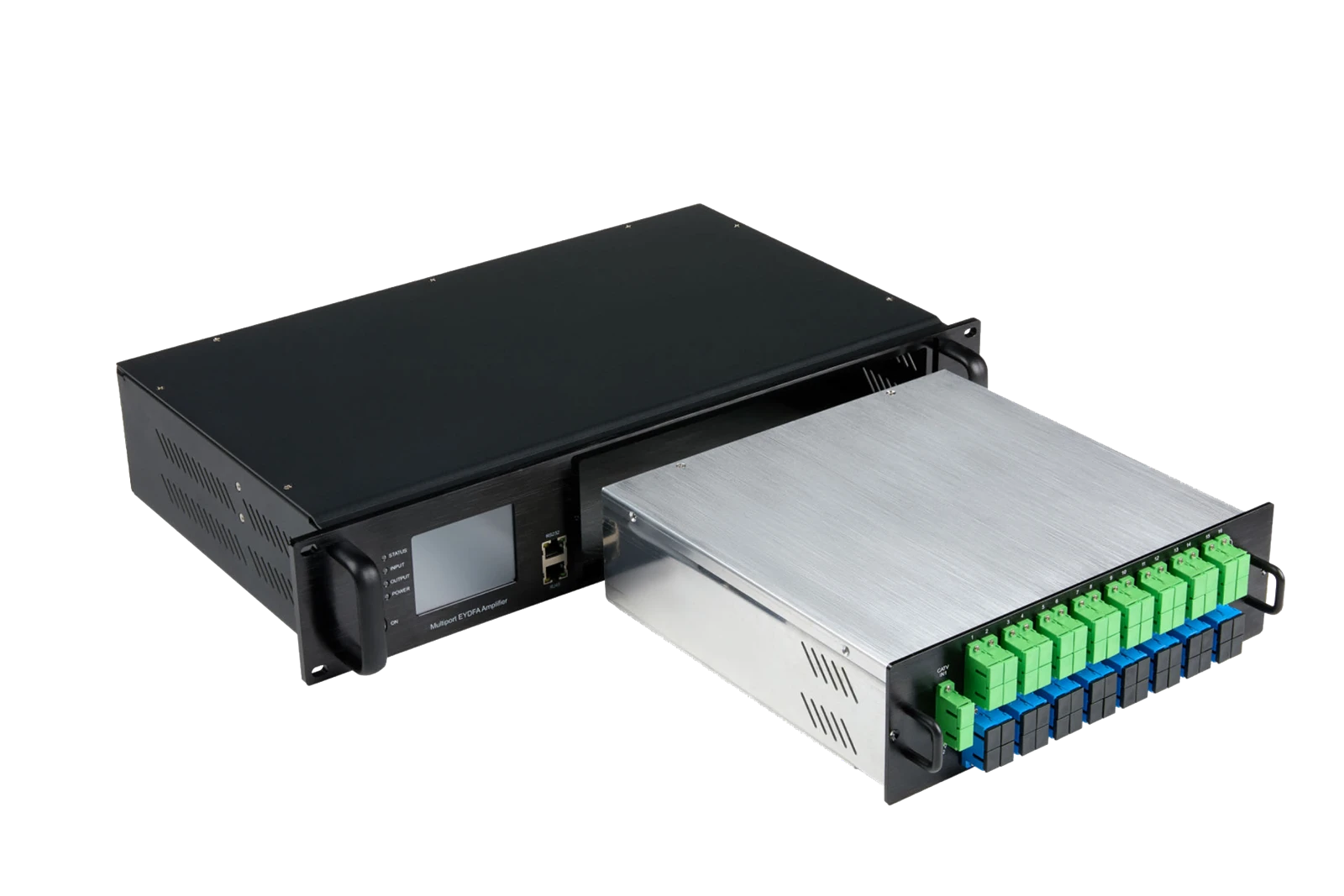

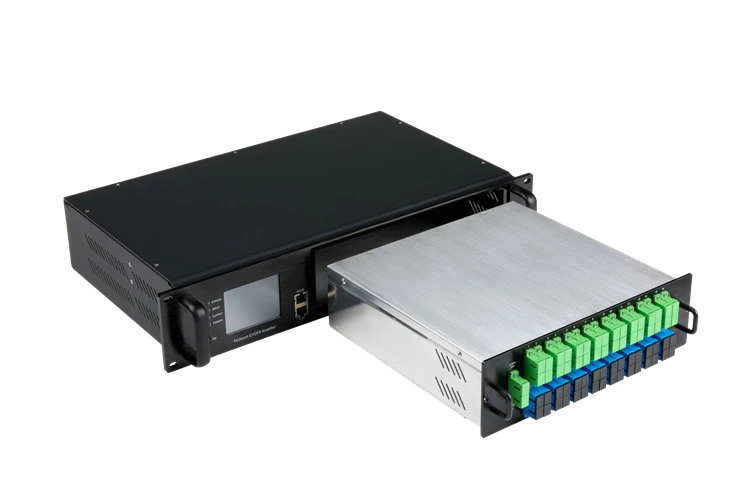

XGS-PON EDFA WDM 32 Ports
JUNPU XG(S)-PON WDM EDFA 32 Port has a stable function.

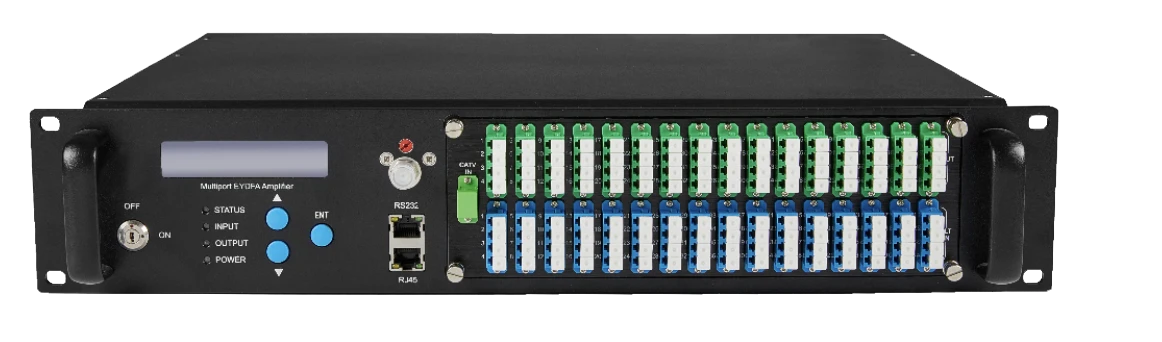

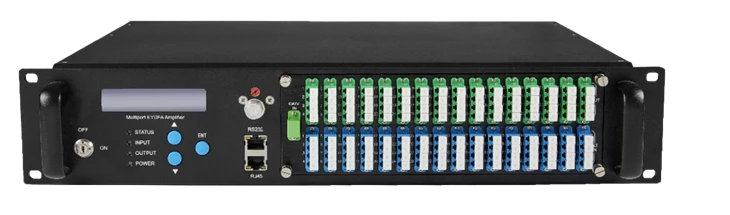

XG(S) PON WDM EDFA 64 ports at the front panel offer the work index of all equipment and warning alarms.
The laser will switch off automatically if optical power is missing, which offers security protection for the laser.
All the optical ports of the optical amplifier can be installed in the front panel or back panel.
|
Product Name |
XGS-PON EDFA WDM 32 Ports |
|
Working Wavelength |
1540~1565nm |
|
Connector Type |
Catv port: SC APC |
|
Output Optical Power |
13,14,15,16,17,18,19,20,21,22,23,24dbm |
Applications
XG(S)-PON WDM EDFA
FTTx PON
RFoG
Features
1540~1565nm operating bandwidth for the optical amplifier.
Each output optical port is with built-in high-performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
Output is adjustable by buttons in the front panel or web SNMP, the range is down 4dBm.
Can be compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, XGS-PON, 10G PON
Multi-port output, can built in 1270/1557/1310/1490nm
Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB ).
Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
With laser key to turn on/off the laser.
Led displays the working condition of the machine.
Dual power hot plug power supply for choice, 90V~250V AC or -48V DC.
