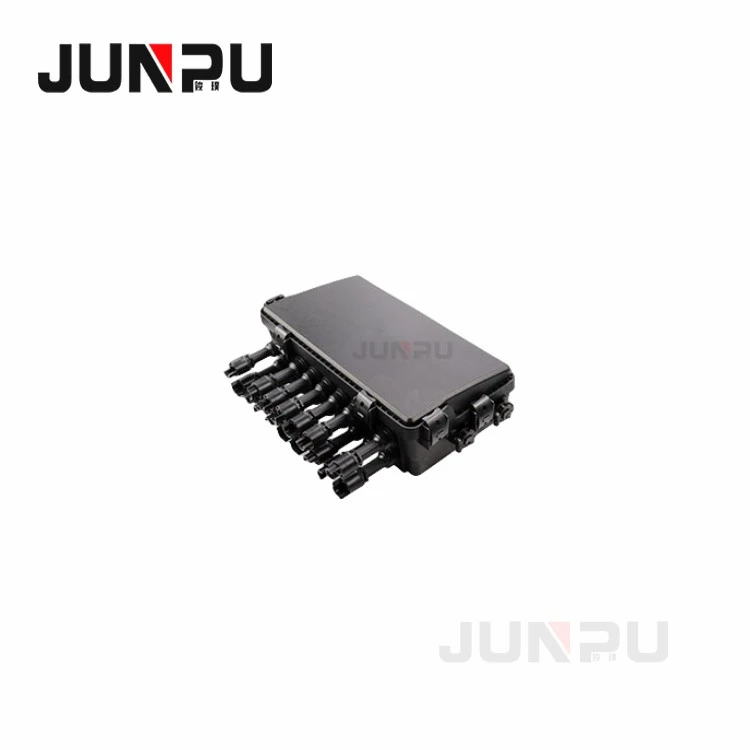

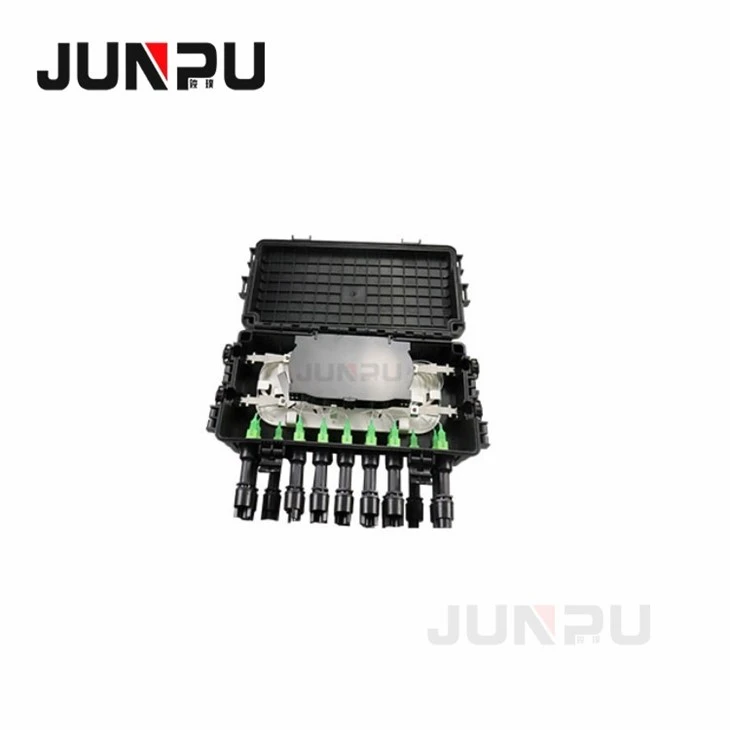

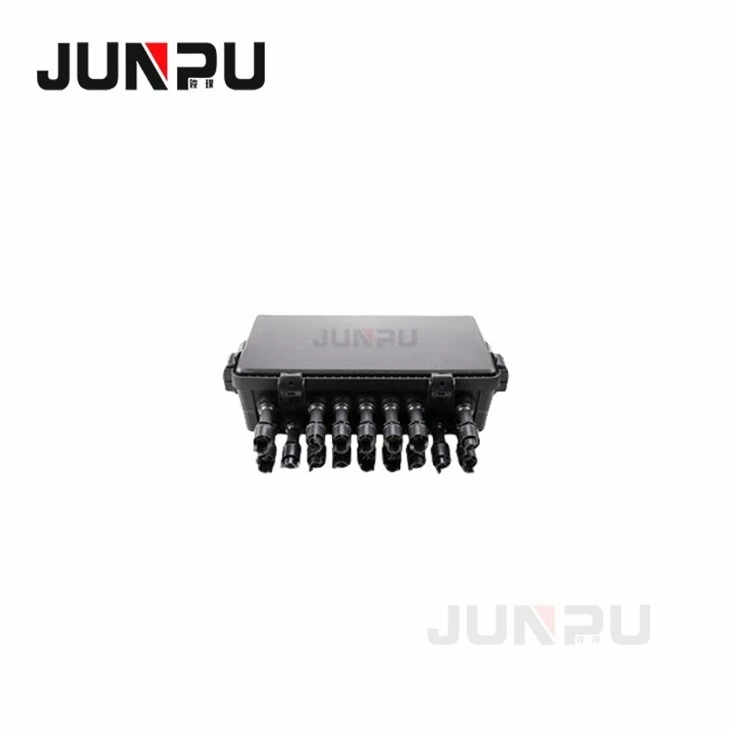

FOSC Fiber
One of the main fiber enclosure for 48 user access points, applied as fiber optic closure outdoor box for protective connection and distribution between two or more cables. The primary function is to connect and splice a maximum of 48 core inlet distribution cables and indoor cable in the open air. fiber enclosure box is widely used in EPON, GPON communication systems, cable TV, optical cable network systems, and others by virtue box of steady structure, good sealing performance, and easy maintenance for inner fiber optic splice, storage in whole one box.
FOSC Fiber provides 8GBase-SR throughput up to 150m over multimode fiber (MMF) using 8nm wavelength via duplex connectors. The transceiver complies with the SFF-8636 standard. Digital diagnostics are available through a designated 2-wire universal management interface to allow access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for fiber optic communications up to 8G. The transceiver is applied to storage area networks in data centers, data center fiber channel interconnects on the backbone, enterprise network SAN interconnects, etc.
|
Applications |
FTTH,FTTB,Network |
|
Material |
PP+GF |
|
Protection Level |
IP68 |
|
Monting type |
Wall/Pole/Aerial |
|
Cable Port |
2-Max Φ8~10MM mid span Cable |
|
Max Capacity |
16 pcs SC adapter, can be installed with 2pcs 1x8 plc splitter |
|
MOQ |
1pcs |
|
OEM |
Yes |
Features
1. The box is fully enclosed, with a simple and beautiful appearance.
2. The box material is PP + ABS, which is superior in moisture resistance, water resistance, dust resistance, corrosion resistance and aging resistance, and the protection level reaches IP65.
3. It has the functions of fixing, welding, inventory and wiring of optical cable / leather cable.
4. The incoming and outgoing lines of optical cables, pigtails, and fiber jumpers are independent of each other and do not interfere with each other, and are easy to maintain.
5. The switchboard can be turned upside down. The cable entry cable has a pull-out function, which is convenient and quick to construct and maintain.
6.The cabinet can be installed by wall or pole, and can be used indoors and outdoors.
Technical Parameter
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius: 30mm. Low optical loss.
Details
Company Information
We sincerely invite you to send us an inquiry for further details.
