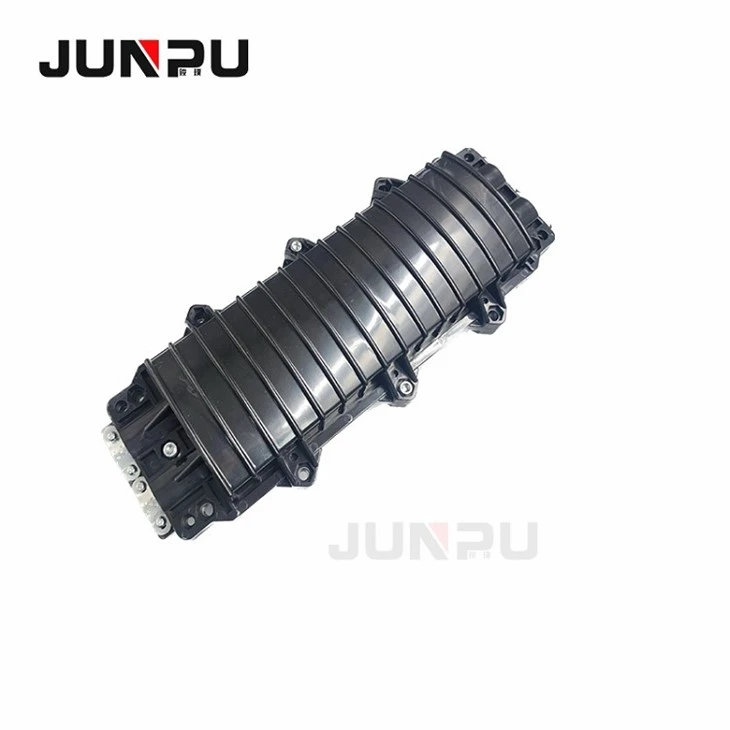

Horizontal Fiber Optic Joint Closure
This fiber optic horizontal joint closure is a device used to protect and connect fiber optic cables in horizontal applications. It is typically used in outdoor environments where cables need to be spliced or connected together.It is made of durable materials that can withstand harsh environmental conditions such as extreme temperatures, moisture, and UV exposure.
Horizontal splice closure are suitable for optical cables of 10mm ~ 23mm diameter. The case are made of high quality alloy plastic and mechanically sealed with filling material. The external components and fastening parts are all made of stainless steel. It can be re-opened without changing the sealing material.
The splice closure is used for the protective connection and optical fiber distribution between 2 or more fiber cables. It's one of the commonly used equipment for user access point. It mainly completes the connection of the distribution optical cable and the household FTTH drop cable outdoors. In addition, the splice case can be equipped with splice tray or splitter according to the field application.
|
Applications |
FTTH,FTTB,Network |
|
Material |
PP+GF |
|
Protection Level |
IP68 |
|
Monting type |
Wall/Aerial |
|
Cable Port Diameter |
Φ4mm~Φ20mm |
|
Max Capacity |
Bunchy: 12 cores -216 cores |
|
Number of Inlet / Outlet Ports |
2 pieces on each side (total 4 pieces) |
|
MOQ |
1pcs |
Application
CATV system
Optical fiber communication
FTTX
Fiber optic network convergence
Optical fiber access network
Fiber data transmission
Optical fiber video transmission
Fiber multimedia system
Fiber ethernet
Photoelectric conversion system
Features
●The protection grade reaches IP 68.
●Aerial and wall-mounting.
●Ambient temperature ranges from -40 to 65℃.
●The closure is of small volume, big capacity and convenient maintenance.
●The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
●The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

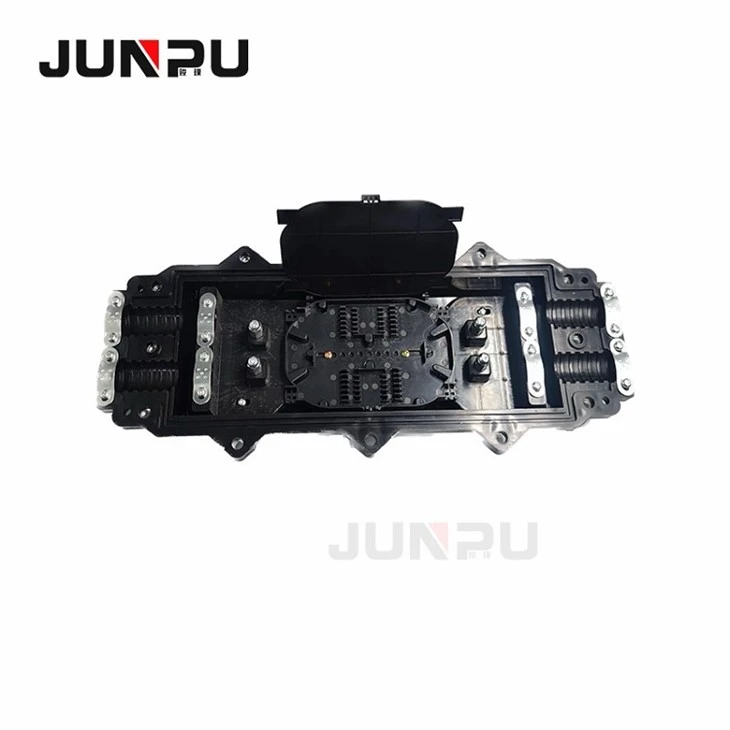

●The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually

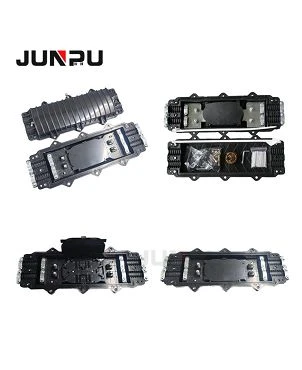

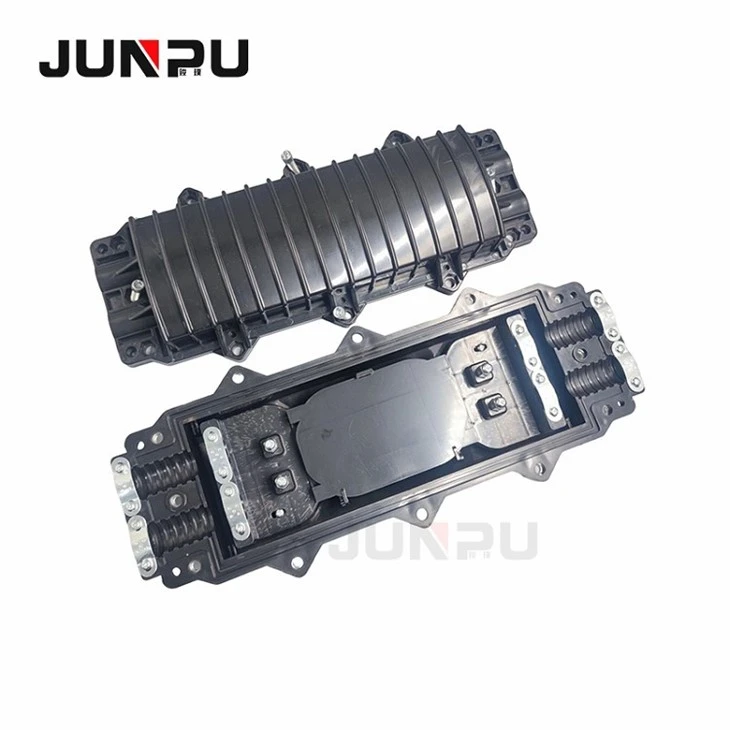

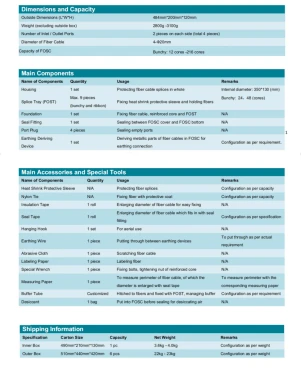

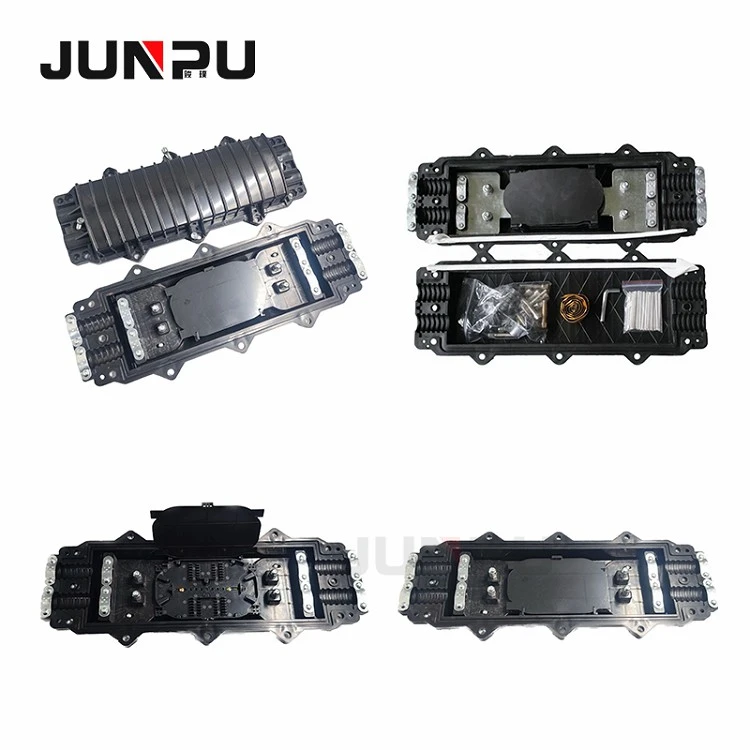

Details
