Fiber Optic Splice Closure Mechanical Sealing

Fiber Optic Splice Closure Mechanical Sealing

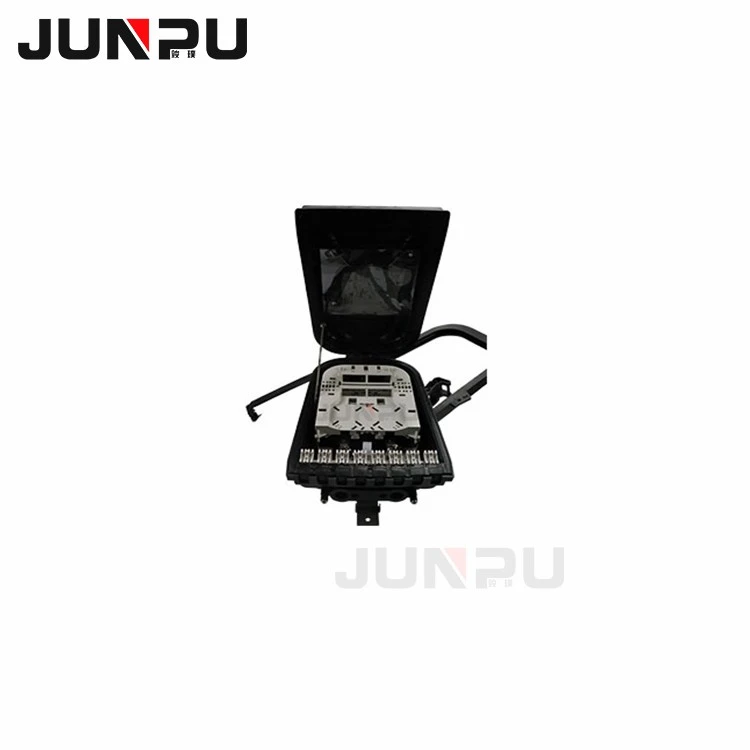

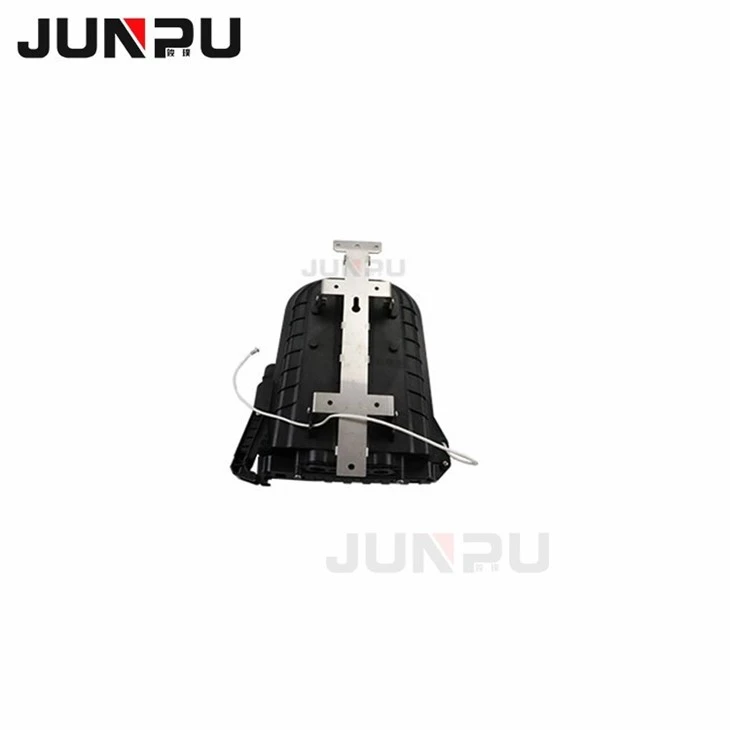

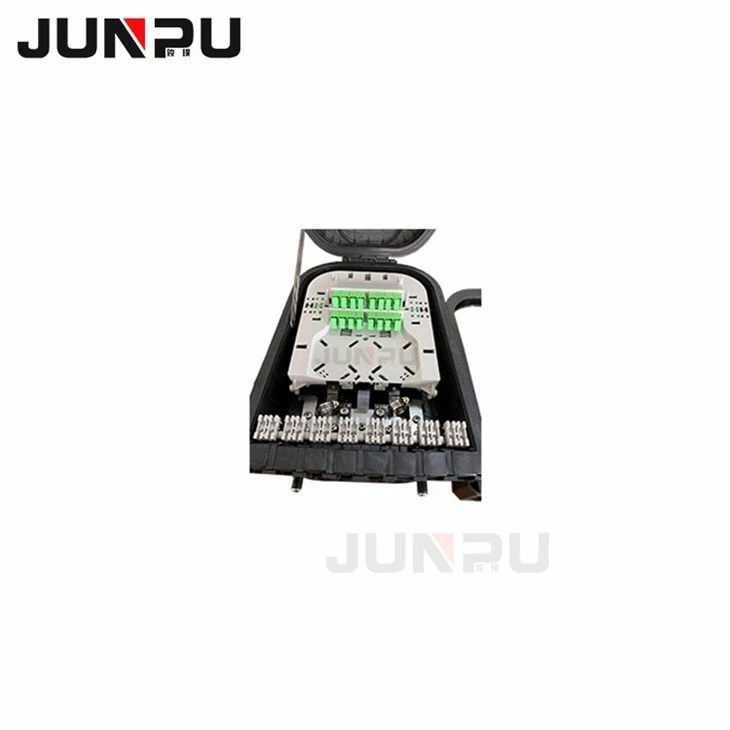

JP-CTO-16 is an external product designed for overhead networking installation. It features mechanical sealing for ports, supports two main cables and two derivation cables, and accommodates 16 drop cables. It can be configured with either two splice trays and one adapter tray or four splice trays.

The Fiber Optic Splice Closure is a connection part that connects two or more optical cables together with protective components. It is a must used in the construction of optical cable lines and is one of the very important equipment. The quality of the Fiber Optic Splice Closure directly affects the optical cable. The quality of the line and the access to the fiber optic cable.

- Water-proof design with IP-65 Protection Level.

- Can be used indoor and outdoor, wall mount and pole mount

- Integrated with 4pcs flap-up splice cassette and adaptor holder

- All stainless metal plate and anti-rusting bolts, nuts

- Fiber bend radius control more than 40mm

- Suitable for the fusion splicer or mechanical splice

- 2 Pcs of 1*8 Splitter can be installed as an option

- Mechanical sealing structure and mid-span cable entry.

- 16 outports for drop cable

• Network Access Point JP-CTO-16 is an external use product for installation in overhead networking (pole/ wall/ steel wire).

• Mechanical sealing for the ports:

• Oval for 2 main cables (Ø 8 - 15 mm). • 2 derivation cables (Ø 6 - 8 mm).

• Access to 16 Drop Cable Low Friction 3x2 mm or round 4,5 to 5,3 mm.

• Support 2 configurations: 2 splice trays (16 splices) + 1 adapters tray (16

positions) or 4 splice trays (16 splices).

We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
