Fiber Aerial Terminal Closure

Fiber Aerial Terminal Closure

The fiber optic splice closure is a connection part that connects two or more fiber optic cables and has protective components. It must be used in the construction of fiber optic networks and is one of the very important pieces of equipment. The quality of the optical fiber splice closure directly affects the quality and service life of the fiber optic network.

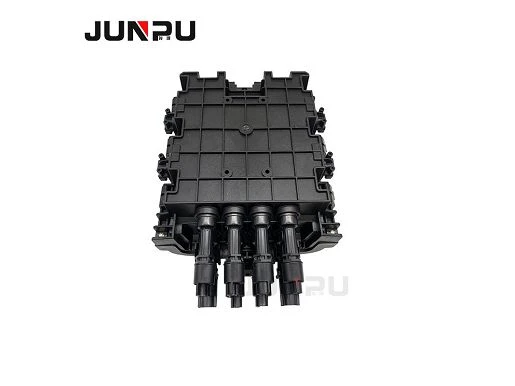

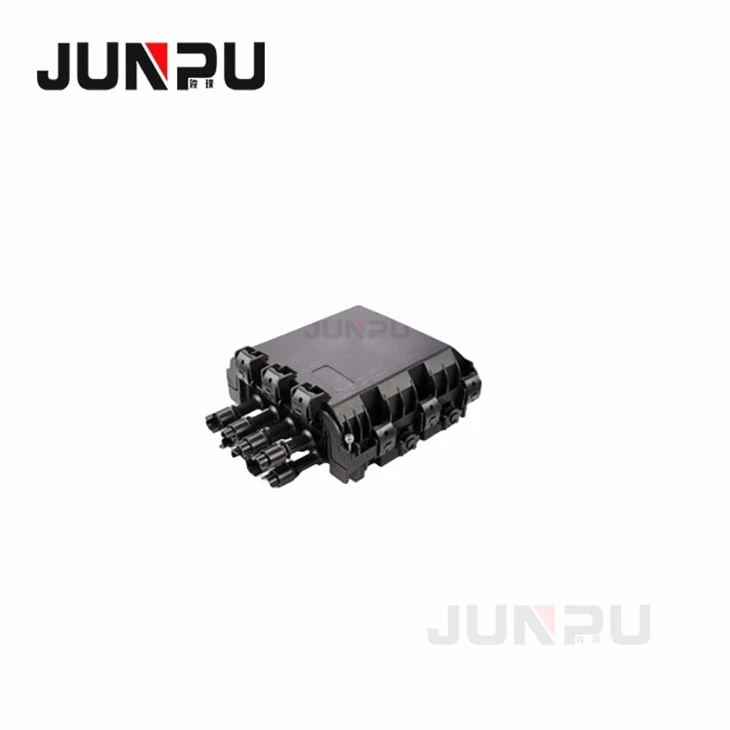

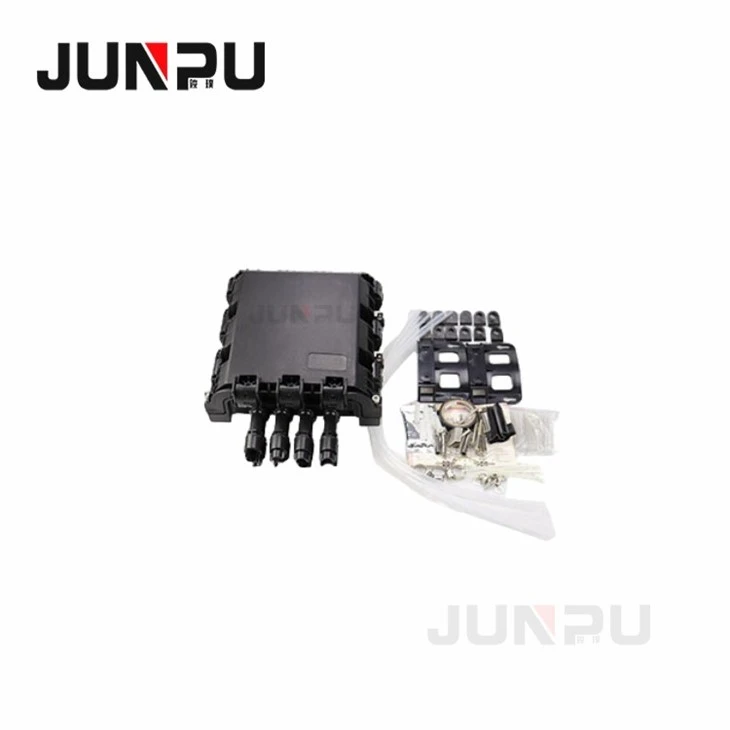

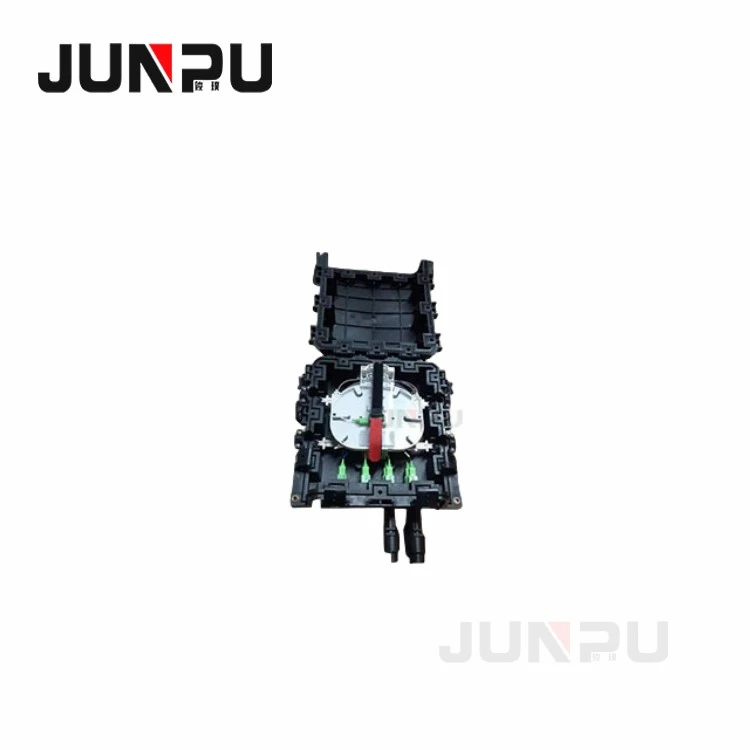

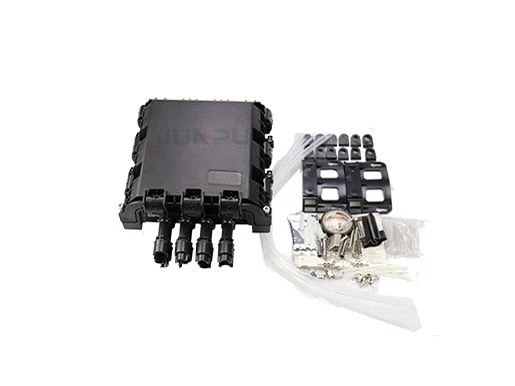

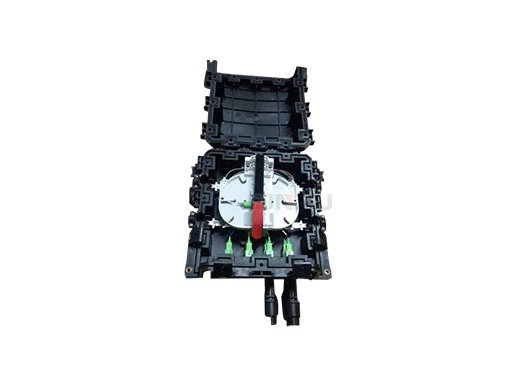

The Fiber Aerial Terminal Closure is a strand-mounted, vented fiber optic terminal for fiber-to-the-premises (FTTP) applications. It is designed for in-line, tight-jacket, and butt-splice configurations. The SLiC 530 closure consists of two separate chambers: the distribution cable splice chamber and the branch termination chamber. The distribution cable splice chamber houses fiber splices and stores buffer tube or ribbon fiber slack, while the branch termination chamber is used to house all branch terminations. This process separation feature allows installers to terminate and maintain branches without entering the splice chamber. The 530 terminal closure is capable of handling OptiTap® adapters, external cable assembly modules, factory terminated SC APC or SC UPC fiber branches, and direct splices. The terminal accommodates 4, 6, 8, or 12 branches.

Fiber Aerial Terminal Closure has four independent, self-sized grommet cable ports (expandable to eight cable entries)
Patented tongue-and-groove cover sealing system
Installation and re-entry requires only a common tank wrench
Cable retention clip provides pull-out capability
UV-resistant engineered thermoplastic

We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
