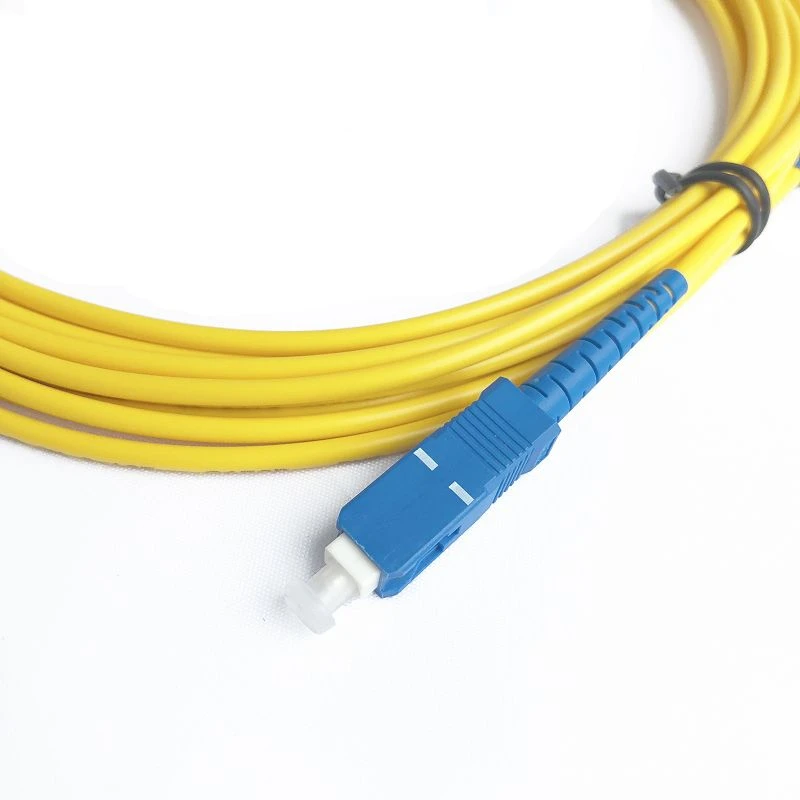

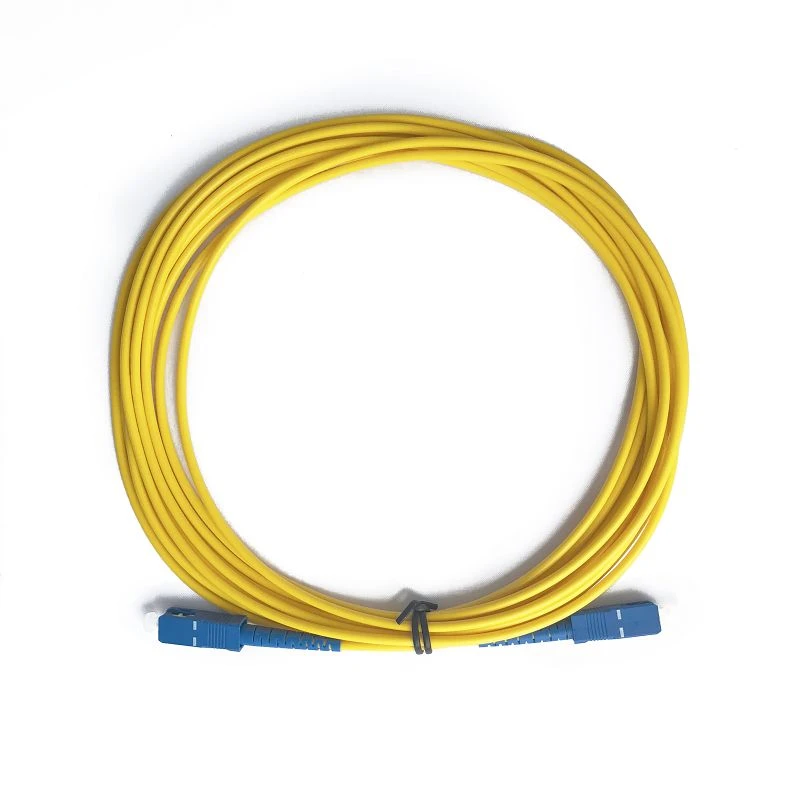

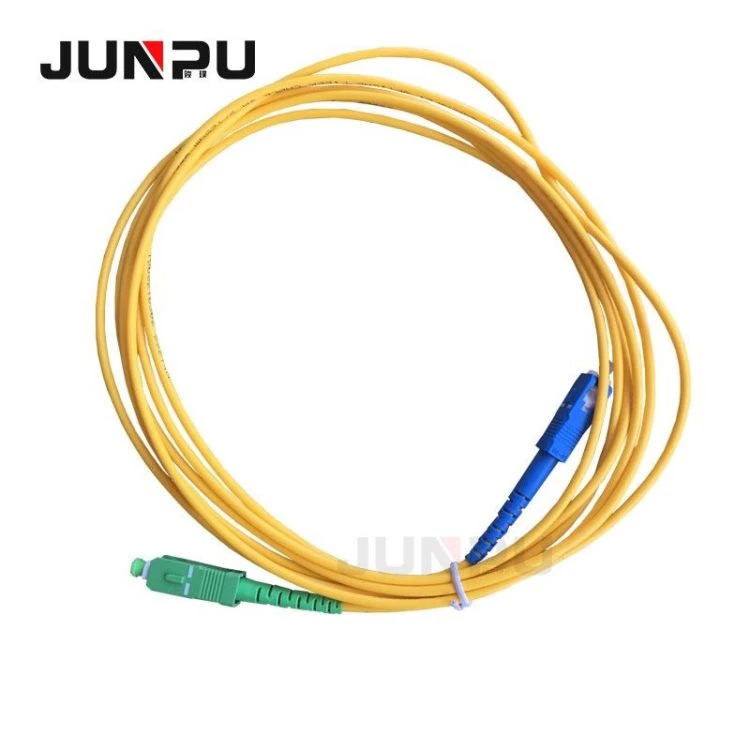

Singlemode SC/UPC to SC/UPC fiber optic patch cord jumper cable
Description
Fiber optic patch cables are ideal for supporting high speed telecommunication network fiber applications. They are manufactured and tested in compliance with TIA 604 , IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types are available to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination is through rigorous parameter test to ensure the highest network performance.
Technical Data
|
Connector Type |
SC |
|
Polish Type |
UPC |
|
Cable Diameter |
Duplex: 2.0/3.0mm, Simplex: 0.9/2.0/3.0mm |
|
Fiber Type |
OS2/OM5/OM4/OM3/OM2/OM1 |
|
Fiber Count |
Simplex/Duplex |
|
Cable Jacket |
PVC (Riser/OFNR)/LSZH/Plenum (OFNP) |
|
Jacket Color |
OM1/OM2: Orange; OM3/OM4: Aqua; OM5: Lime Green; OS2: Yellow |
|
Fiber Grade |
SMF: G.657.A1/G.652.D; OM5/OM4/OM3/OM2: Bend Insensitive; OM1: G.651 |
|
Connector Insertion Loss |
LC/SC/ST/FC/LSH/MU/MTRJ ≤0.3dB |
|
Connector Return Loss |
SMF: UPC≥50, APC≥60 (LC/SC/ST/FC/MU/MTRJ), UPC≥55, APC≥75 (LSH) MMF: UPC≥30 (LC/SC/ST/FC/LSH/MU), UPC≥35 (MTRJ) |
Features
High quality zirconia ferrules.
• Good repeatability and interchangeability.
• LC, SC, ST, FC, LSH, MTRJ, MU connectors are available.
• Flame-retardant, rugged and durable jacket.
• Printing helps clarify and recognize different cables.
• OS2, OM4, OM3, OM2, OM1, OM5 are available.
• Factory terminated and tested for insertion loss, return loss and end face.

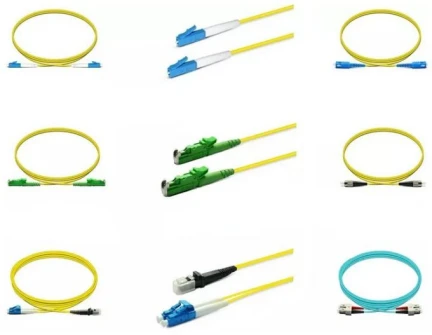

Other Patch Cord Series
