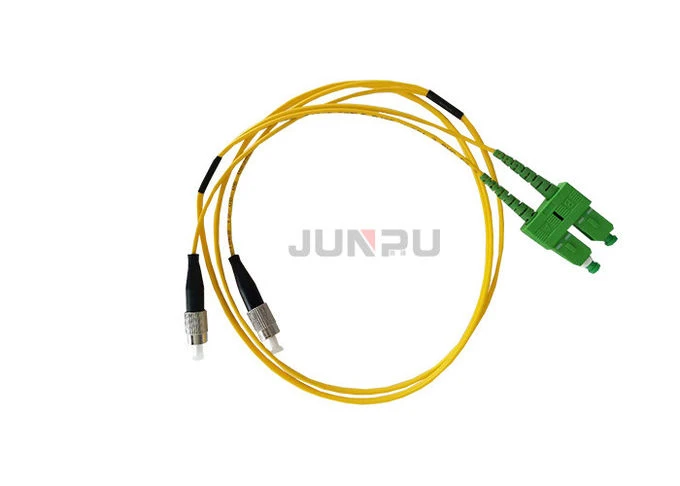

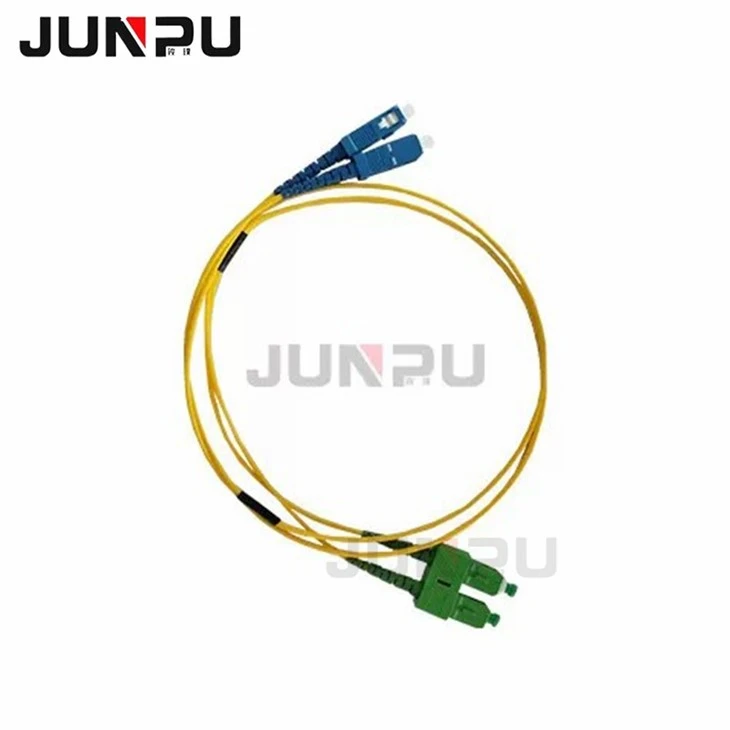

Multimode Patch Cord
Packing
With years of export experience along with excellent quality, advanced services and competitive prices, we has won numerous customers' trust and support.
Features
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
9. Customized specifications are welcomed.
Performance Index
|
Item |
SM(Single Mode) |
MM(Multimode) |
|||
|
Fiber Cable Type |
G652D/G655/G657A1/G657A2 |
OM1 |
OM2/OM3/OM4 |
||
|
Fiber Diameter (um) |
9/125 |
62.5/125 |
50/125 |
||
|
Cable OD (mm) |
0.9/1.6/1.8/2.0/2.4/3.0 |
||||
|
Endface Type |
PC |
UPC |
APC |
UPC |
UPC |
|
Typical Insertion Loss (dB) |
<0.2 |
<0.15 |
<0.2 |
<0.1 |
<0.1 |
|
Return Loss (dB) |
>45 |
>50 |
>60 |
/ |
|
|
Insert-pull Test (dB) |
<0.2 |
<0.3 |
<0.15 |
||
|
Interchangeability (dB) |
<0.1 |
<0.15 |
<0.1 |
||
|
Anti-tensile Force (N) |
>70 |
||||
|
Temperature Range (℃) |
-40~+80 |
||||
