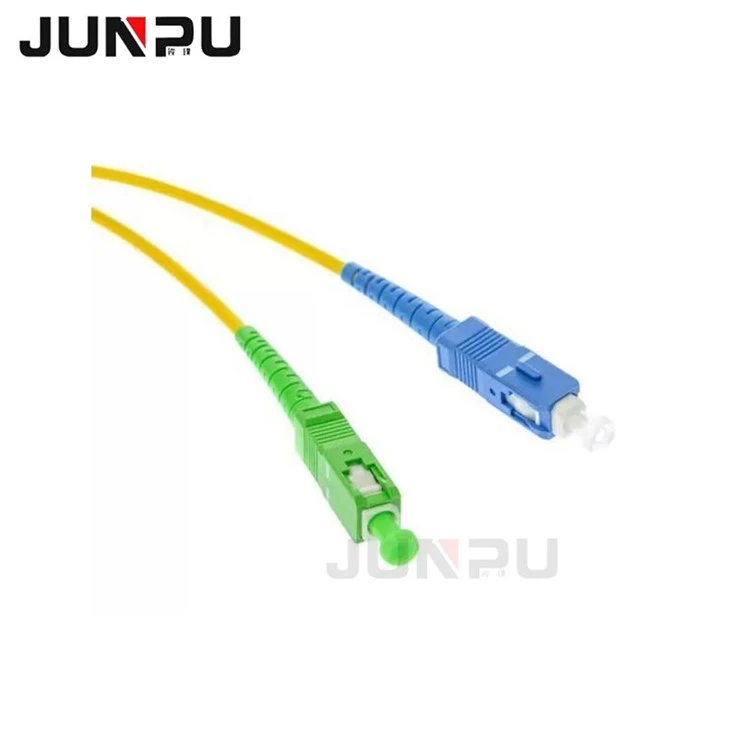

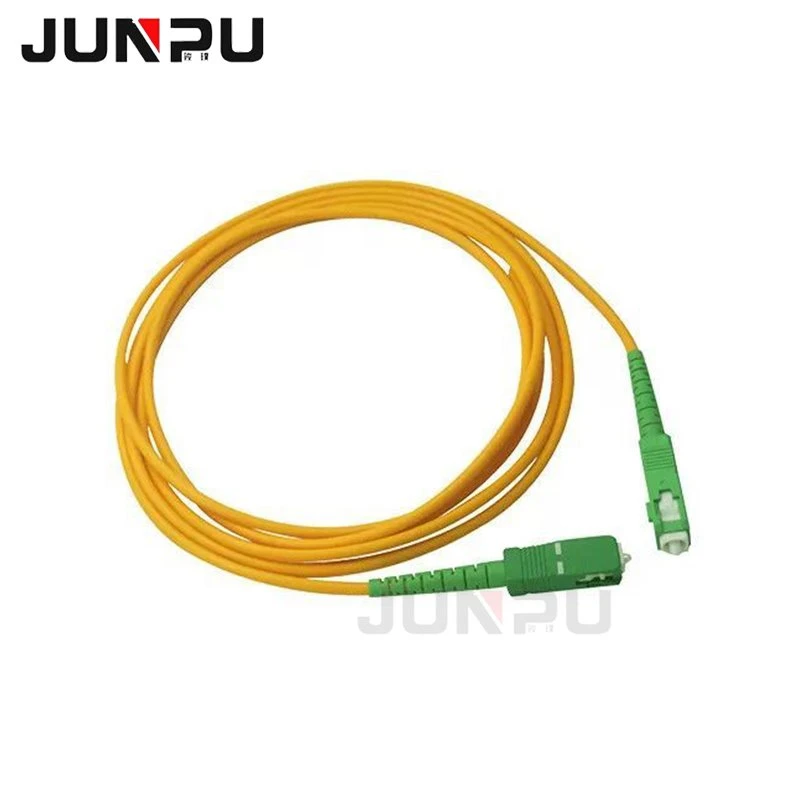

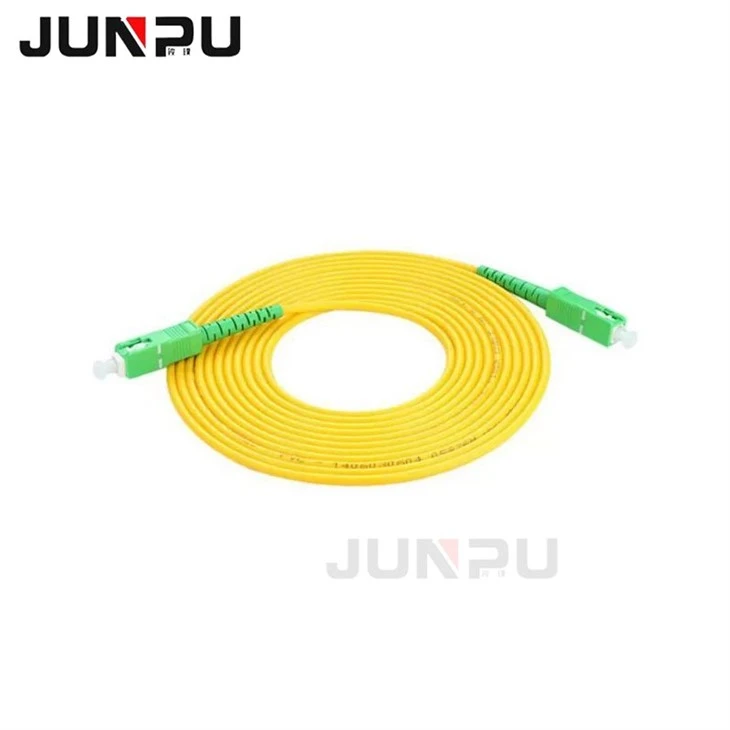

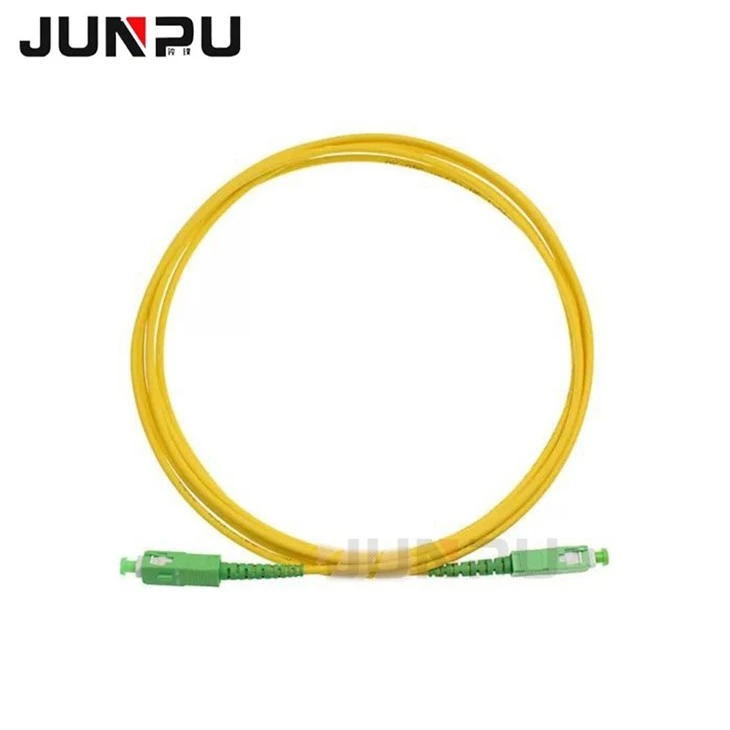

FTTH SC APC Fiber Optic Patch Cord G657A1 LSZH
Description
Fiber Optic Pigtail is important in optical networks. they have the same or different connectors which are installed on the end of fiber optic cable.
The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for deployment.
Performance Index
|
Item |
SM(Single Mode) |
MM(Multimode) |
|||
|
Fiber Cable Type |
G652D/G655/G657A1/G657A2 |
OM1 |
OM2/OM3/OM4 |
||
|
Fiber Diameter (um) |
9/125 |
62.5/125 |
50/125 |
||
|
Cable OD (mm) |
0.9/1.6/1.8/2.0/2.4/3.0 |
||||
|
Endface Type |
PC |
UPC |
APC |
UPC |
UPC |
|
Typical Insertion Loss (dB) |
<0.2 |
<0.15 |
<0.2 |
<0.1 |
<0.1 |
|
Return Loss (dB) |
>45 |
>50 |
>60 |
/ |
|
|
Insert-pull Test (dB) |
<0.2 |
<0.3 |
<0.15 |
||
|
Interchangeability (dB) |
<0.1 |
<0.15 |
<0.1 |
||
|
Anti-tensile Force (N) |
>70 |
||||
|
Temperature Range (℃) |
-40~+80 |
||||
Applications
●FTTH FTTB FTTX Network
●Data Center
●For ODF internal link
●For room equipment internal link
●FTTH/Test equipment/TV/LAN/Telecommunication equipment
