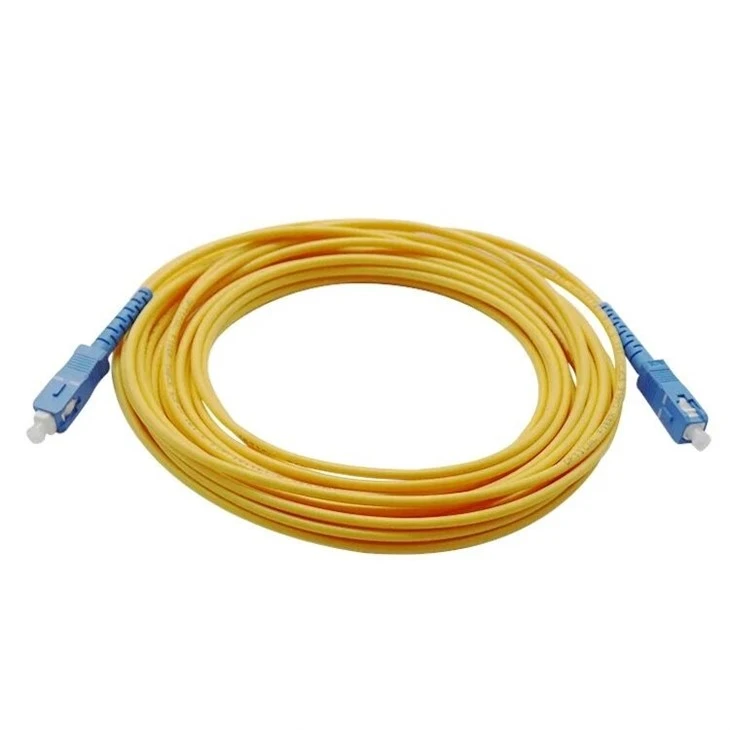

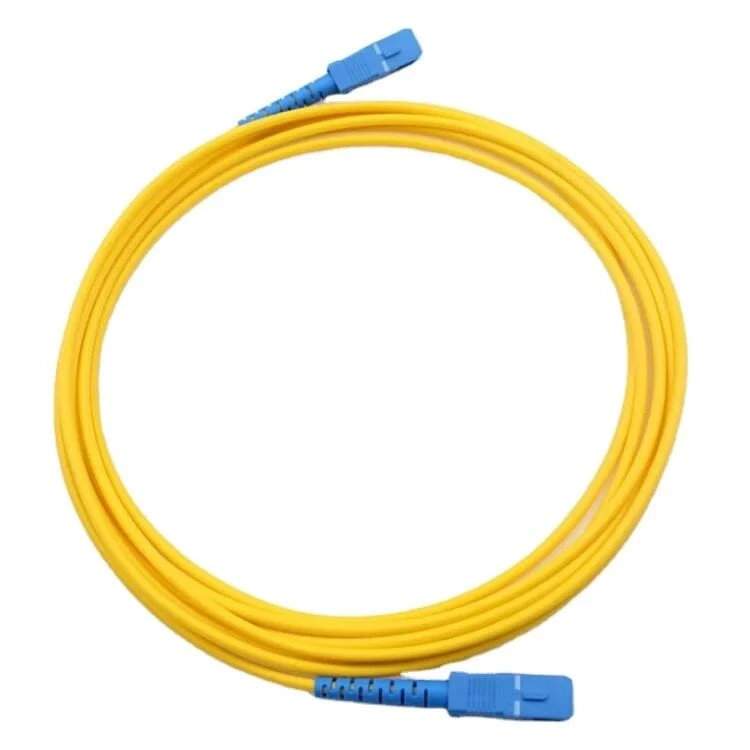

Single Mode SC To SC Fiber Optic Patch Cord
Products Description
A patch cable is a general term for cabling that connects two electronic devices to each other, typically in a network. These devices might include computers and other hardware. Patch cables are also used to carry telephone, audio, and video signals between devices in non-networked applications; these might include equipment such as headphones and microphones.
Application
- CATV system and FTTX
- Data Center
- Optical fiber video transmission
- Fiber multimedia system
- Fiber Ethernet
Specification
|
Model |
Single Mode (G652D,G657A1,G657A2,G657B3) |
Multi Mode (OM1,OM2,OM3,OM4) |
|
|
Polish |
UPC |
APC |
UPC |
|
Insertion Loss |
≤0.30dB |
≤0.20dB |
≤0.20dB |
|
Return Loss |
≥50dB |
≥60dB |
≥30dB |
|
Test Wavelength |
1310/1550nm |
850/1310nm |
|
|
Durability(500 Matings) |
≤0.2dB |
||
|
Operating Temperature |
-45℃~+70℃ |
||
|
Cable Diameter |
0.9mm, 2.0mm, 3.0mm |
||
| Cable Length | 1m,2m,3m; Customized | ||
| Cable Jacket | PVC,LSZH,OFNR,OFNP | ||
