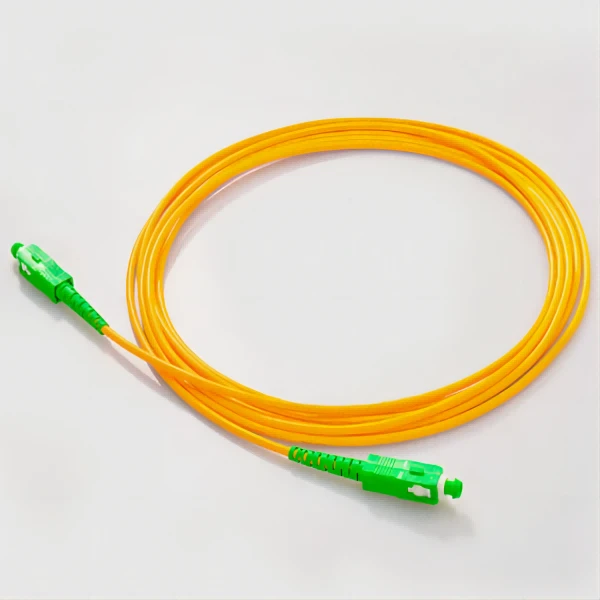

3mm LSZH Fiber Optic Patch Cord
Description
Fiber Optic Patch Cord Low insertion loss, high return loss Good in repeatability and exchangeability High-temperature stability Excellent end face geometry.
Various fiber cable lengths, jacket colors, connector type and label, etc.
Specification
|
MODEL NO
|
Fiber Optic Patch Cord
Simplex Jumper
|
|
Fiber Type
|
Single Mode G652D/G657A
|
|
Cable Assemblies
|
Simplex
|
|
Jacket Material
|
PVC(LSZH Negotiable)
|
|
Cable Diameter (mm)
|
1.6mm/2.0mm/3.0mm
|
|
Connector Type
|
SCAPC
|
|
Working Wavelength (nm)
|
1310/1550
|
|
Insertion Loss (dB)
|
≤0.3dB(MAX) ≤0.2dB(Typical)
|
|
Return Loss (dB)
|
UPC ≥50dB APC ≥60dB
|
|
Exchangeability
|
≤0.2dB
|
|
Operating Temperature (℃)
|
-40～85
|
|
Storage Temperature (℃)
|
-40～85
|

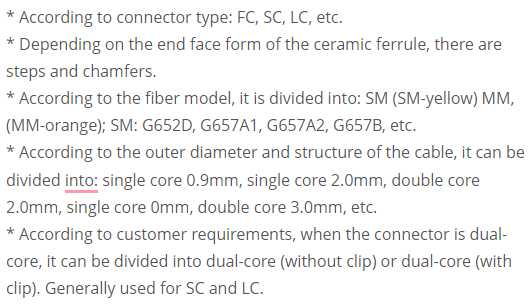

Important information
