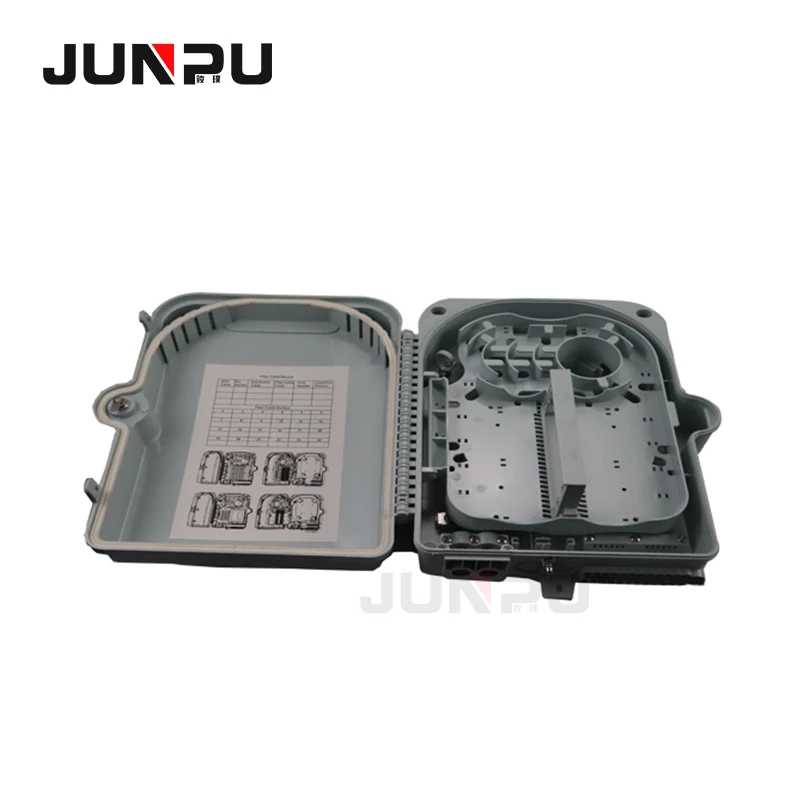

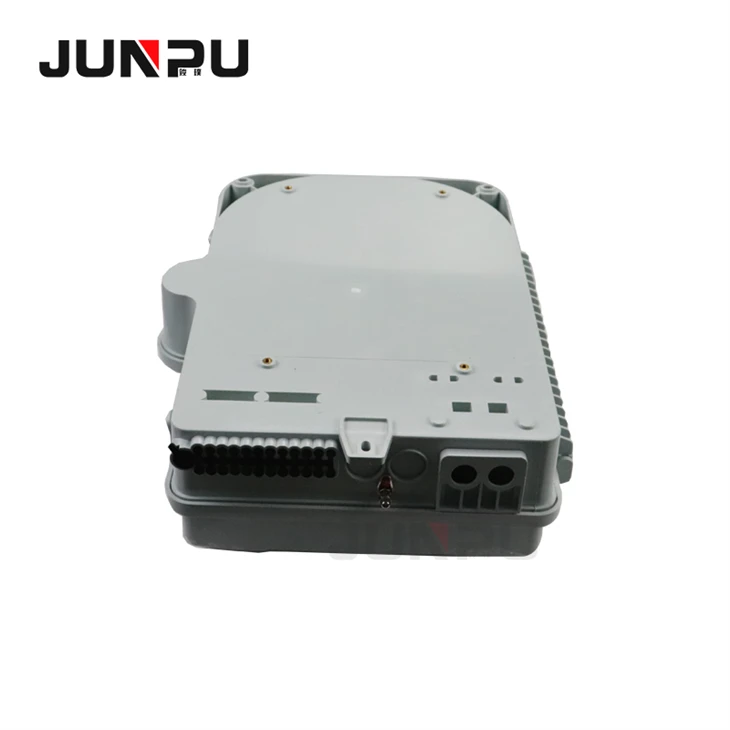

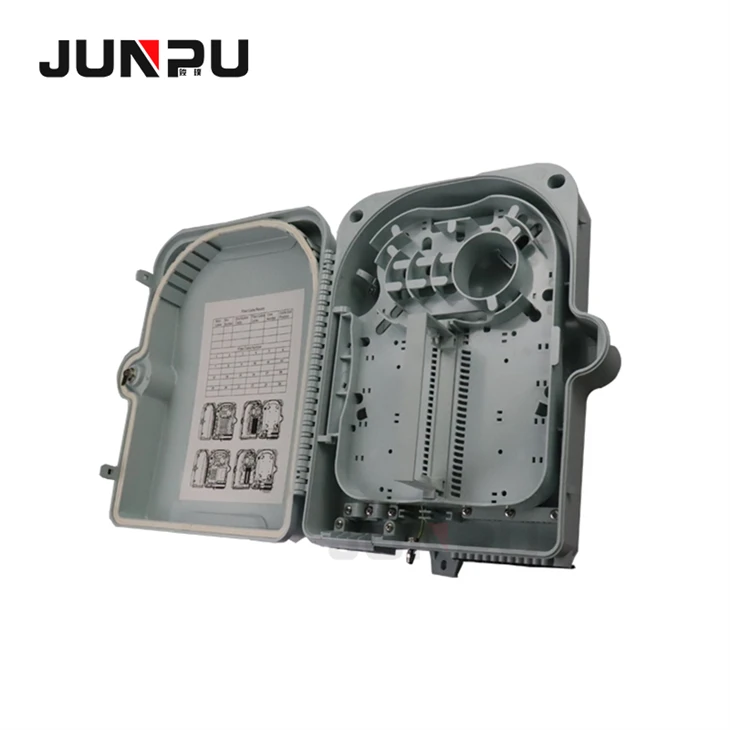

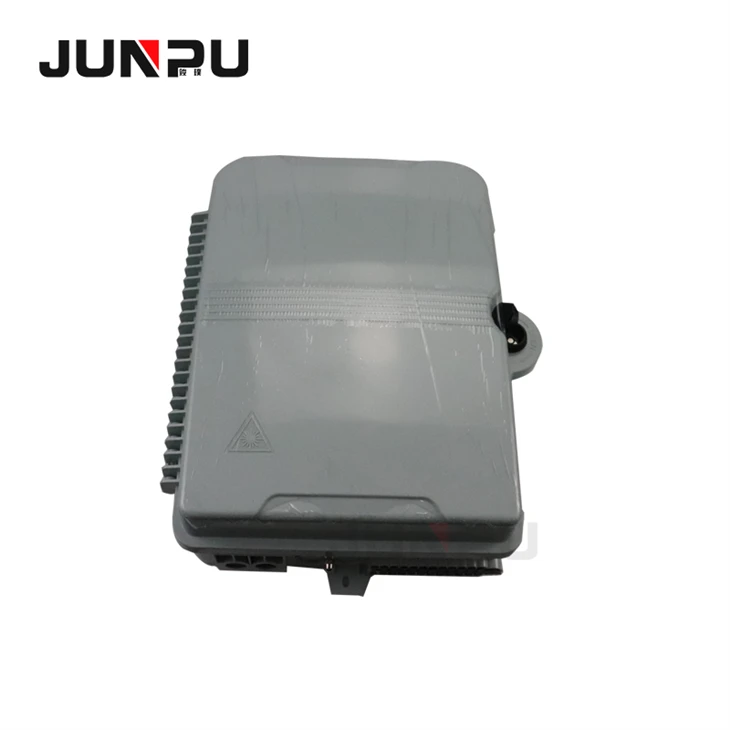

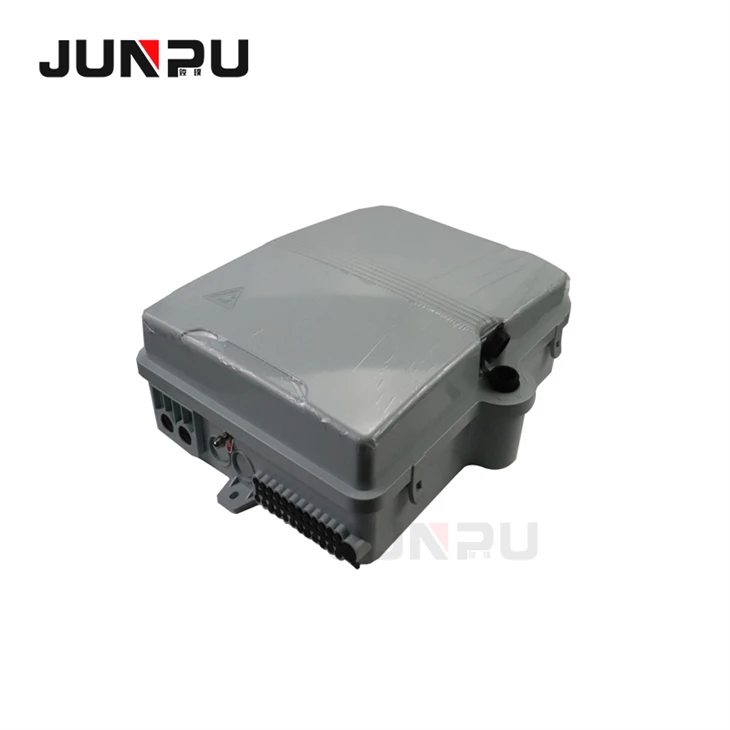

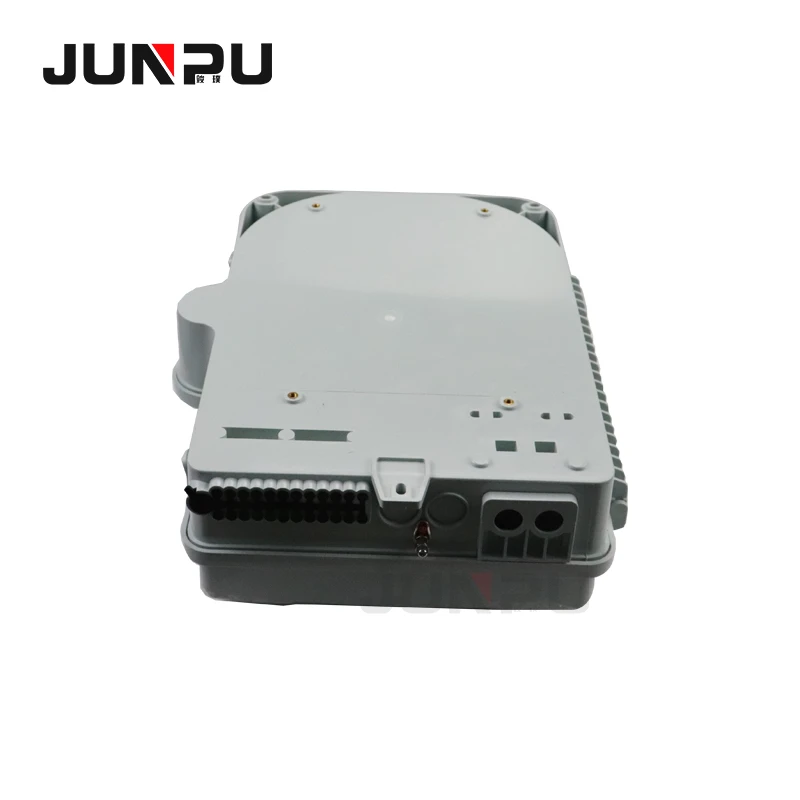

PC+ABS Outdoor Fiber Optic Termination Box
|
Product Name: |
PC+ABS Outdoor 24Core IP65 Fiber Optic Termination Box | installation： |
Wall/Pole/Aerial |
| Material |
PC+ABS |
Size: |
250*190*72mm |
| No. of Cable Inlet/Outlet | 2IN-16OUT |
Protection |
IP65 |
|
Cable Port: |
2-Max-12mm cable |
Network: |
FTTH,FTTX,FTTB Network |
|
Place of Origin: |
China |
PLC Splitter: |
can be installed 2pcs 1x8 or 1pc 1x16 splitter can be installed 1pcs plug-in splitter |
|
Colorful Logo: |
Customizable |
Working Temperature |
-30deg.C~80deg.C |
Specification
JUNPU-FAT-24core fiber access termination box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Applications:
PC+ABS engineering plastics
24 cores
CATV Network
Feature:
PC+ABS Alloy Water-Proof Material
Industry Standard User Interface, be made of high impact plastic.
24 ports for drop cable or indoor cable out

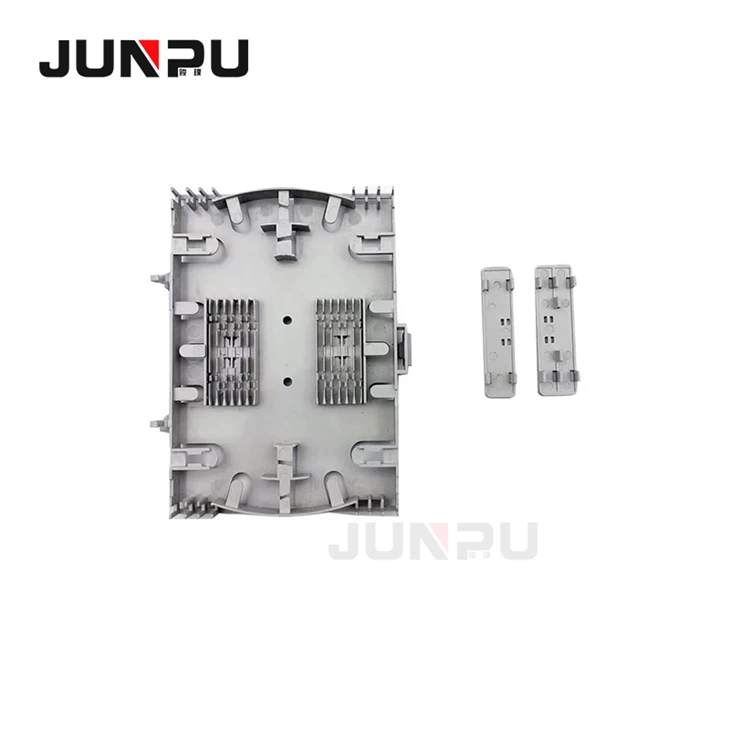

The splice trays are hinged for access to any splice tray, without disturbing other
The inner parts and fixing parts are made of stainless steel.
With a earthing device protect it from damage by lightning
Widely used in FTTH access network.
Installation
Shipping diagram
