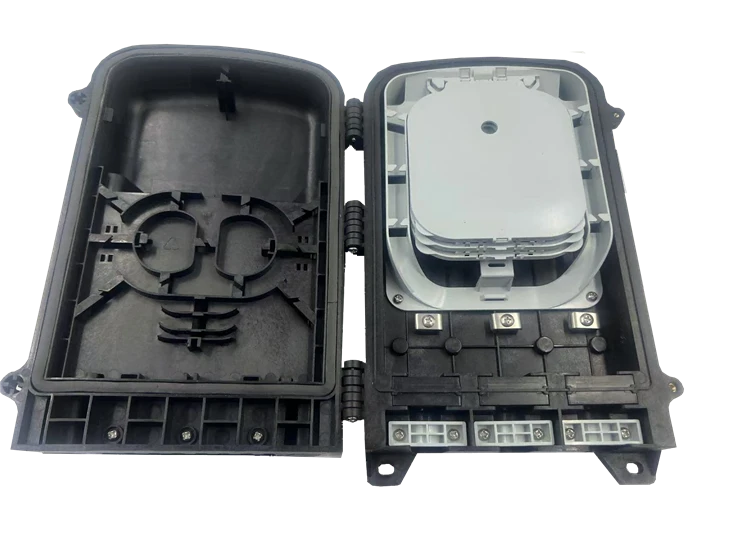

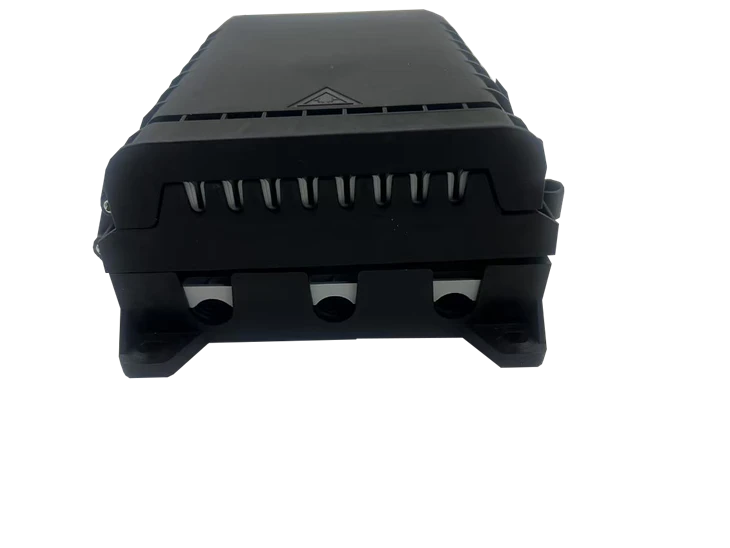

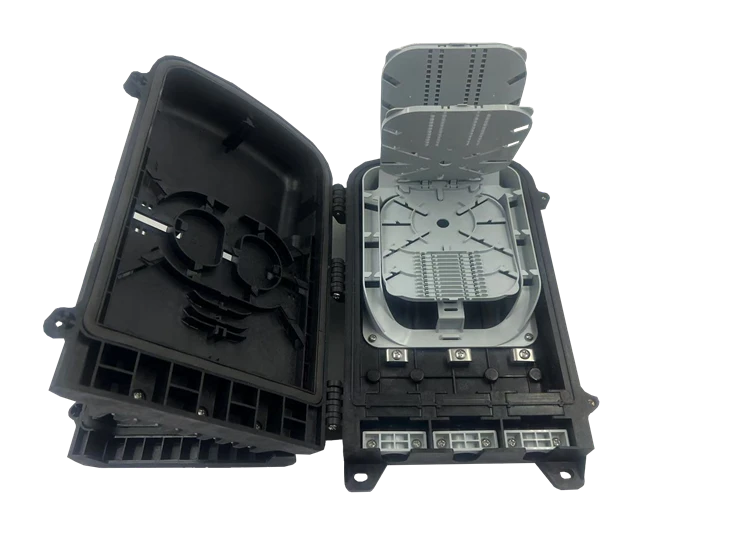

GFS-8A 8 Core Fiber Termination Box
Description
GFS-8A 8 Core Fiber Termination Box the equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTX communication network system. The fiber splicing. splitting. distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
This GFS-8A 8 Core Fiber Termination Box is ideal for the termination of fiber optic lines in residential or commercial buildings. The ShowMeCables ECFTB-108-SC comes with 8 simplex SC/UPC single mode couplers installed with 8 simplex SC/UPC single mode pigtails ready for splicing.
Specification
- Total enclosed structure
- Material: PP.wet-proof.water-proof, dust-proof, anti-aging, protection level up to IP65.
- Cable, pigtails. patch cords are running through own path without disturbing cable other,cassette type SC/LC.PLC adaptor installation,easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Environmental requirement
Working temperature:-40℃~+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure: 70KPa~106Kpa
Main technical datasheet
Insertion loss:≤0.2dB
UPC:return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction: >1000 times
Thunder-proof technical datasheet
The grounding device is isolated with the cabinet,isolation resistance is less than 2x10*MS2/500V (DC): IR≥2x10*MΩ500V
The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min,no puncture, no flashover;U≥3000V

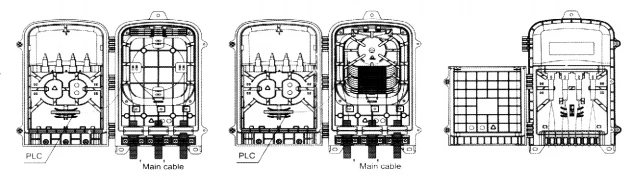

Configuration Table
Installation
Wall-mounted installation

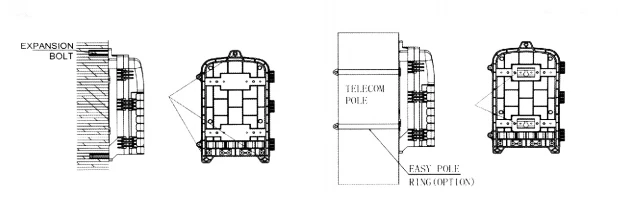

Drill 4 holes into the wall based on the size in table 1,place the expansion bolt 07.5*40,place the box to match up the holes and use bolt to fasten (Pic 3)
Pole-mounted installation
Fix 1 set of the pole ring to the telecom pole (Pic 4)
The overhead structure
Tie the two installed on the chassis of the overhead hung on the wire,and then bolted, prevent the case fall off.
