Optical Fiber Termination Box 16 Core Wall Mounted
Products Description

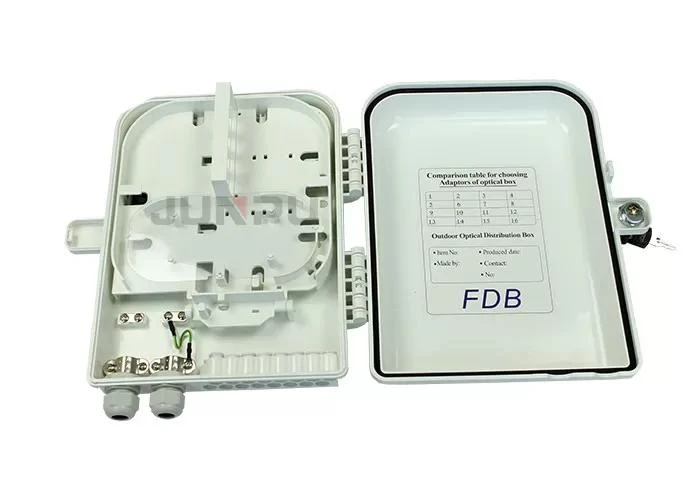

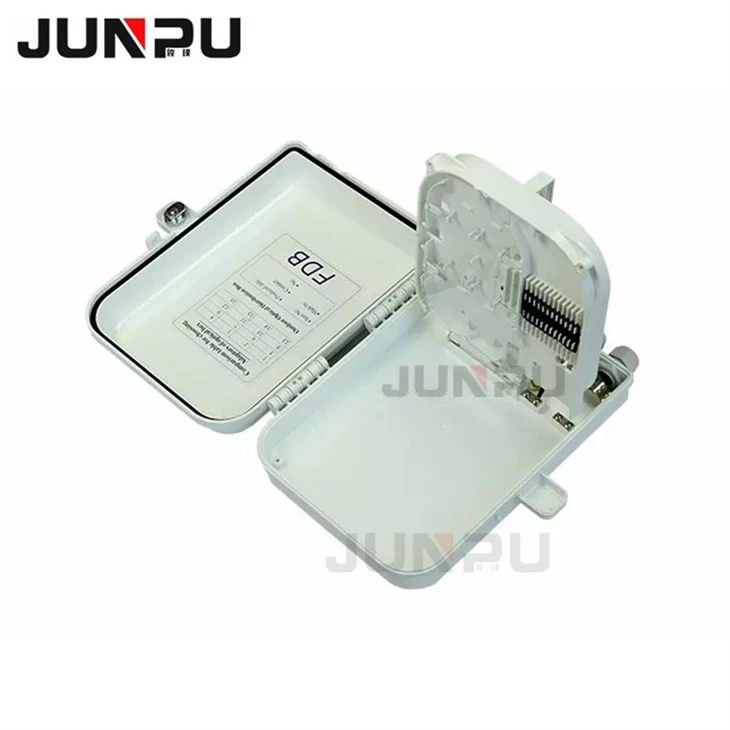

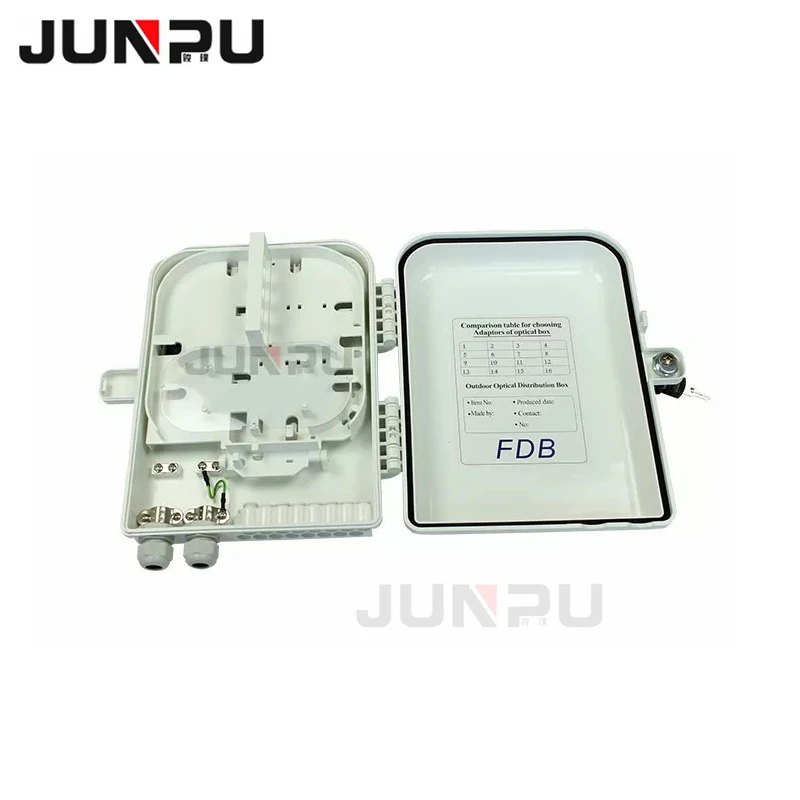

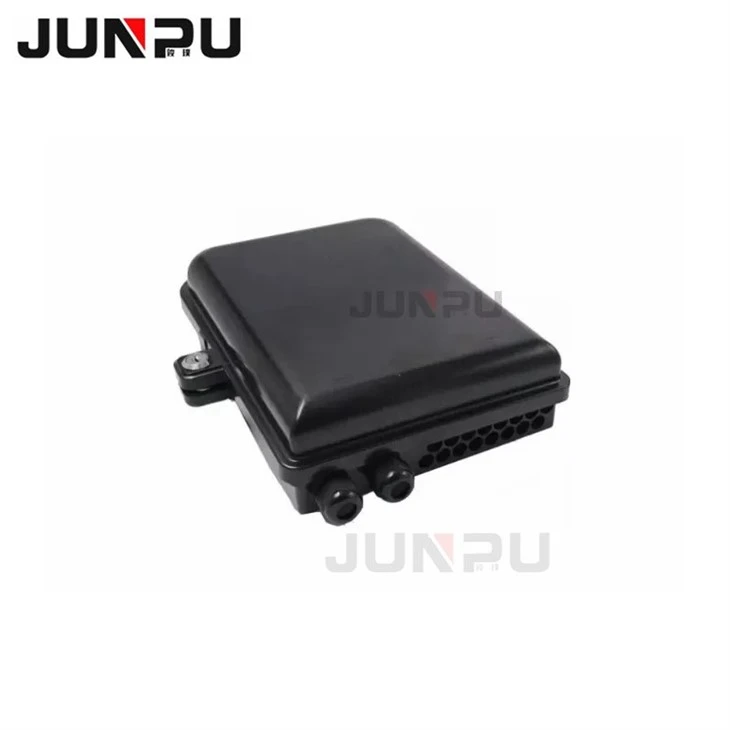

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
This Fiber Termination Box Wall Mount features a compact plug-in design, making the design both versatile and modern. It is ideal for use in FTTX networks, and its ease of use makes it very useful in other network environments. It is ideal for use with a variety of adapters and provides good bending protection.
In FTTH applications, the terminal box is a distribution box designed specifically for managing optical cables. Its core purpose is to terminate the optical cable and connect the core and pigtail of the cable. A typical terminal box consists of three parts, namely the fiber optic connector protection element, the internal element, and the outer shell. Its internal components are usually enclosed in an IP-rated enclosure, which is made of impact-resistant and sturdy materials to prevent damage caused during operation and placement. Fixtures, fixed fiber trays, and support frames are part of the internal components of the fiber optic terminal box. The main component in the internal structure is this support frame. Maintain the optical fiber in an orderly manner. In order to be carried out outdoors for a long time, the components of the FTB should be dustproof and have good corrosion resistance. Its outer shell should be easy to open and have a lock to prevent potential knocks.
|
Product Name |
16 core fiber optic distribution box(termination box) |
|
Shape |
Total enclosed structure, be in nice shape |
|
size |
263mm(H)*174mm(W)*110mm(D) |
|
Weight |
1.2KG |
|
Material |
PC+ABS |
|
Material characteristic |
1.wet-proof, water-proof, dust-proof, protection level up to IP65 2.Construction-lightweight plastic offers strength 3.Resistance to chemical and U.V attack |
|
Specification |
JZ-1361-16I |
JZ-1361-16P |
JZ-1361-16F |
JZ-1361-16F-2 |
|
Material |
PC+ABS |
|||
|
Entry ports |
1 Midspan+2 Cable gland( total 4 ports) |
|||
|
Outlet ports |
16 |
16 |
16 |
16 |
|
Cores |
16 |
16 |
16 |
16 |
|
Color |
Grey black or white(optional) |
|||
|
Ip degree |
65 |
65 |
65 |
65 |
|
Adapter installation |
16 (SC LC ) |
/ |
/ |
16 (SC LC ) |
|
PLC installation |
support(1x8 or 1x16) |
support(1x8 or 1x16) |
support(1x8 or 1x16) |
support(1x8 or 1x16) |
|
PLC type |
mini type |
insert type |
mini type |
mini type |
|
inlet cable dimension |
midspan(13.5mm)/cable gland(12mm) |
|||
|
outlet cable |
2x3 drop cable & <4.5 round cable |
|||
|
Installation method |
wall mounting or pole mounting |
|||
|
Dimension |
287x172x102mm |
|||
|
No. of splice tray |
/ |
/ |
4 |
4 |
Specification
|
Environmental Requirement |
Main Technical Data |
Capacity |
||
|
Working temperature |
-40℃~+75℃ |
Insertion loss |
≤0.2dB |
1*16PLC splitter, 16 SC/LC adaptors |
|
Relative humidity |
≤85℃(+30℃) |
UPC return loss |
≥50dB |
|
|
Atmospheric pressure |
70KPa~106KPa |
APC return loss |
≥60dB |
|
Features
Features:
1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Application:
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks
