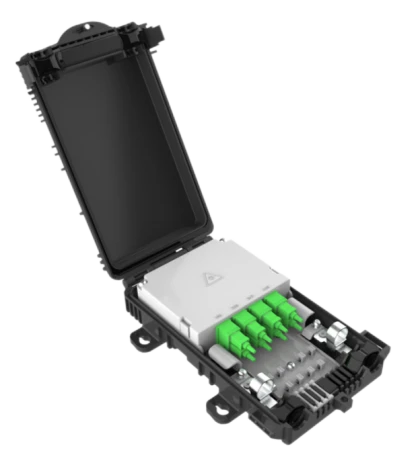

8 Ports Fiber Terminal Box

8 Ports Fiber Terminal Box

Fiber Optic Junction Box is designed for aerial stand-mount FTTH drop location, where drop cables are spliced to distribution cables. Steel tube type splitter can be built-in. Good performance is useful in harsh environment.

8 Ports Fiber Terminal Box is used for the terminal point of introducing fiber optic cables and jumper connections in FTTH indoor applications. It integrates fiber splicing, termination, storage and fiber optic cable connection in a sturdy protective box.
It is designed for indoor use and is suitable for direct or branch connection of optical cables; suitable for fiber optic wiring and termination in various fiber optic systems; convenient for wall mounting; the removable adapter panel is suitable for FC/sC/ST/2LC.

- FTTH product, which is special writing terminal box, get many new and practical national patent.
- Suitable for the mirco, insert and cassette splitter installation
- Fit one 1:8 or two 1:4 mirco optical splitter
- Fit optical writing of cable diameter below 16mm and 8 shape or diameter 3 rubber-insulated fiber cable of protection splicing.

- IP65 for outdoor application, can be wall mountable or pole mountable.

- PC+ABS material used ensures the body strong and light..

- Wet-proof, water-proof, dust-proof, anti-aging

- Easy installations: Ready for wall mount – installation kits provided

- Space saving: Double-layer design for easier installation and maintenances

- Easy installations: Ready for wall mount – installation kits provided.

- Protection level up to IP55

- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.…

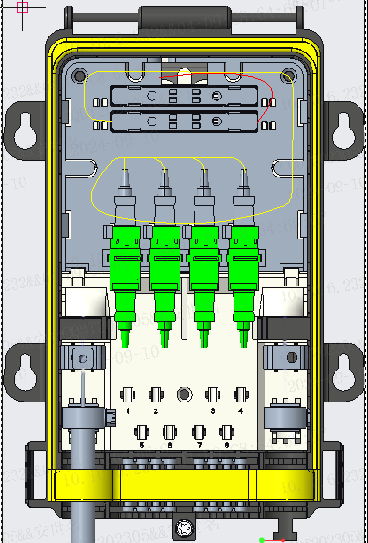

The dimension diagram:(mm)

Accessories List
