Description
Technical Parameters

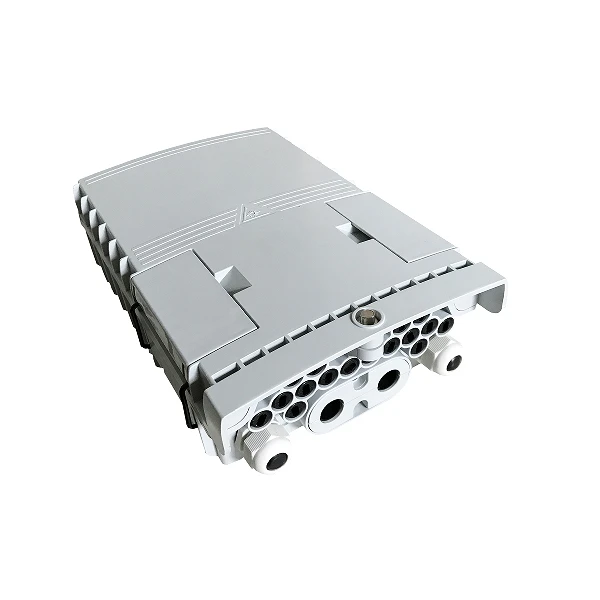

IP65 16 Core Fiber Optic NAP Box
Features and Specification
The equipment is widely used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building. Can be used indoor or outdoor.
| Material | ABS or PC+ABS | IP Rate | IP65 |
| Demension (W*H*D) | 274*175*82mm | Weight | 1.2kg |
| Max Splicing (Core) | 16 cores | Working temperature | -40℃~+85℃ |
| Relative humidity | ≤85%(+30℃) | Atmospheric pressure | 70KPa~106 KPa |
| Insertion loss | ≤0.2dB | UPC return loss | ≥50 dB |
| APC return loss | ≥60 dB | Life of insertion and extraction | >1000 times |
