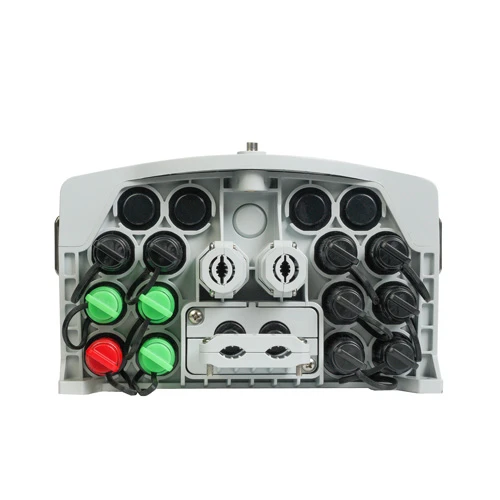

16 Port FTTx Pre-connectorized NAP Box
16 Port FTTx Pre-connectorized NAP Box widely used as a termination point for the feeder cable to connect with the drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building. It can be used indoor or outdoor.
General Information
Features:
Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, and distribution all in one.
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Box can be installed by the way of wall-mounted, poled-mounted, aerial-mounted, suitable for both indoor and outdoor use.
|
Splice Tray |
4pcs (12fiber/tray) |
|||
|
Input cable diameter(mm) |
Uncut 8-14mm |
|||
|
Branch hole cable diameter(mm) |
16mm |
|||
|
Color |
Grey |
|||
|
Splitter |
2piece 1x8 Mini Splitter |
|||
|
Waterproof Adapter |
16pcs |
|||
|
Working temperature |
-40℃～+85℃ |
|||
|
IP Rated |
IP65 |
|||
|
Relative humidity |
≤85%(+30℃) |
|||
Details
