Wall Mounted Fiber Terminal Box
Description
Wall Mounted Fiber Terminal Box can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.
Fiber Termination Box Wall Mount 4/8 Port Mini ODF provide a comprehensive solution for fiber management. We offer both wall-mounted and rack-mounted options to suit different installation requirements. These panels are designed to securely fix and manage fiber optic cables, while also providing protection for the cables inside the box. With our fiber optic patch panels, you can ensure efficient and organized fiber management in your network setup.
Technical Index
|
Model No. |
GP62DW-30 |
Color |
Black |
|
Splice tray |
24 cores |
Protection Level |
IP67 |
|
Material |
PP+GF |
Installation mode |
Wall mounted |
|
Dimension(L*W*D,MM) |
230*156*49 |
Input port |
2 port 6~14mm |
|
Output port |
8 ports for 3mm drop cables |
Adaptor |
SC/APC |
|
Splitter |
PLC 1*8 splitter |
Closure weight |
1~1.5 kg |
|
UV Protection |
1000 hrs |
Useful lifetime |
25 years |

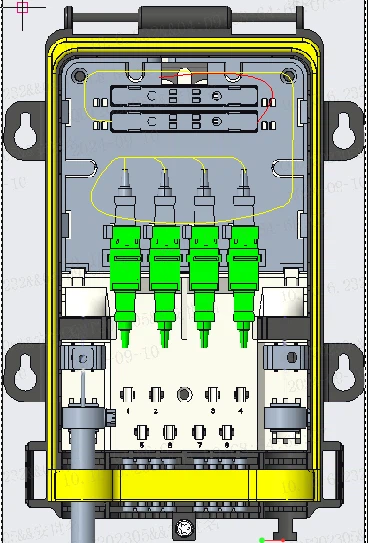

The dimension diagram:(mm)
|
|
|
|
|
Pic#1: Top View |
Pic#2: Side View |
Pic#3: Front View |
Features
1. The body is made of high quality engineering plastic with good strength;
2. The box body adopts page turning type and unique gel sealing structure design, with small volume, complete functions and convenient use;
3. Meet Ф6~14mm fiber cable diameter and 3mm drop cable connection;
4. Suitable for 1:8 mini PLC and support 8pcs SC/APC adapters;
5. Cable compatibility fig. 8 of 10x14mm
6. Fiber storage capacity:2 loose tubes 1.1m
Pictures for reference:
|
|
|
|
Pic#4 |
Pic#5 |
|
|
|
Reliability Specification
|
Item |
Test Method |
Acceptance Condition |
Standard |
|
Impact Test |
Points of impact: 1 Times of per point: 1 Impact energy: 10Nm |
No break and no damage on the box. |
IEC 61753 |
|
Drop Test |
Height: 1m Drop time: 1 |
No changes on the box appearance. |
IEC 61753 |
|
IP67 |
Water immerse: 1m Time of duration : 30min |
No water go inside the enclosure. |
IEC 60529 |
|
Salt Spray Test |
Solution:NaCl:5(±0.1)% PH: 5 Time of duration : 96h |
No rust on metal part appearance. |
IEC 61300-2-26 |
Splitter Specification
|
Splitter Type |
Stainless Steel Tube 1x8 |
|
|
Model No |
PLC-1X8-Steel tude-0.9-SCAPC |
|
|
Dimension(L*W*D,MM) |
60X7X4 |
|
|
Fiber Type |
G657A1 |
|
|
Input Type |
900μm loose tube |
|
|
Output Type |
900μm loose tube |
|
|
Pigtail Length |
Input 0.6m/Output 0.6m |
|
|
Connector Type |
SC/APC |
|
|
Insertion Loss (Max.) |
Typical |
10.3db |
|
Max |
10.7db |
|
|
Uniformity (Max.) |
0.8 db |
|
|
PDL(Max.) |
0.3 db |
|
|
TDL(Max.) |
0.5 db |
|
|
Return Loss |
≥55 db |
|
|
Directivity |
≥55 db |
|
|
Operating & Storage Temperature |
-40～+85 ℃ |
|
Note: All the data above does not include connectors.
APC Connectors: IL add 0.3 dB.
Coupler Specification
|
Coupler Type |
SC-APC |
|
Insertion Loss |
0.3db |
