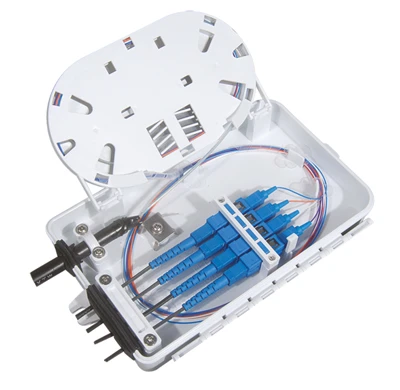

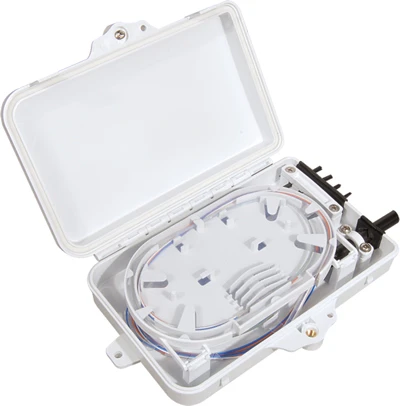

4 Ports FTTH Termination box
Description
Indoor/Outdoor FTTH Fiber Distribution Box, 4 Port Fiber Distribution Box with 4 LC Singlemode pigtails and 2 LC Duplex Singlemode adapters is ideal for demarc termination of fiber optic cable runs in residential or commercial buildings. 5 gasket sealed ports on bottom of enclosure allow for cable entry.
Features and Specification
Max Capacity Cores for SC, 8 cores for LC
Size: 191*120*44mm
Not included: Splitter and connector
IP value :IP65
Materials: PC + ABS
Water-proof design with IP65 Protection level
Integrated with splice cassette and cable management system
Manage fibers in a reasonable fibers radius condition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
1*4 splitter can be installed as an option
4 ports cable entrance for FTTH Drop Cable
Operate temperature: -5℃+40℃
Relative humidity: ≤90% (+30℃)
Atmospheric pressure: 70Kpa-106Kpa
Storage Temperature: -40℃+70℃
Optical parameters:
Insertion loss≤0.3dB;
Excess loss: ≤0.2B;
Return loss≥50dB
